Data Link Communications Connector End Views (Data Link Connector OBD 2)

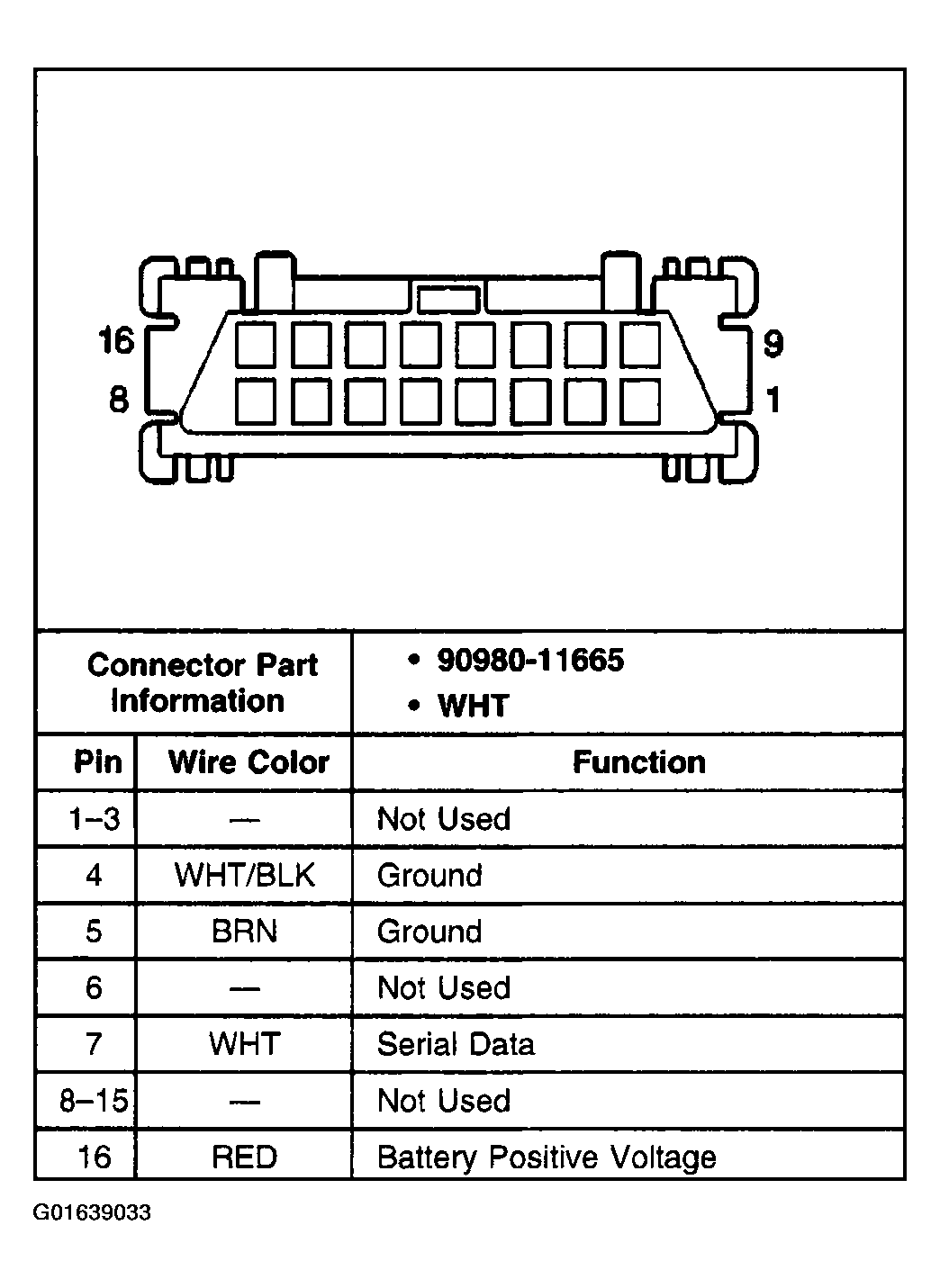

Fig 1: DLC (OBD 2) Connector End View
G01639033Courtesy of GENERAL MOTORS CORP.
