Rear Compartment Lid Release Switch Connector End View

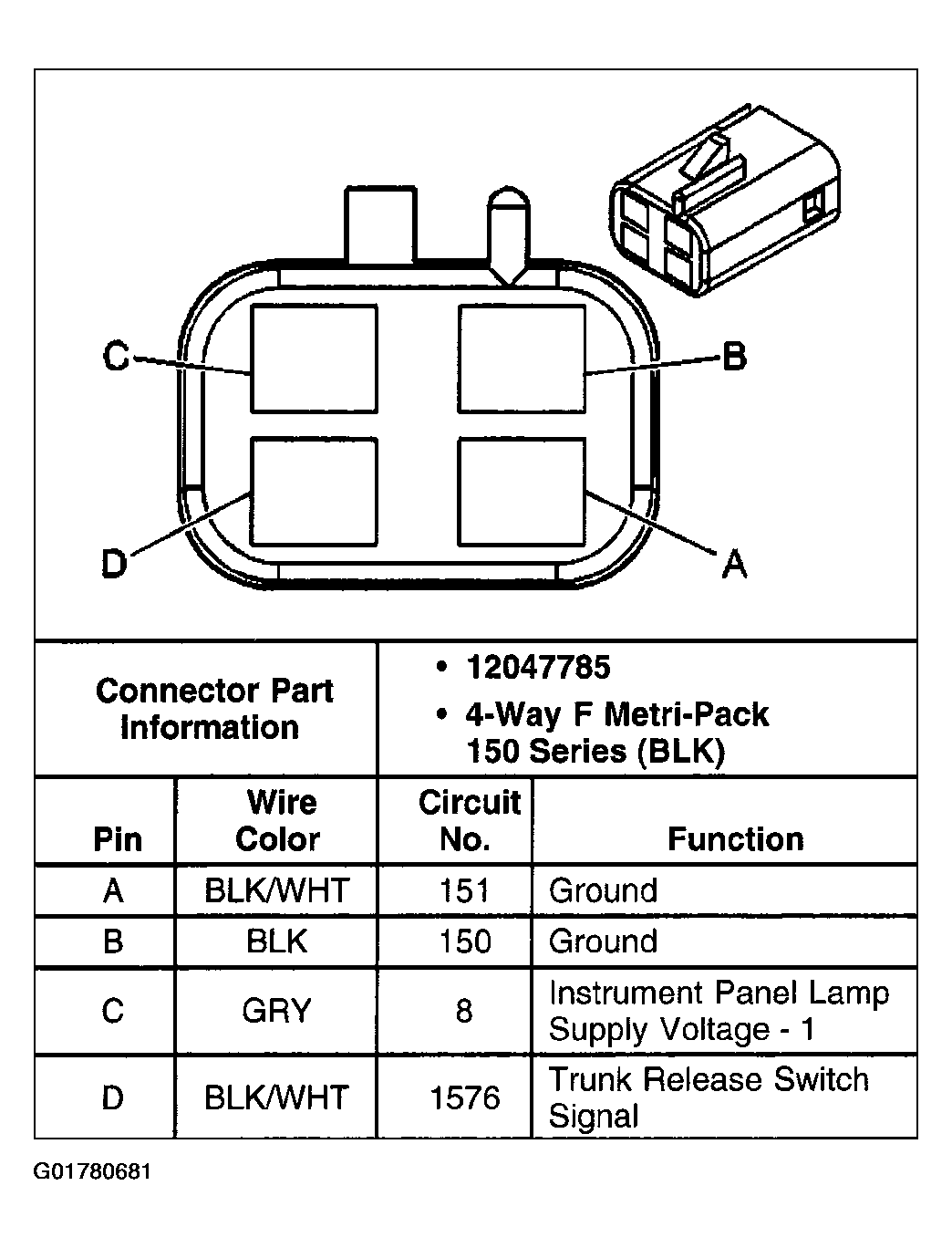

Fig 1: Rear Compartment Lid Release Switch

G01780681

Courtesy of GENERAL MOTORS CORP.
