Removal Procedure

  1. Remove the spring clip by inserting the J 9886-01  between the window regulator handle and the door window regulator handle bearing plate.

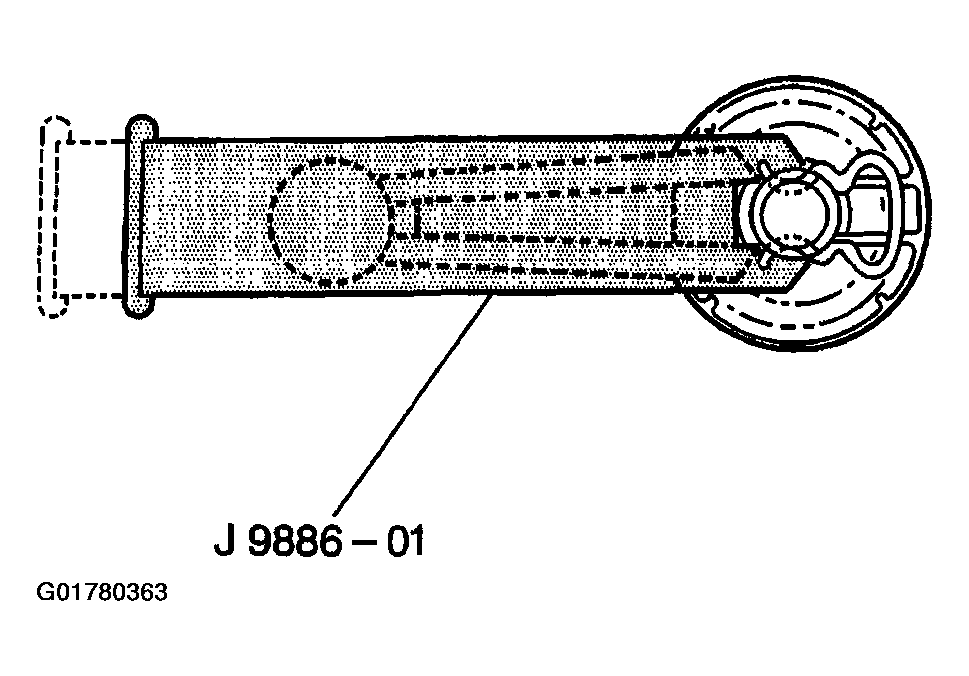

    Fig 1: Removing Window Regulator Handle Spring Clip
    G01780363Courtesy of GENERAL MOTORS CORP.
  2. Pull the door window regulator handle (2) outward in order to remove the handle.
  3. Remove the door window regulator handle bearing plate (1).

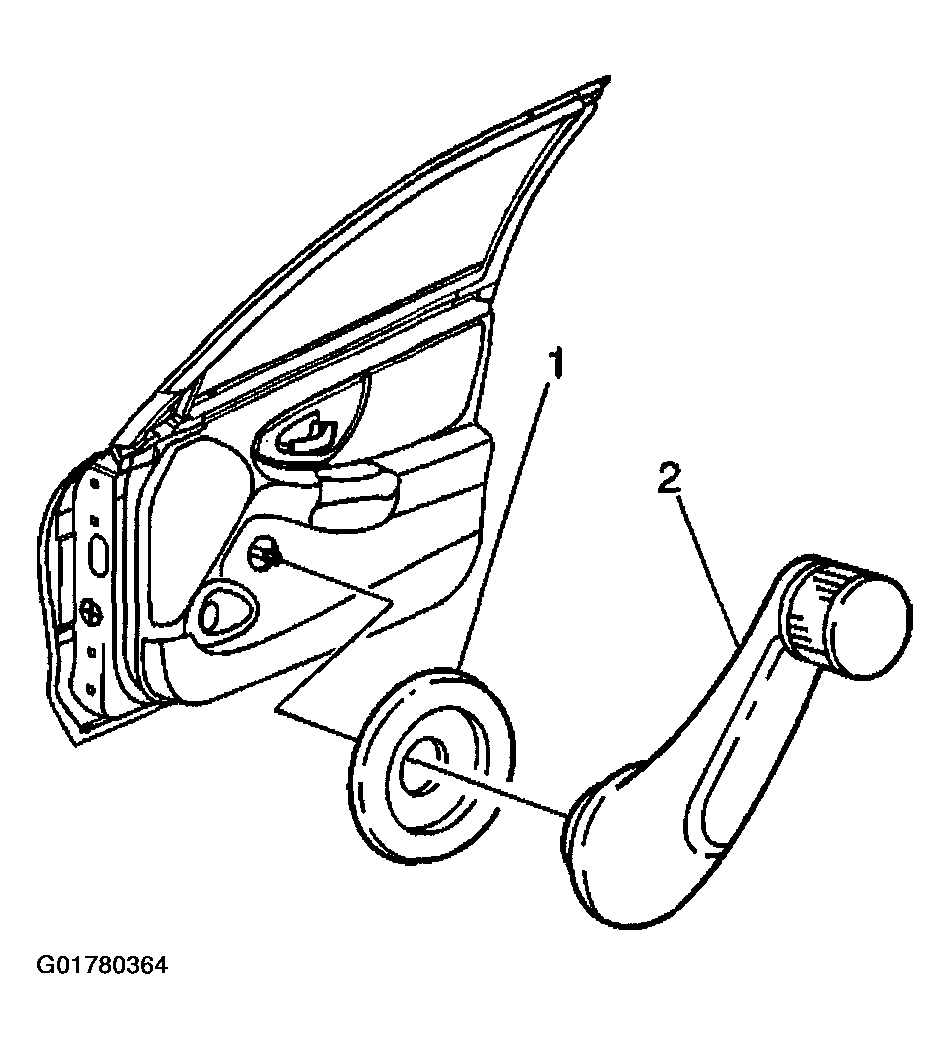

    Fig 2: Removing Door Window Regulator Handle
    G01780364Courtesy of GENERAL MOTORS CORP.
