Removal Procedure

  1. Grasp the mirror face firmly and pull it from the mirror body.

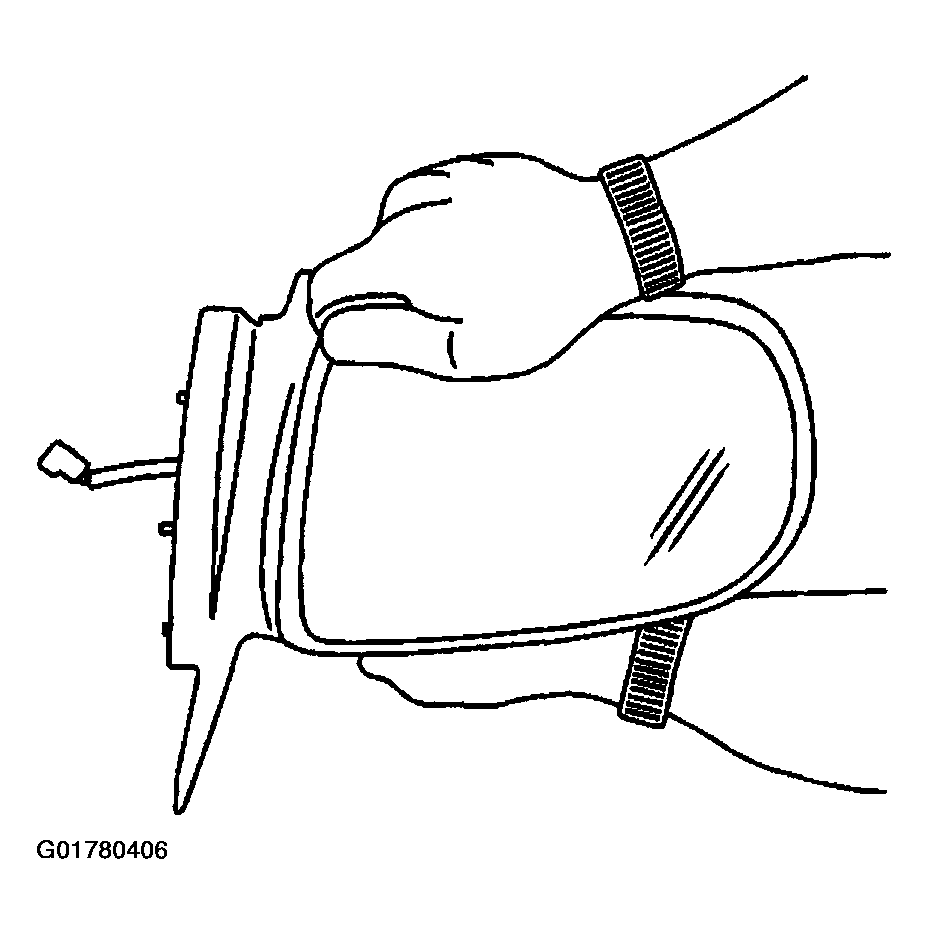

    Fig 1: Pulling Mirror Face From Mirror Body
    G01780406Courtesy of GENERAL MOTORS CORP.
  2. Remove the 2 jackscrews from the back of the mirror case
    • Bend the 2 jackscrews over.
    • Press down on the side of the jackscrew popping the screw from the mirror glass case.
    • Save the jackscrews for reinstallation to the mirror motor.
    Fig 2: Removing Mirror Case Jackscrews
    G01780407Courtesy of GENERAL MOTORS CORP.
