Courtesy/Reading Lamp (Left) Connector End View

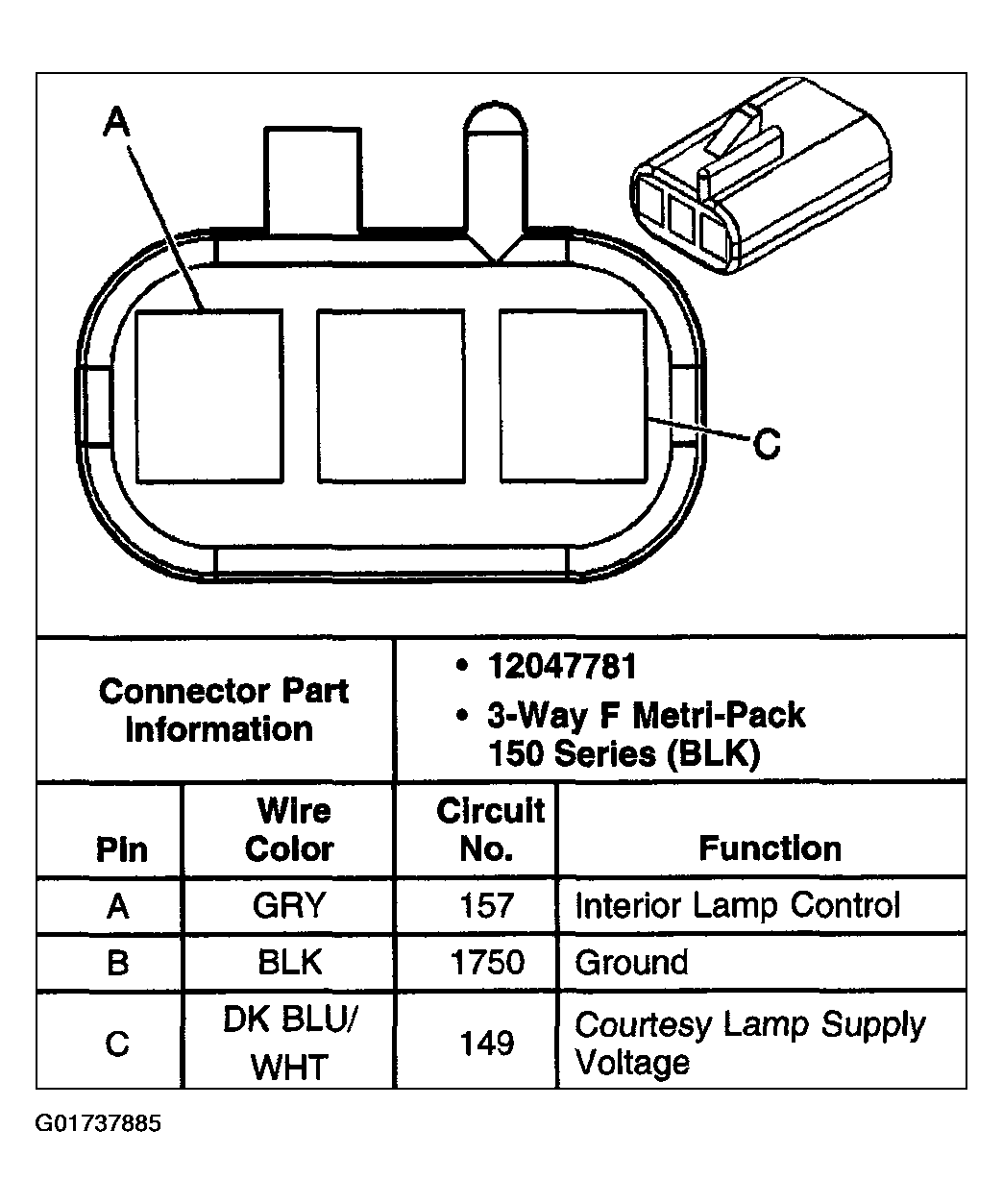

Fig 1: Courtesy/Reading Lamp (Left)

G01737885

Courtesy of GENERAL MOTORS CORP.
