Multifunction Alarm Module Connector End View - C1

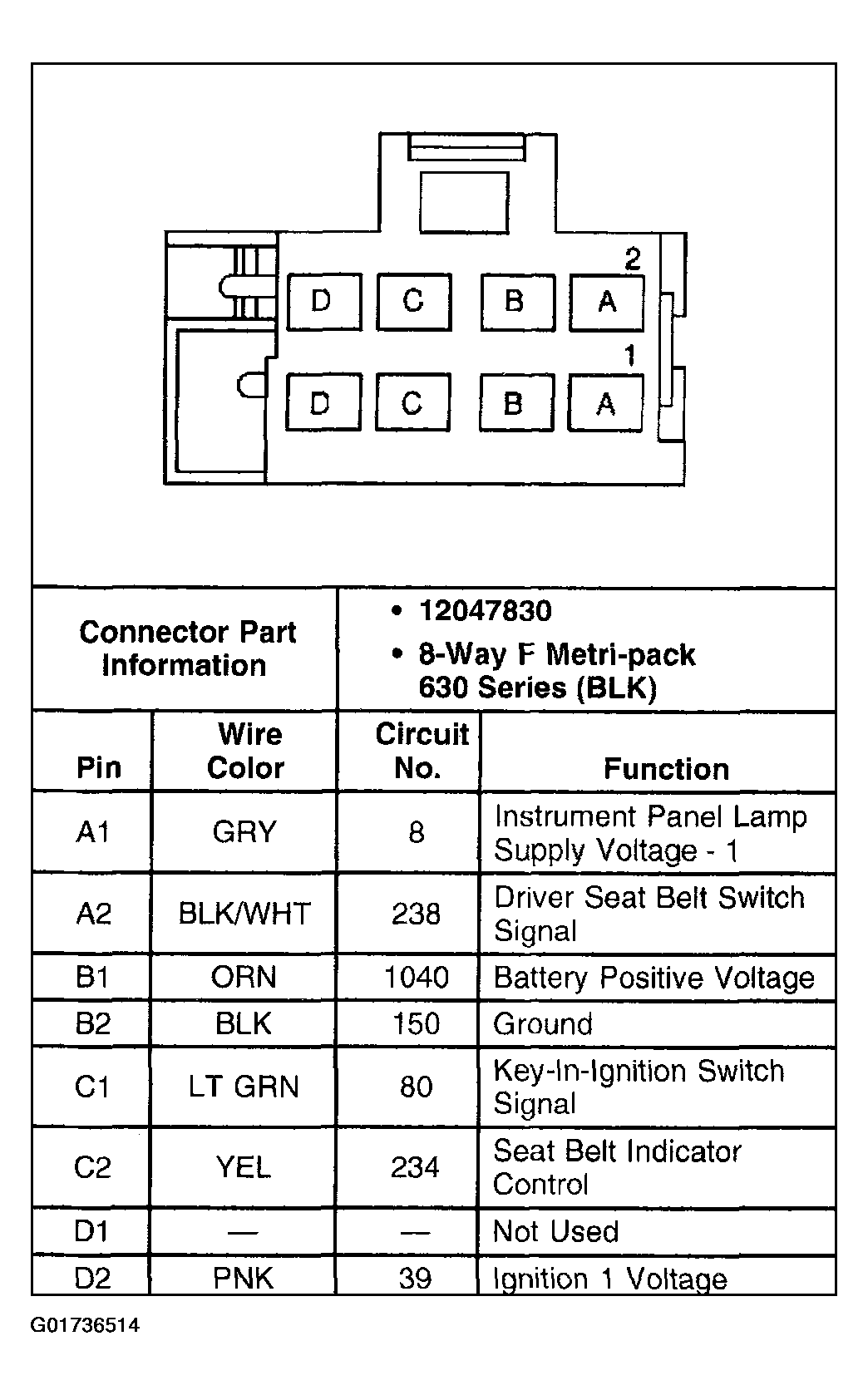

Fig 1: Multifunction Alarm Module - C1

G01736514

Courtesy of GENERAL MOTORS CORP.
