Wheel Alignment Specifications

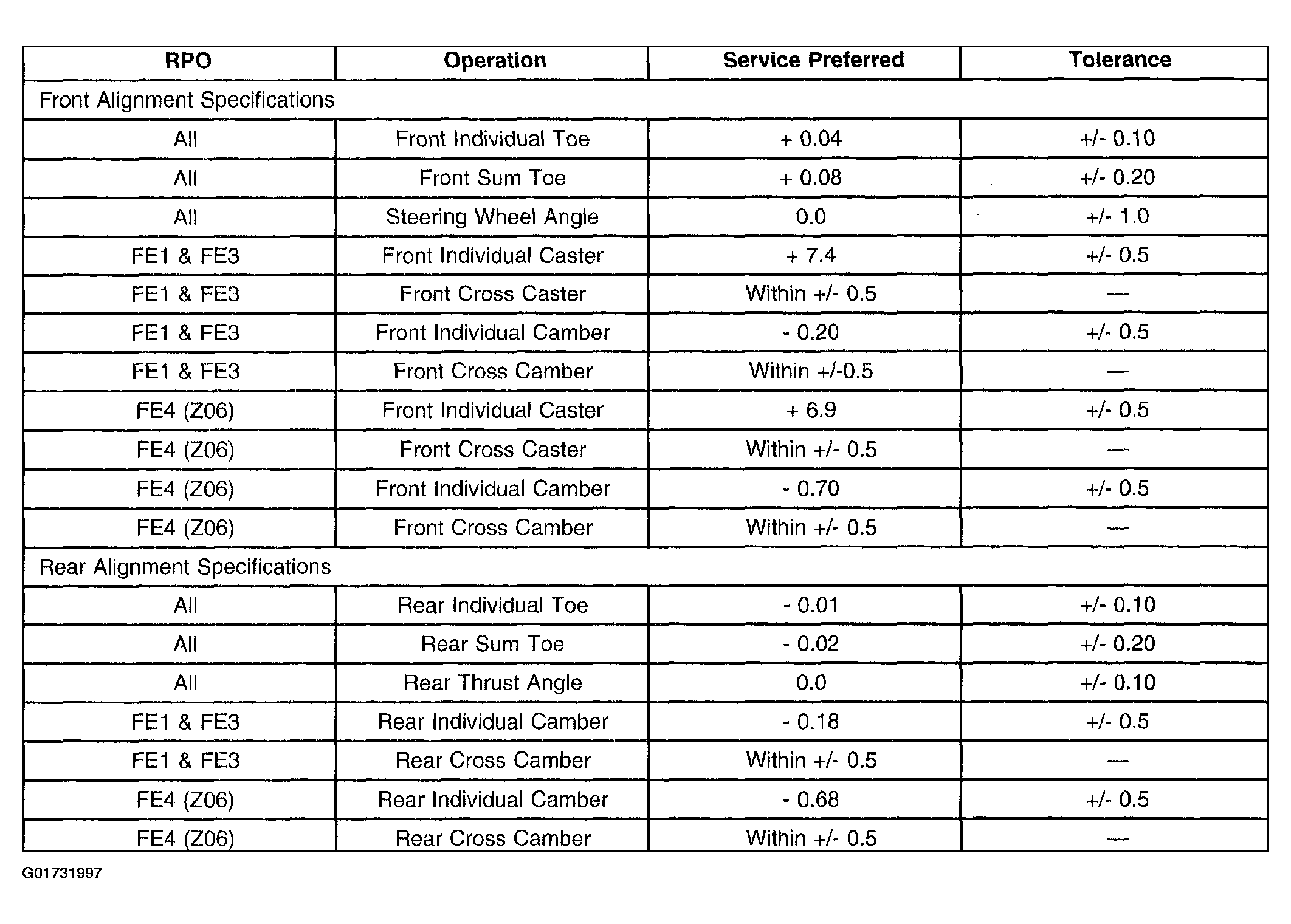

Fig 1: Wheel Alignment Specifications

G01731997

Courtesy of GENERAL MOTORS CORP.
