Installation Procedure

  1. Install the catalytic converter heat shield.
  2. Install new catalytic converter heat shield rivets.
  3. Install the catalytic converter. Refer to Catalytic Converter Replacement .

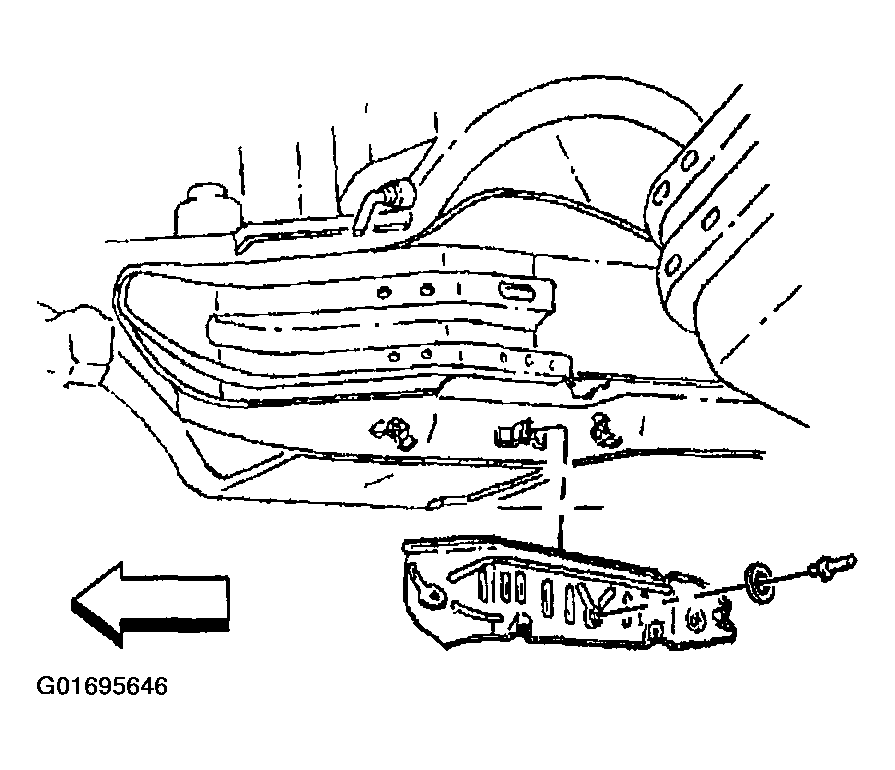

    Fig 1: Installing Catalytic Converter Heat Shield Rivets
    G01695646Courtesy of GENERAL MOTORS CORP.
