Engine Oil Pressure (EOP) Sensor Connector End View

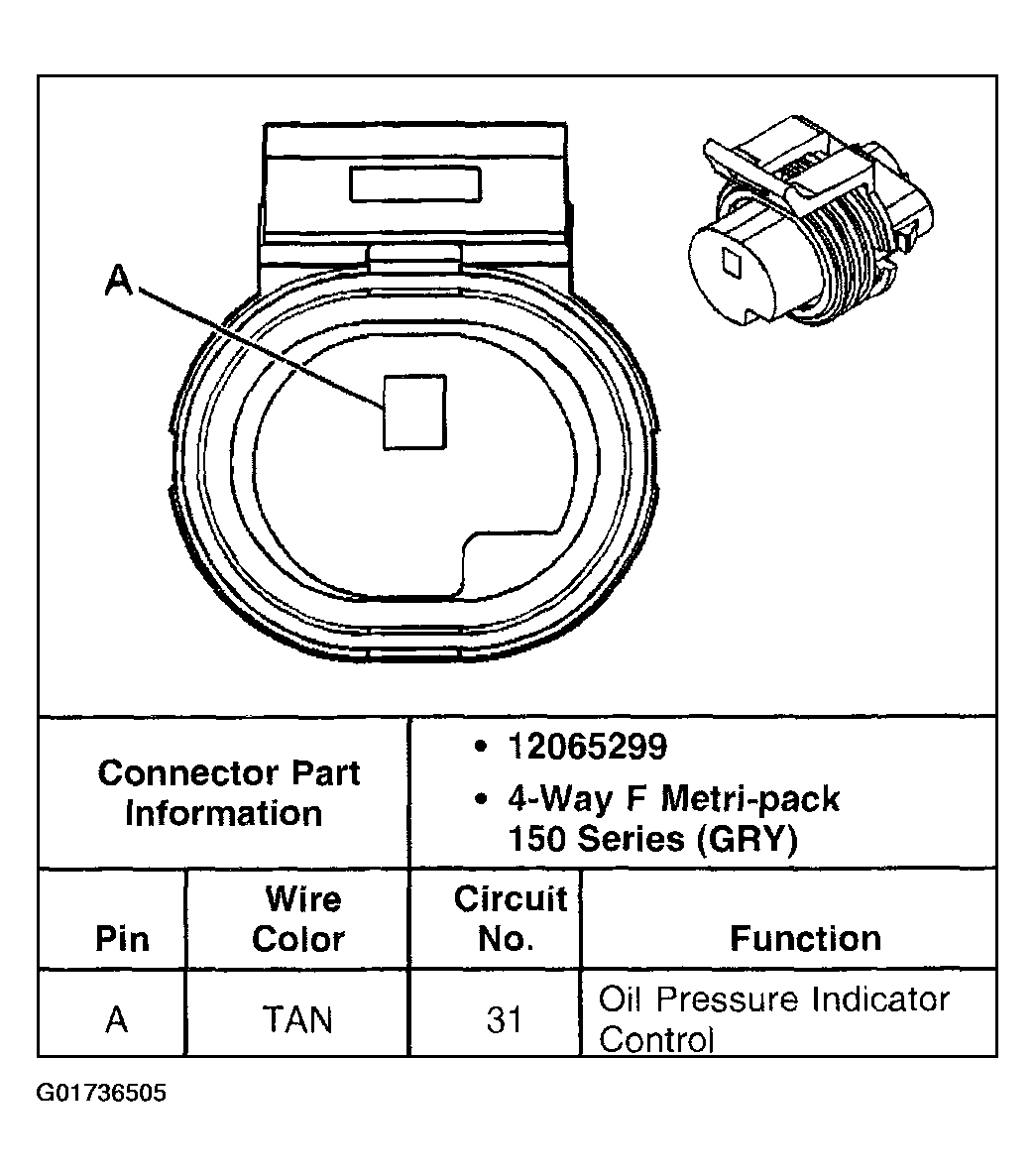

Fig 1: Engine Oil Pressure (EOP) Sensor

G01736505

Courtesy of GENERAL MOTORS CORP.
