Connector Identification

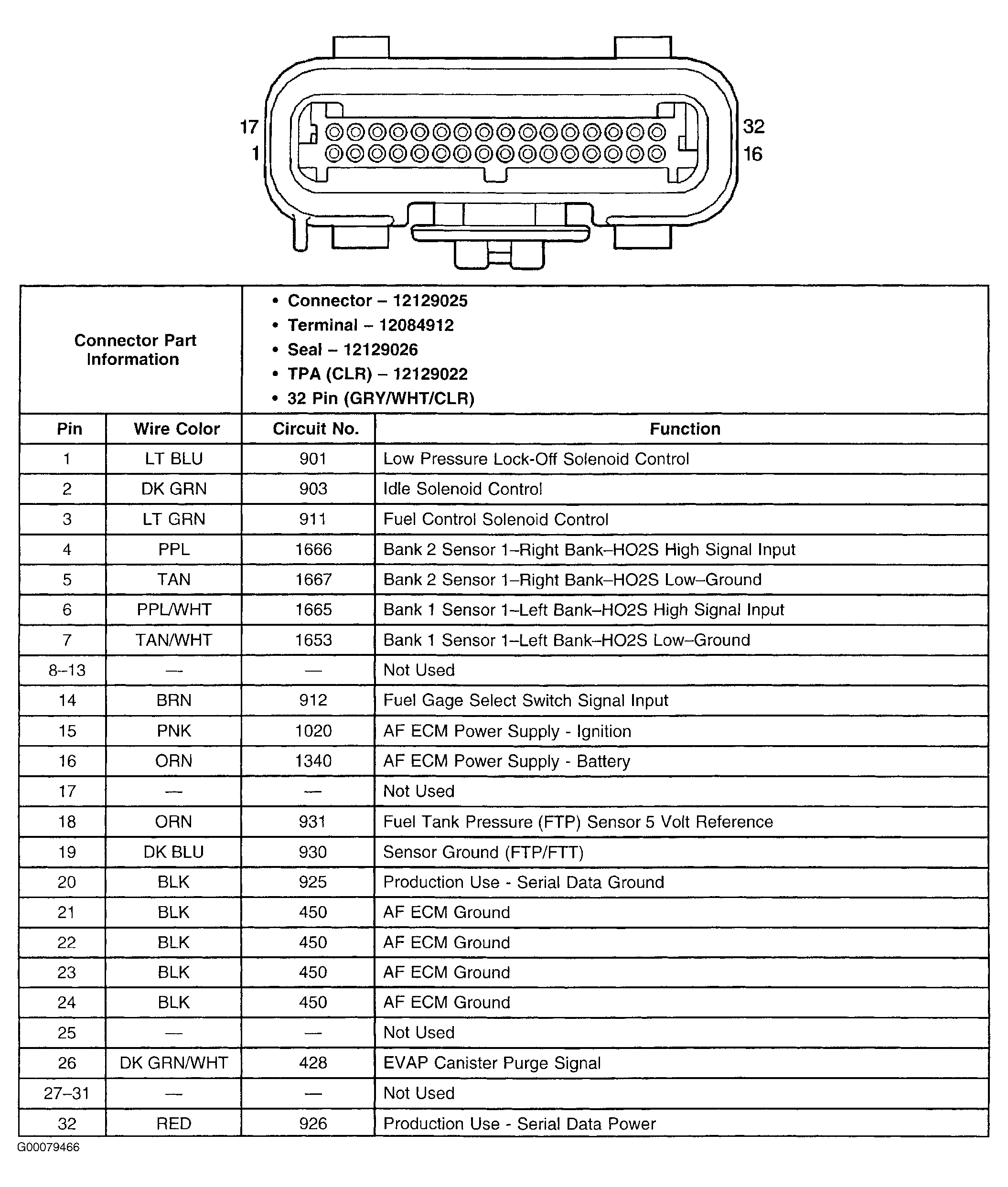

Fig 1: Identifying Alternative Fuels Engine Control Module Connector C001 Terminals
G00079466Courtesy of GENERAL MOTORS CORP.

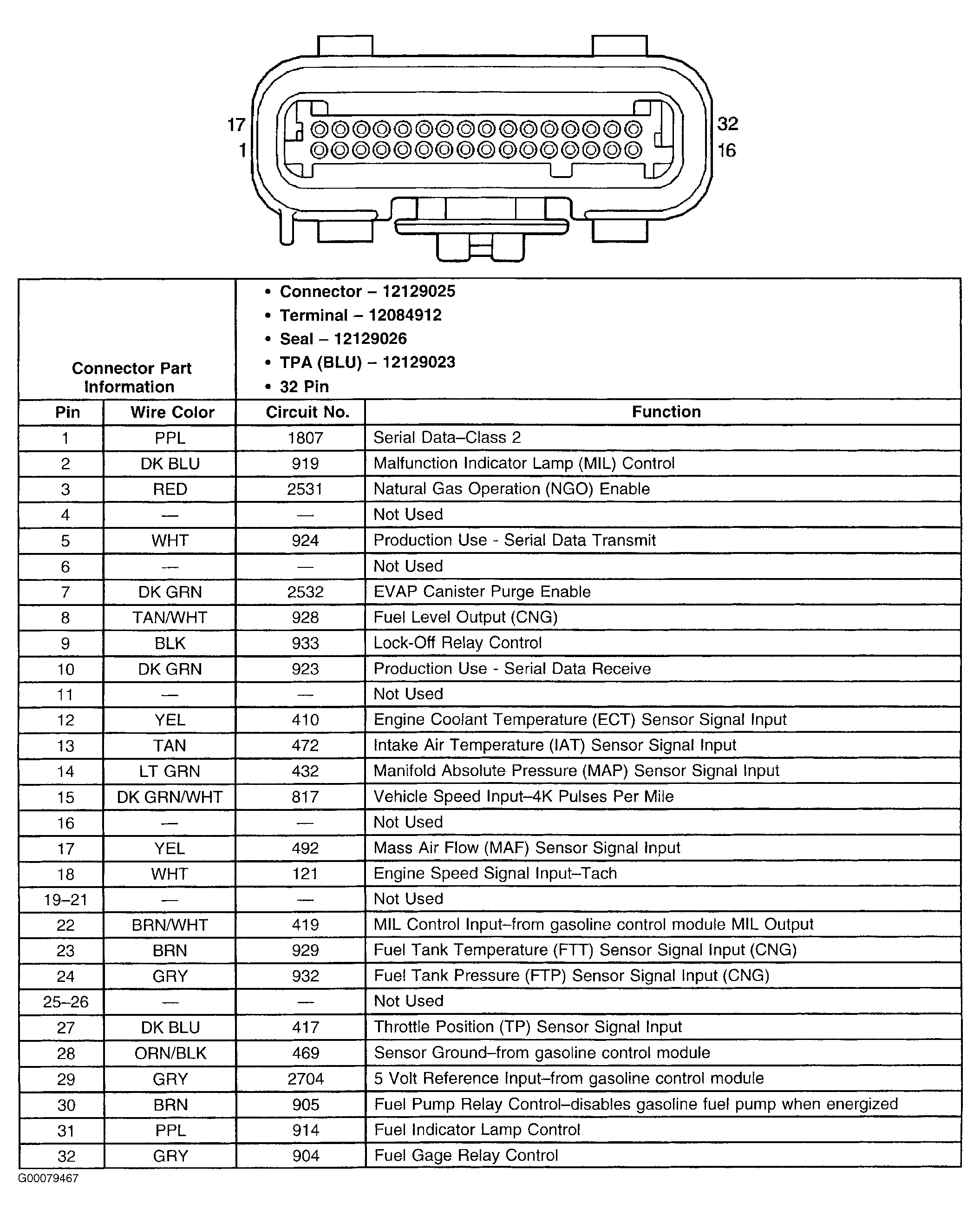

Fig 2: Identifying Alternative Fuels Engine Control Module Connector C002 Terminals
G00079467Courtesy of GENERAL MOTORS CORP.
Fig 3: Identifying CKP Sensor Connector Terminals
G00140509Courtesy of GENERAL MOTORS CORP.
Fig 4: Identifying DLC Terminals
G00140502Courtesy of GENERAL MOTORS CORP.
Fig 5: Identifying ECT Sensor Connector Terminals
G00140510Courtesy of GENERAL MOTORS CORP.

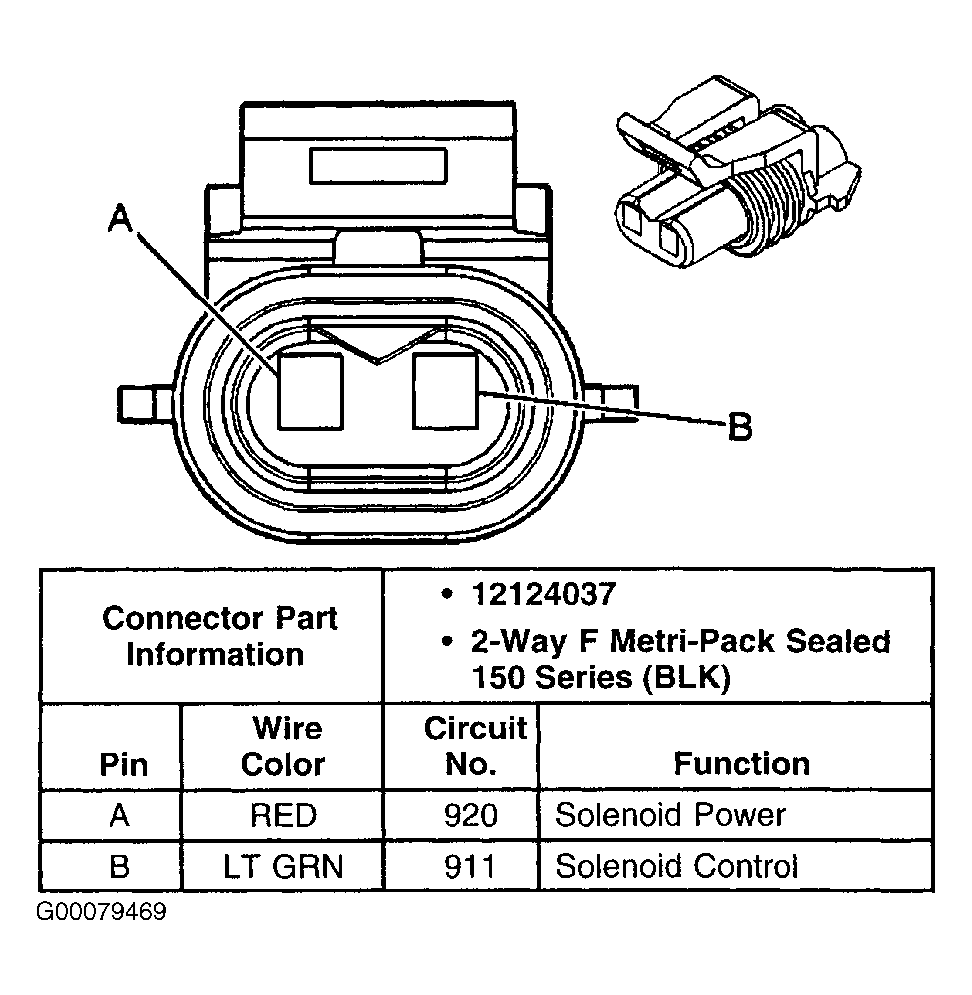

Fig 6: Identifying Fuel Control Solenoid Connector C005 Terminals
G00079469Courtesy of GENERAL MOTORS CORP.

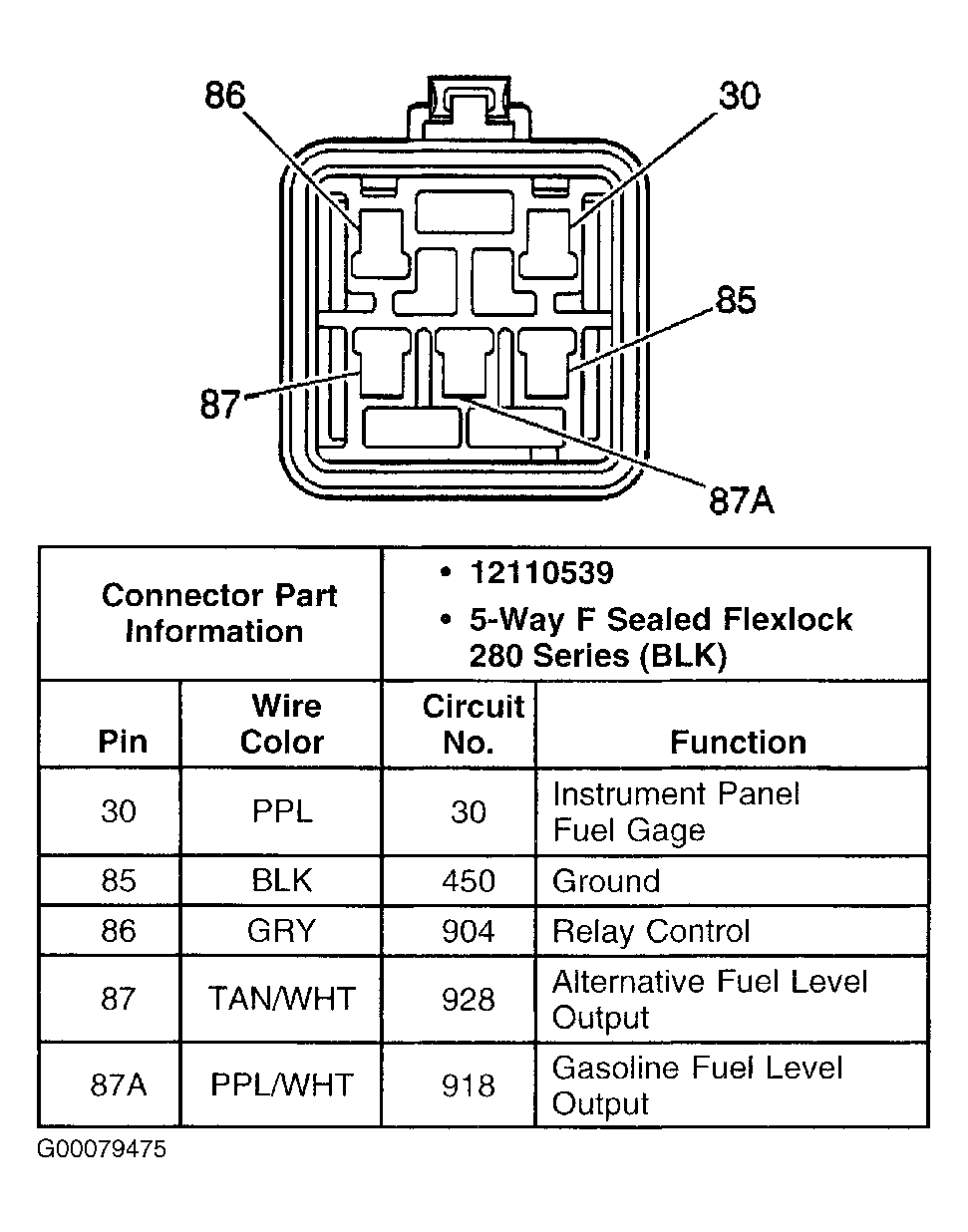

Fig 7: Identifying Fuel Gauge Relay Connector C011 Terminals
G00079475Courtesy of GENERAL MOTORS CORP.

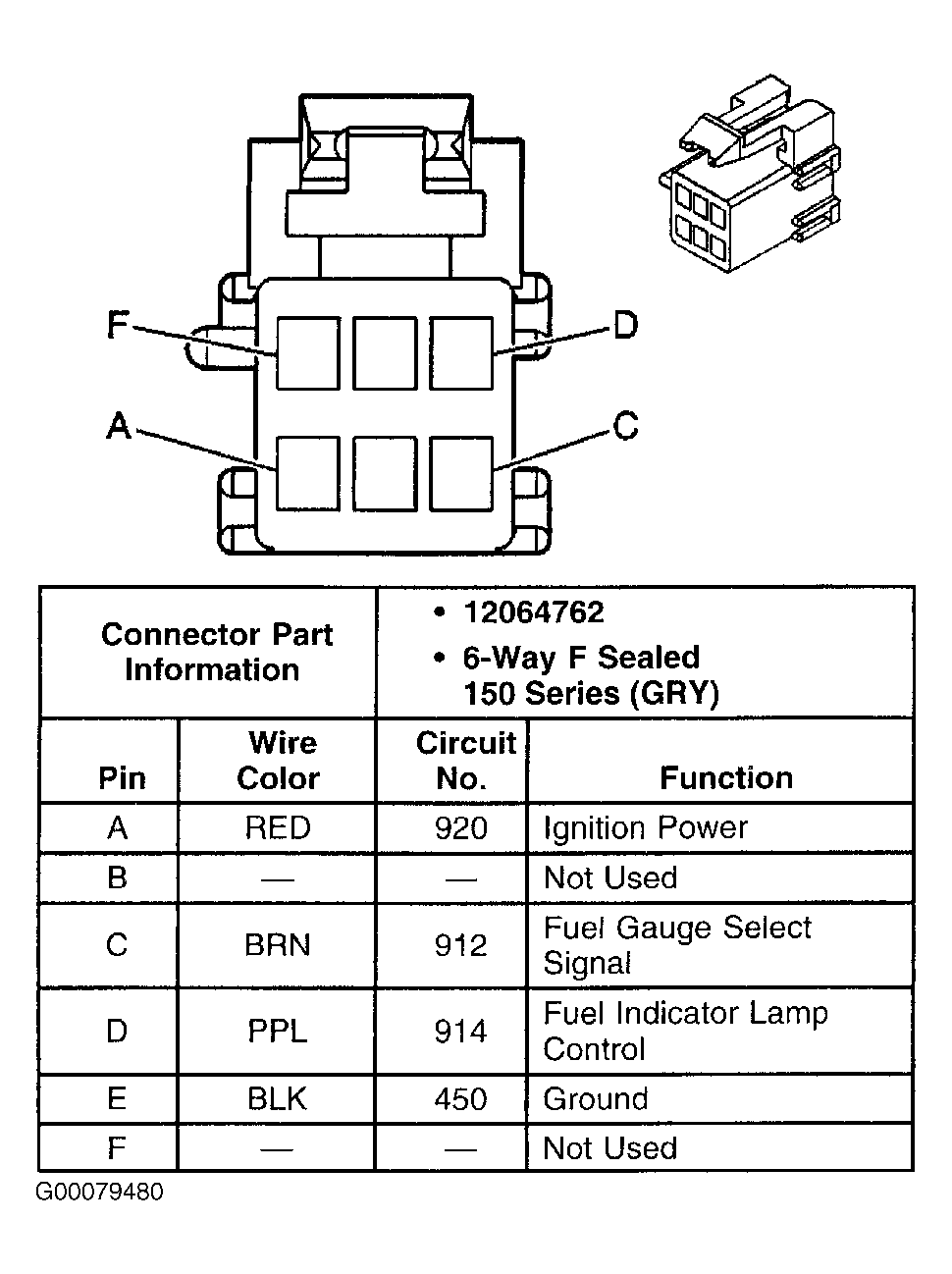

Fig 8: Identifying Fuel Gauge Select Switch Connector C016 Terminals
G00079480Courtesy of GENERAL MOTORS CORP.

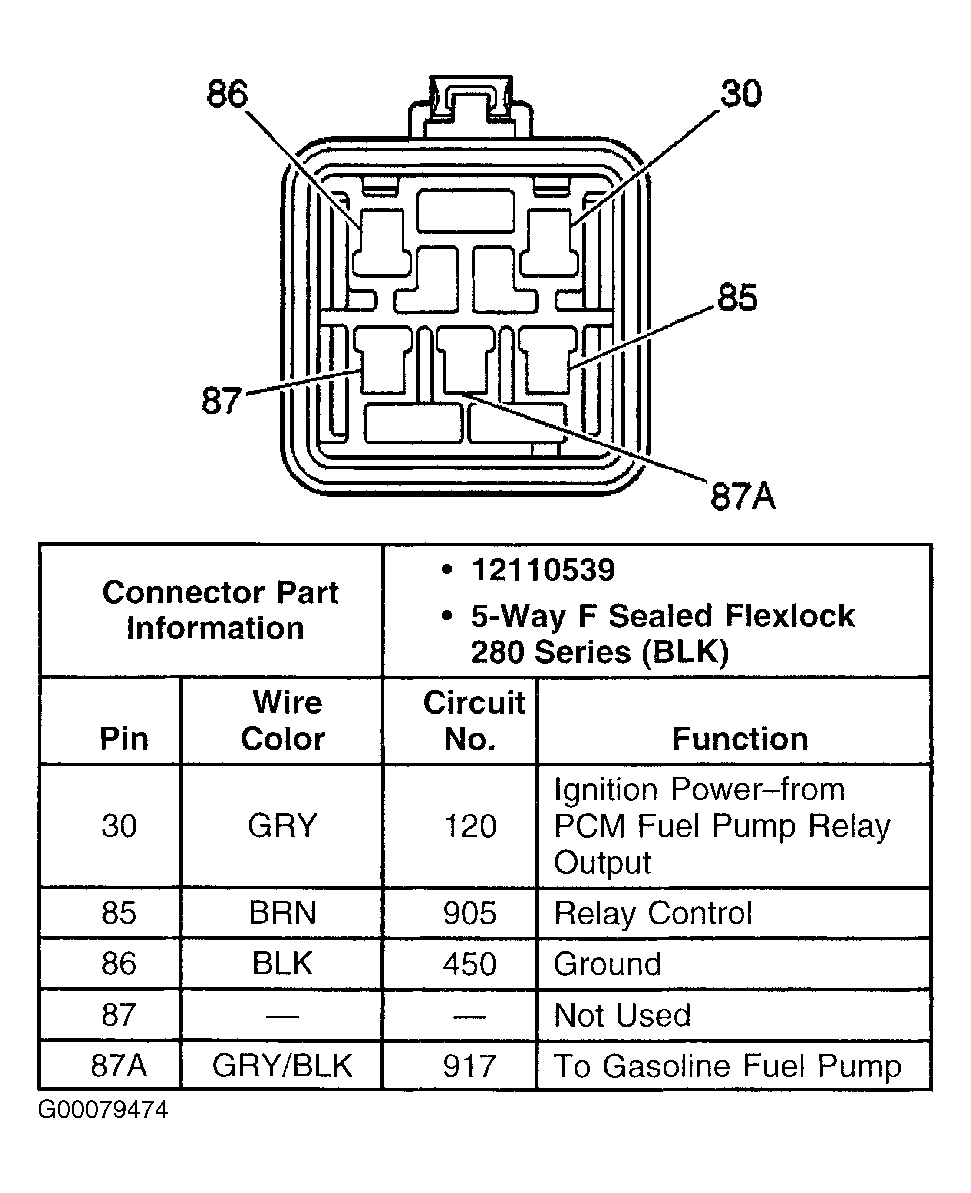

Fig 9: Identifying Fuel Pump Relay Connector C010 Terminals
G00079474Courtesy of GENERAL MOTORS CORP.

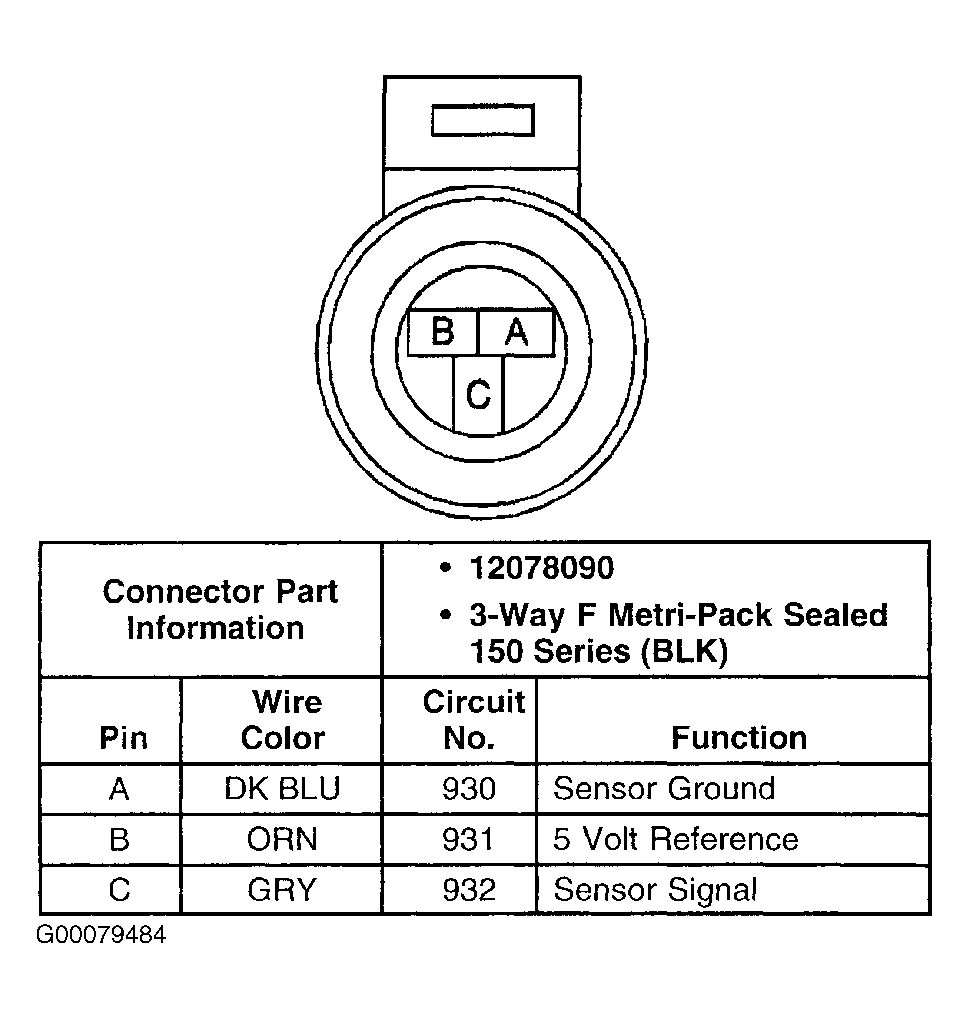

Fig 10: Identifying Fuel Tank Pressure Sensor Connector C021 Terminals
G00079484Courtesy of GENERAL MOTORS CORP.

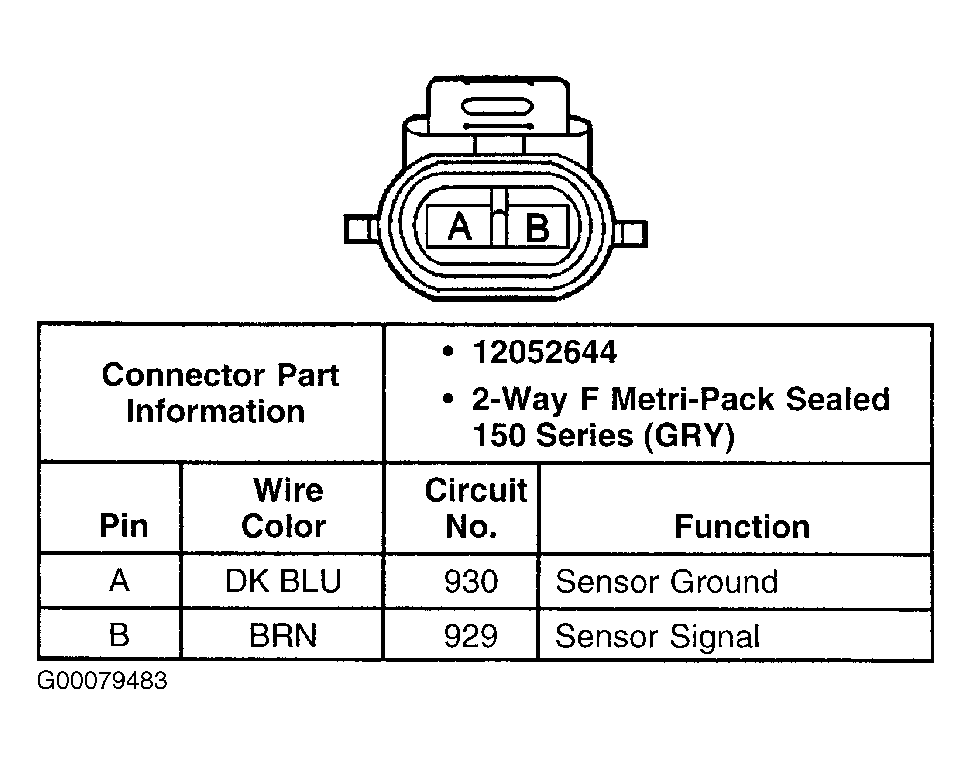

Fig 11: Identifying Fuel Tank Temperature Sensor Connector C020 Terminals
G00079483Courtesy of GENERAL MOTORS CORP.

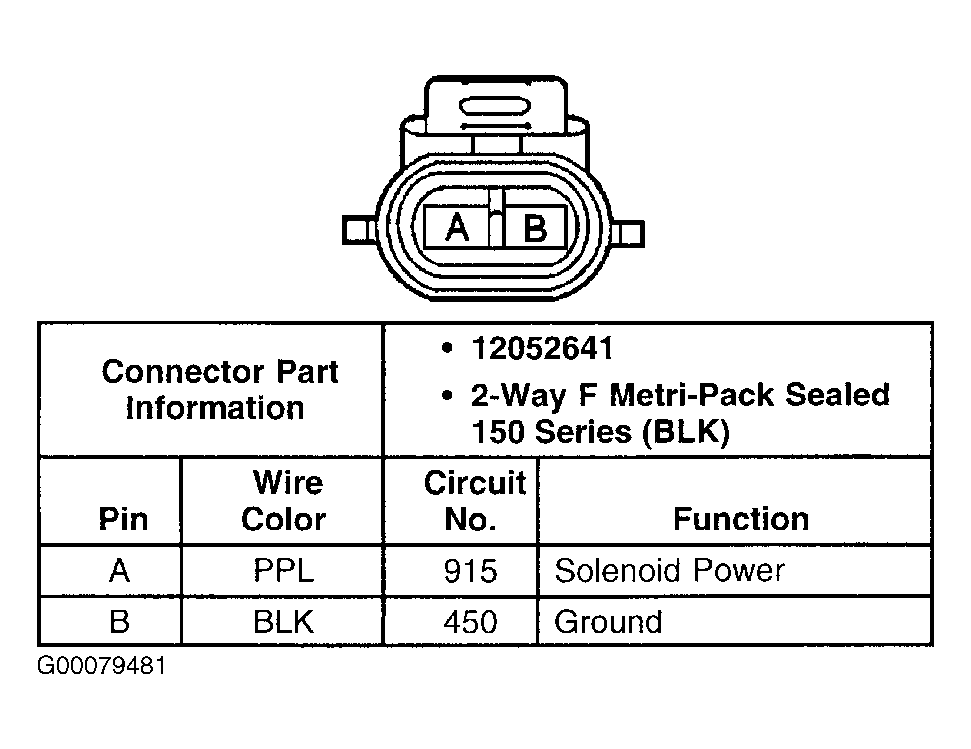

Fig 12: Identifying High Pressure Lock-Off Connector C018 & C019 Terminals
G00079481Courtesy of GENERAL MOTORS CORP.
Fig 13: Identifying HO2S Bank 1 Sensor 1 Connector Terminals
G00140517Courtesy of GENERAL MOTORS CORP.
Fig 14: Identifying HO2S Bank 2 Sensor 1 Connector Terminals
G00140518Courtesy of GENERAL MOTORS CORP.

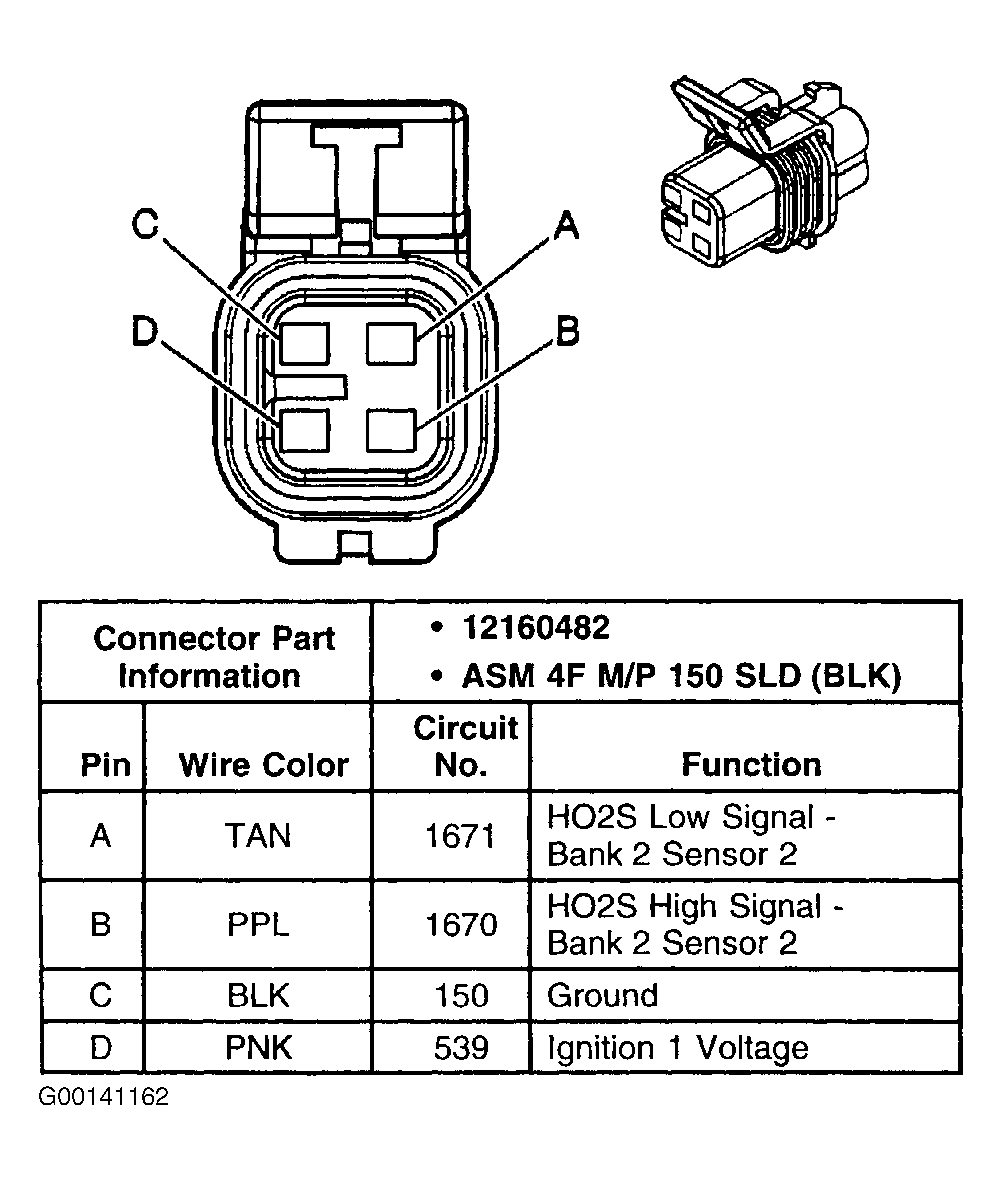

Fig 15: Identifying HO2S Bank 2 Sensor 2 Connector Terminals
G00141162Courtesy of GENERAL MOTORS CORP.
Fig 16: Identifying IAT Sensor Connector Terminals
G00140523Courtesy of GENERAL MOTORS CORP.

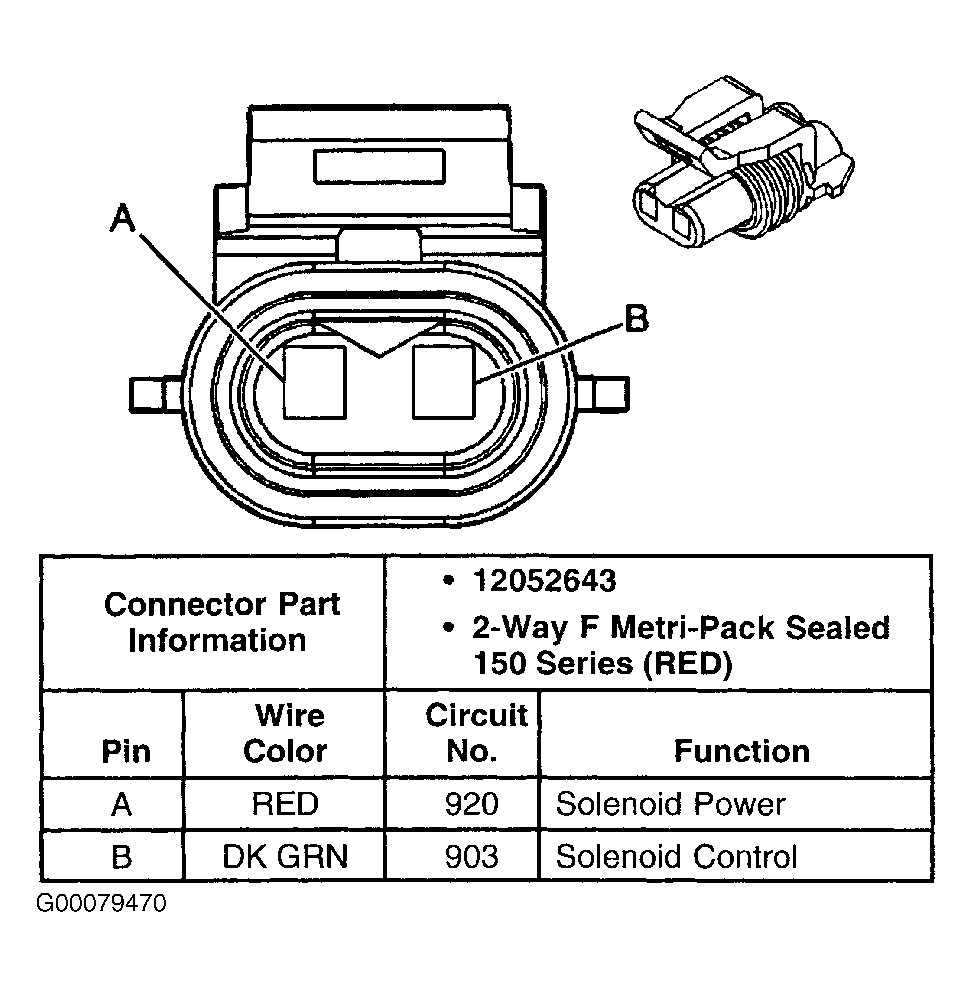

Fig 17: Identifying Idle Control Solenoid Connector C006 Terminals
G00079470Courtesy of GENERAL MOTORS CORP.

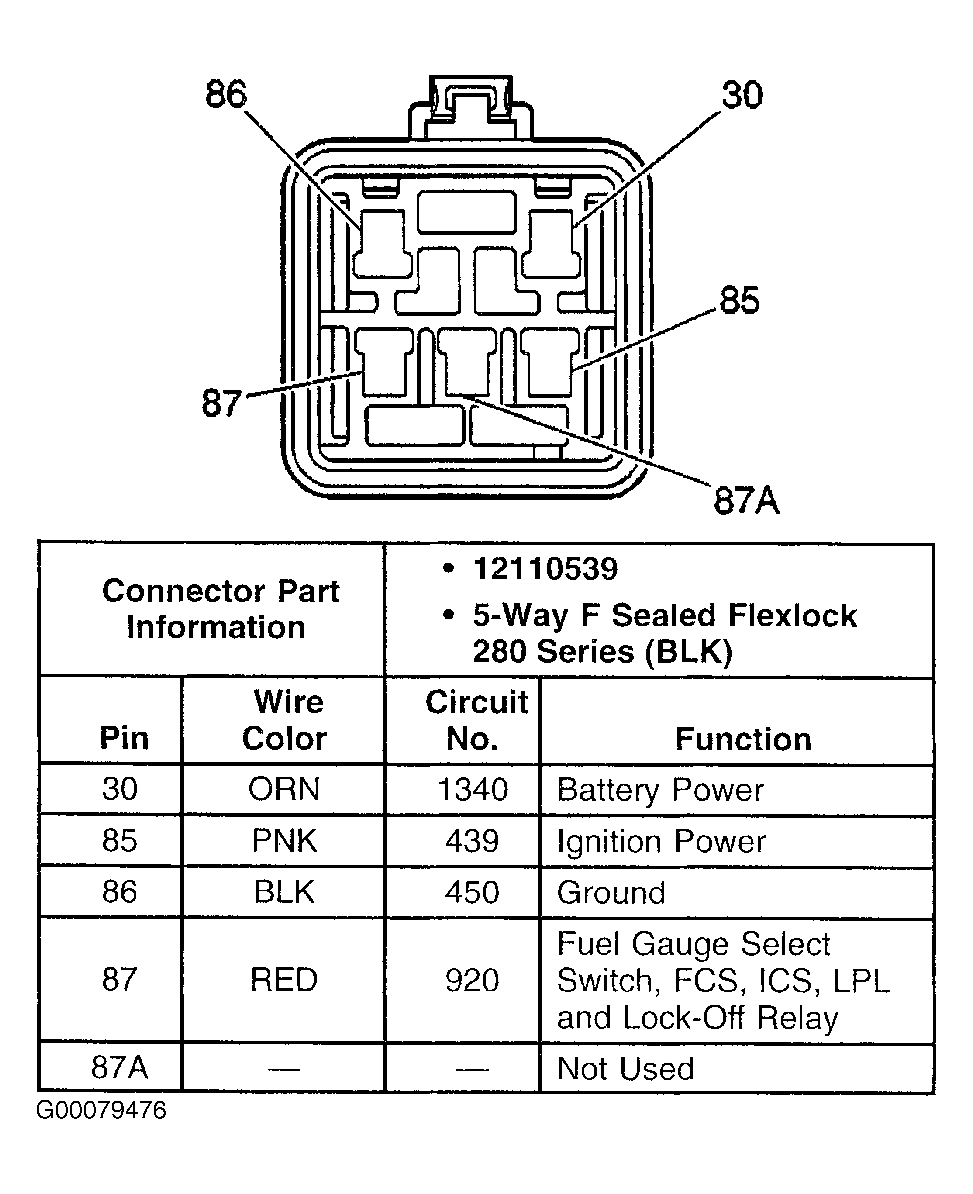

Fig 18: Identifying Ignition Relay Connector C012 Terminals
G00079476Courtesy of GENERAL MOTORS CORP.

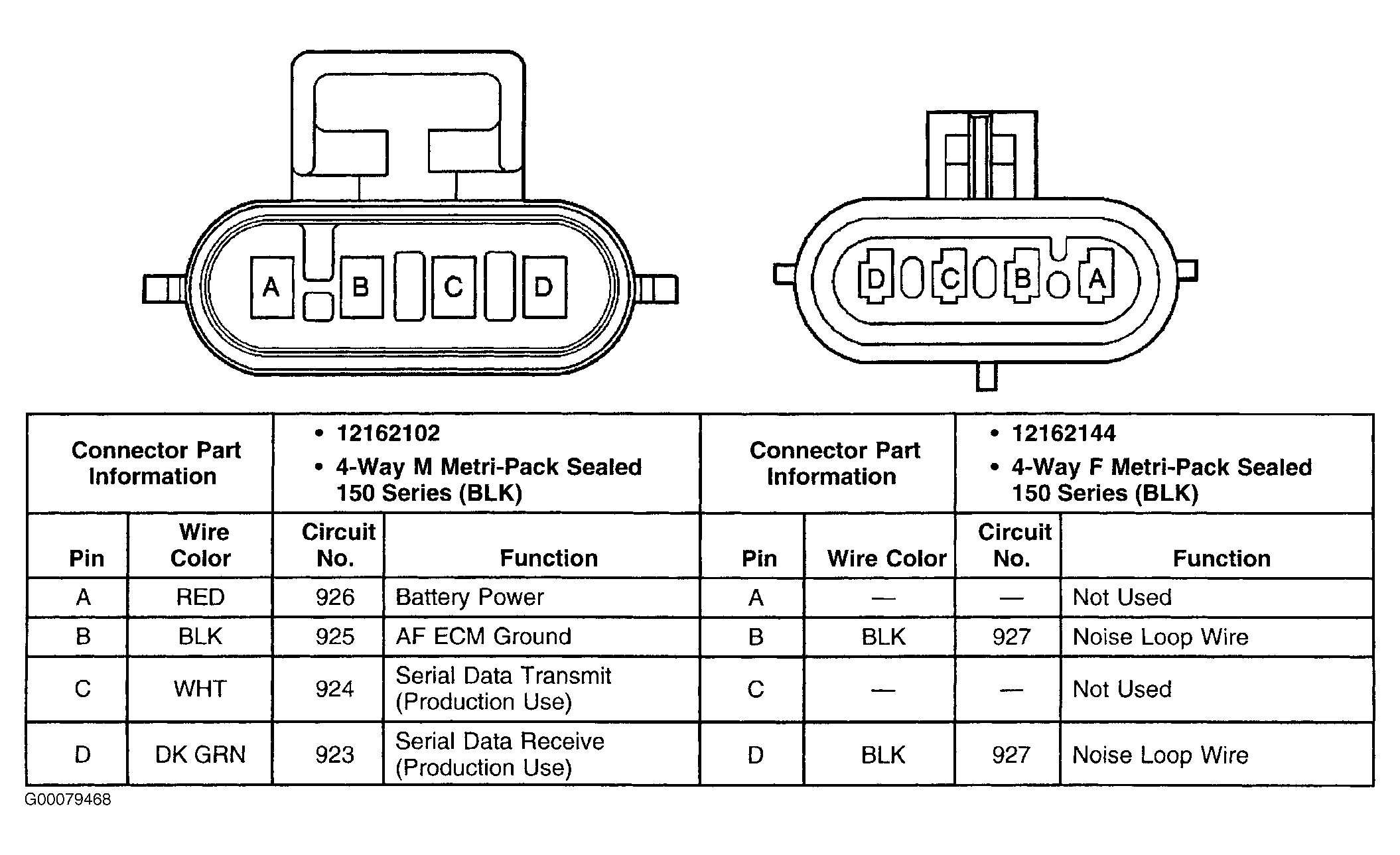

Fig 19: Identifying In-Line Connector C003 Terminals
G00079468Courtesy of GENERAL MOTORS CORP.

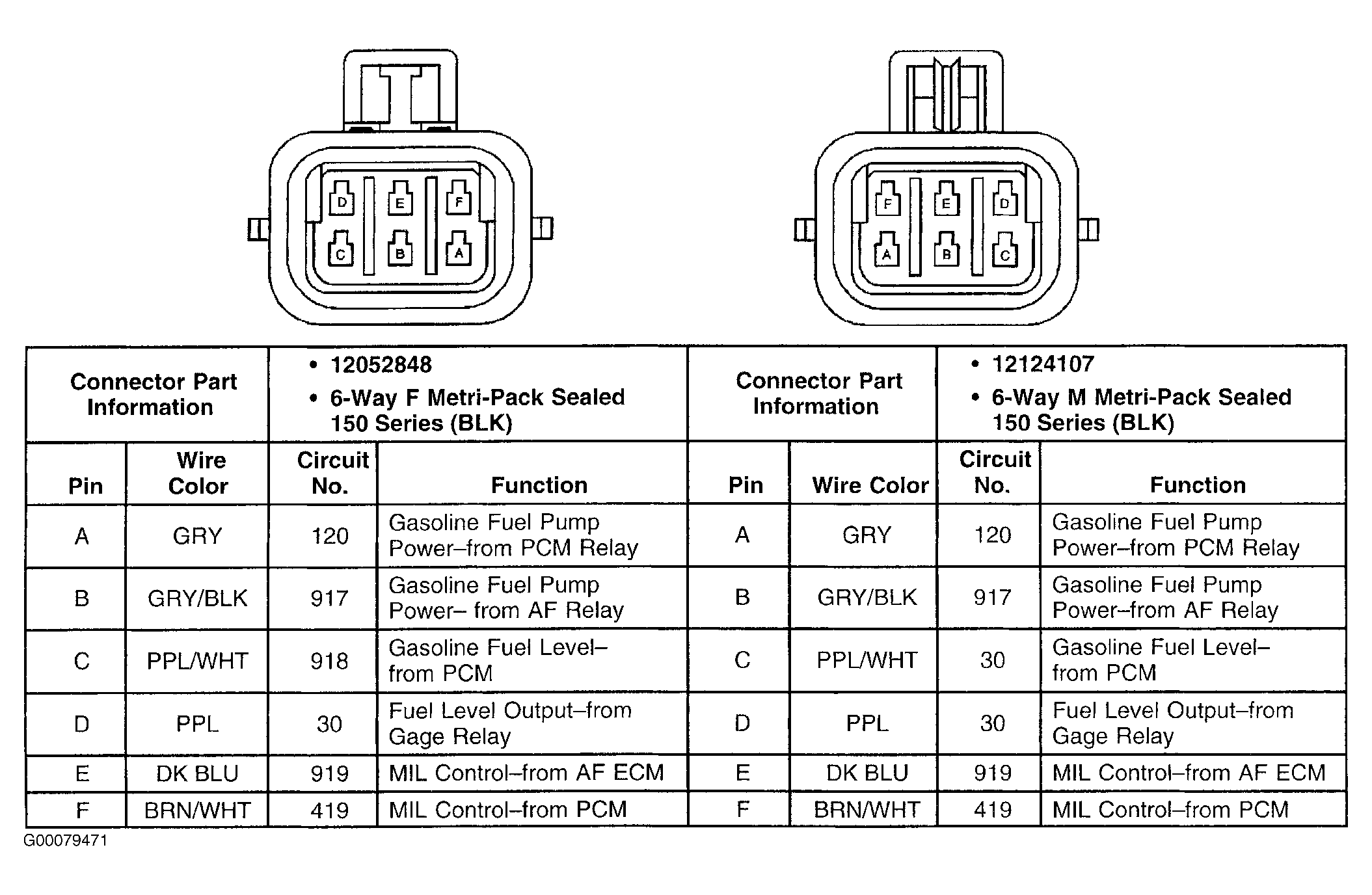

Fig 20: Identifying In-Line Connector C007 Terminals
G00079471Courtesy of GENERAL MOTORS CORP.

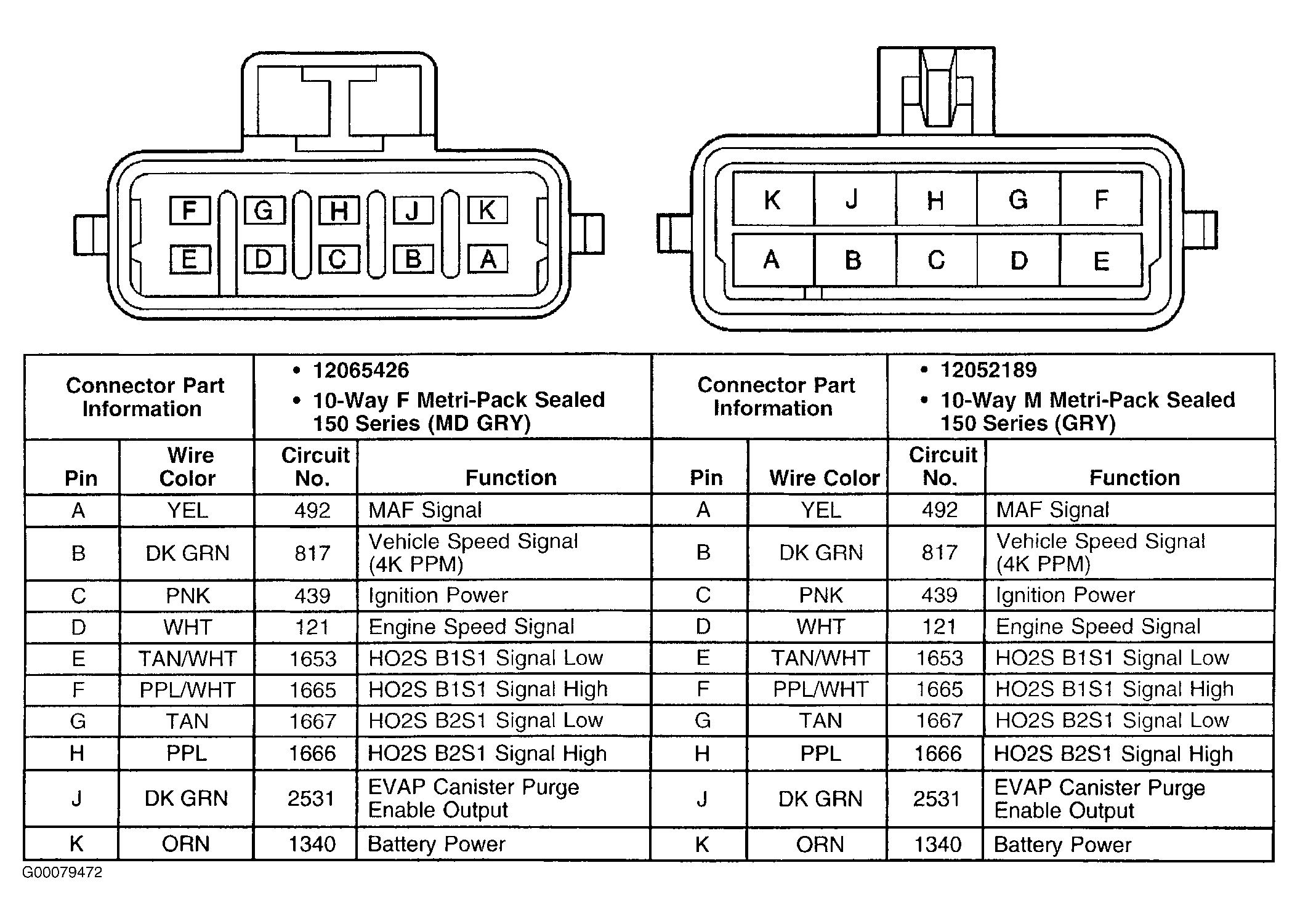

Fig 21: Identifying In-Line Connector C008 Terminals
G00079472Courtesy of GENERAL MOTORS CORP.

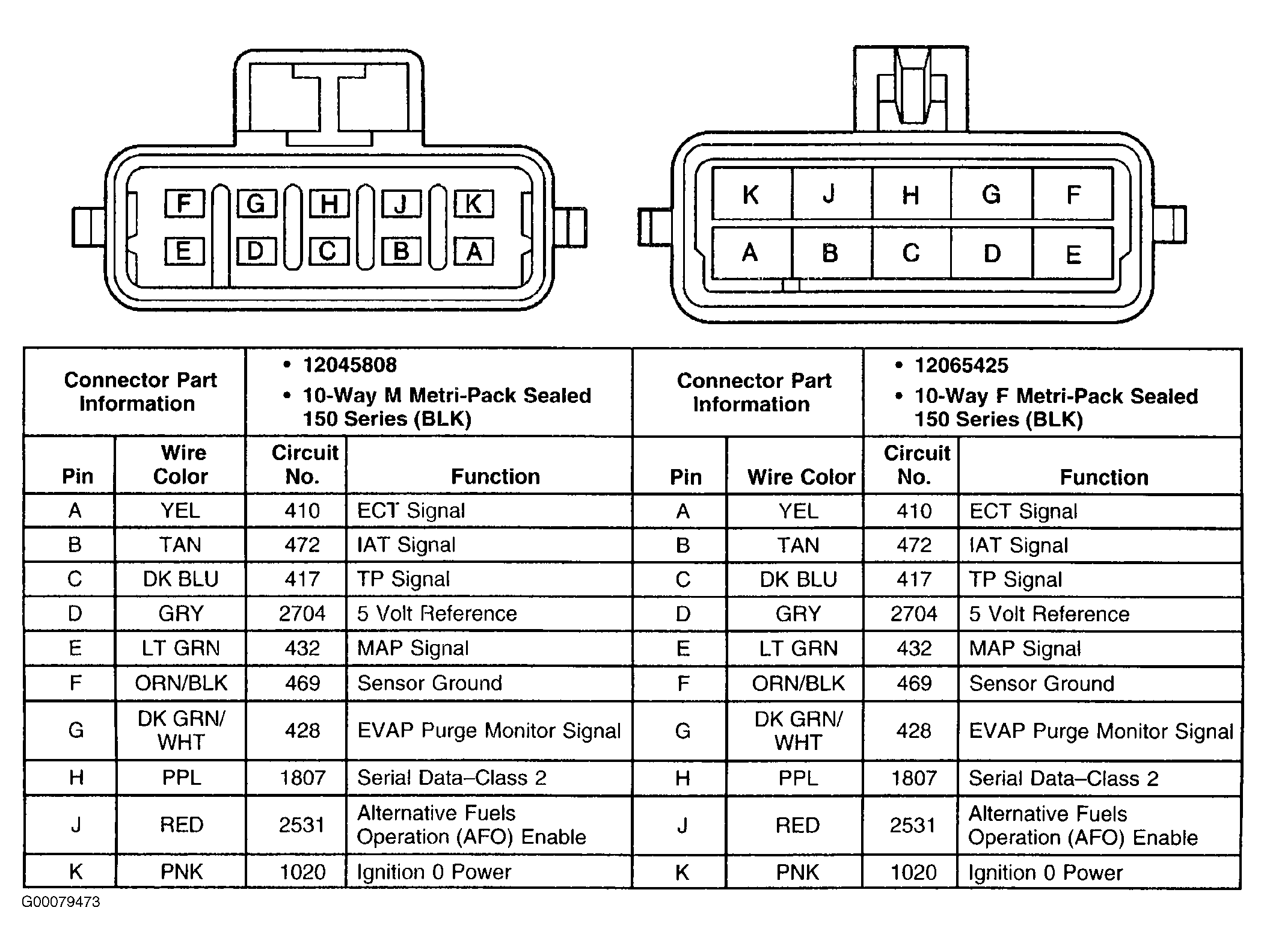

Fig 22: Identifying In-Line Connector C009 Terminals
G00079473Courtesy of GENERAL MOTORS CORP.

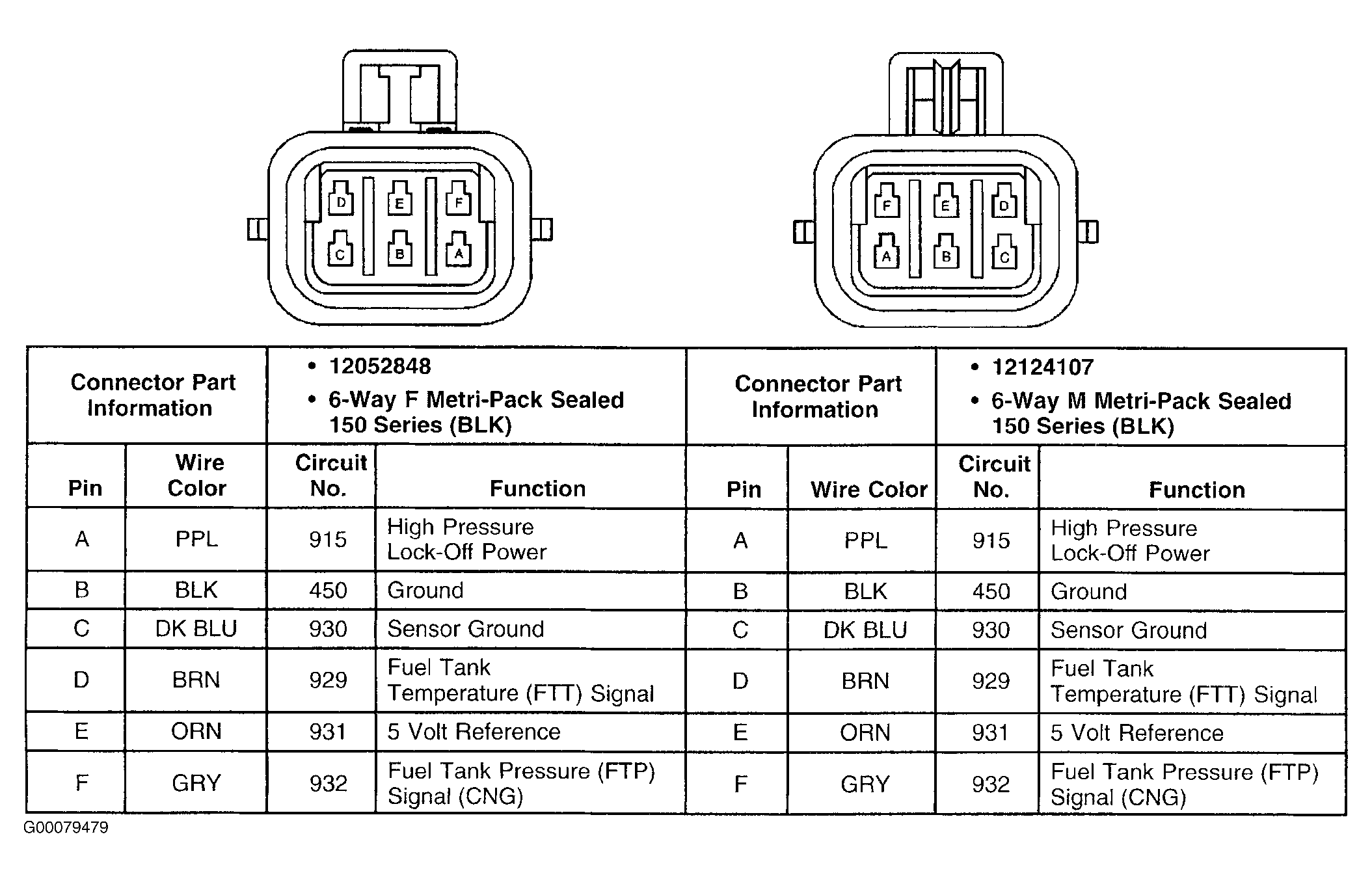

Fig 23: Identifying In-Line Connector C015 Terminals
G00079479Courtesy of GENERAL MOTORS CORP.

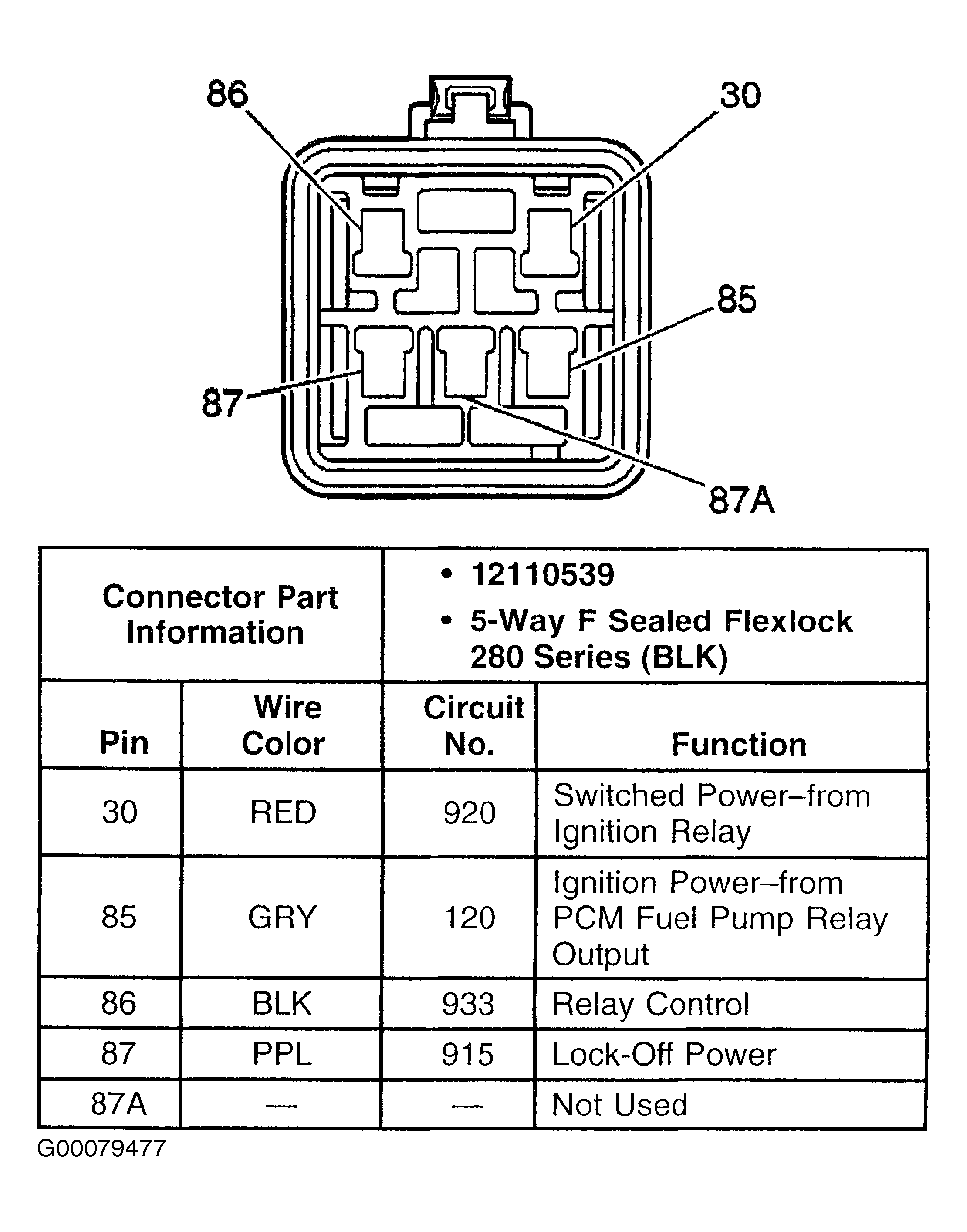

Fig 24: Identifying Lock-Off Relay Connector C013 Terminals
G00079477Courtesy of GENERAL MOTORS CORP.

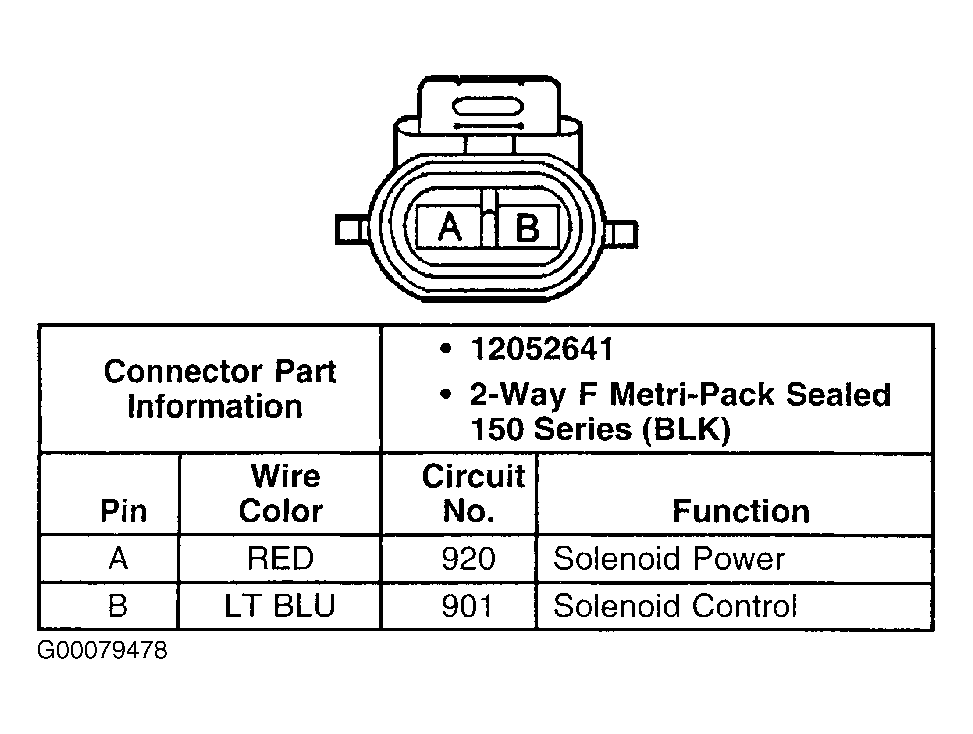

Fig 25: Identifying Low Pressure Lock-Off Connector C014 Terminals
G00079478Courtesy of GENERAL MOTORS CORP.
Fig 26: Identifying MAF Sensor Connector Terminals
G00140527Courtesy of GENERAL MOTORS CORP.
Fig 27: Identifying MAP Sensor Connector Terminals
G00140526Courtesy of GENERAL MOTORS CORP.

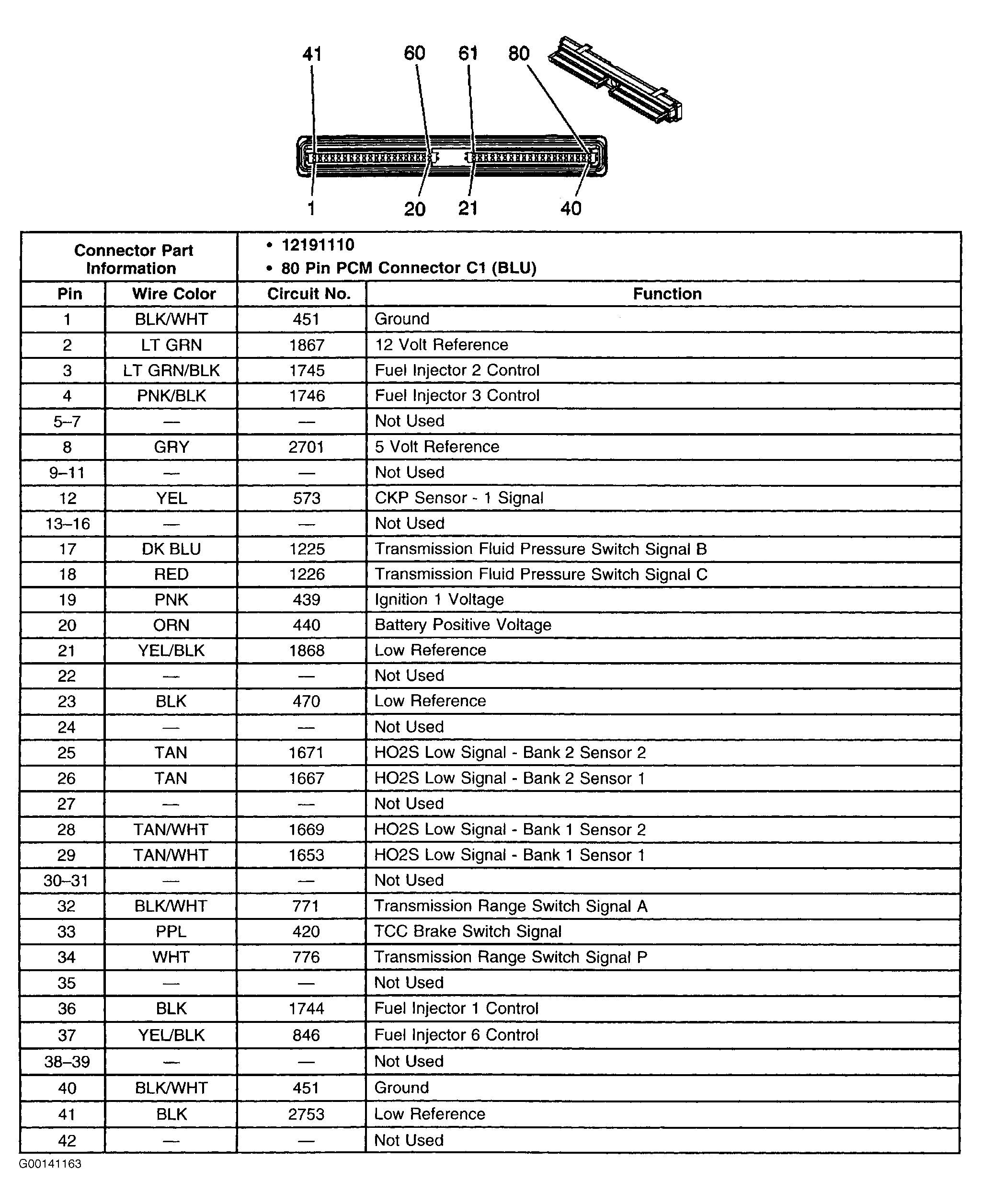

Fig 28: Identifying PCM Connector C1 Terminals (1 Of 2)
G00141163Courtesy of GENERAL MOTORS CORP.

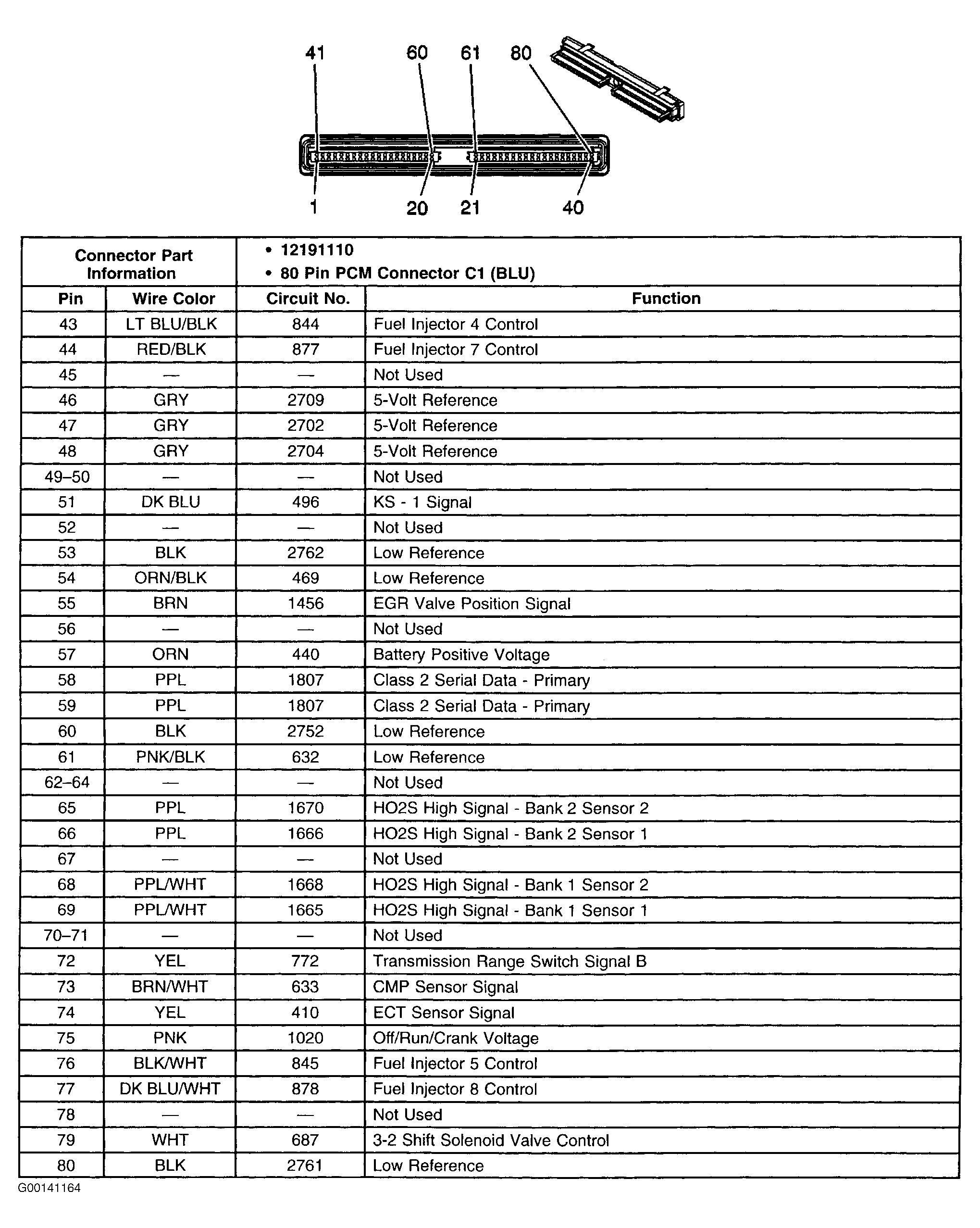

Fig 29: Identifying PCM Connector C1 Terminals (2 Of 2)
G00141164Courtesy of GENERAL MOTORS CORP.

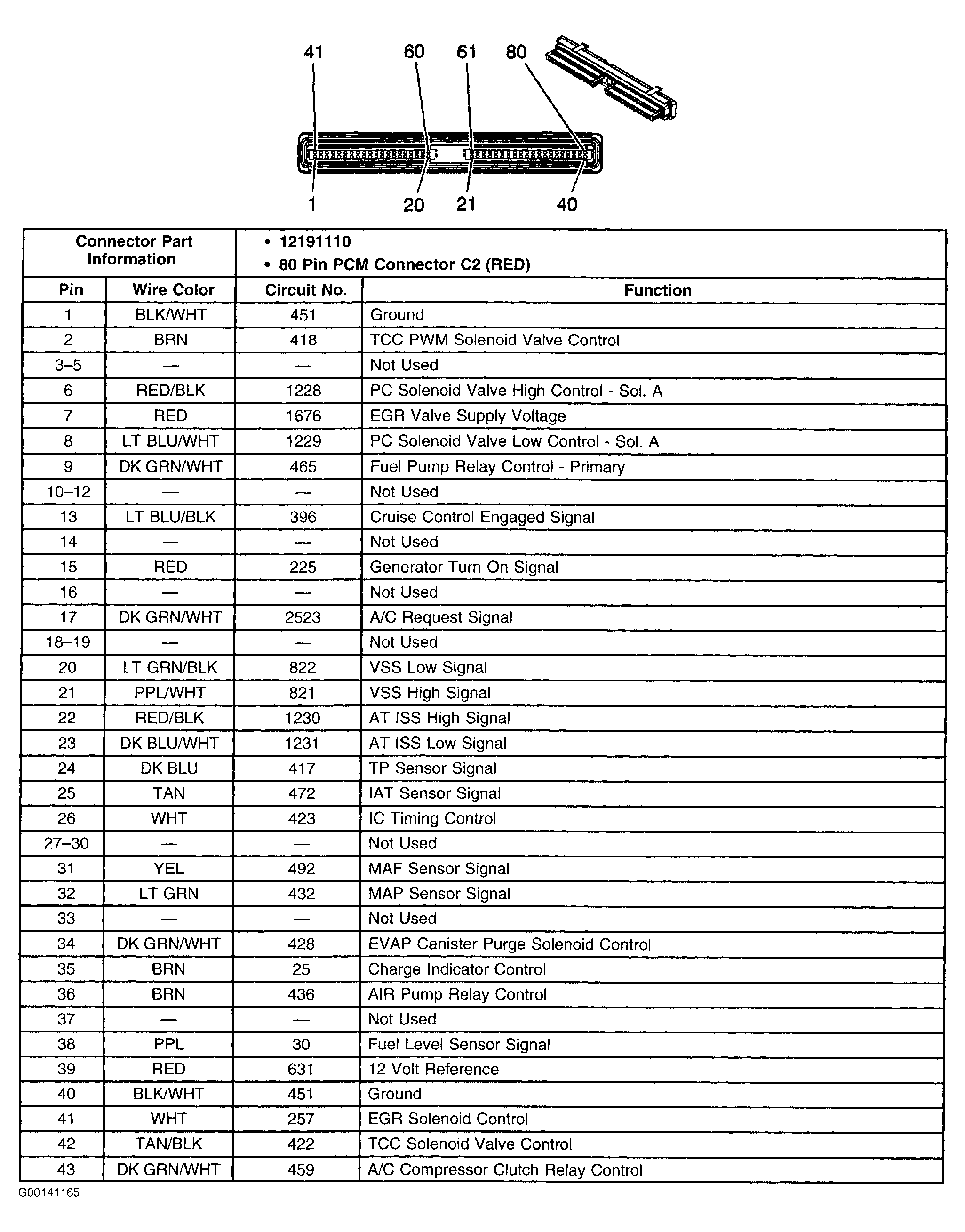

Fig 30: Identifying PCM Connector C2 Terminals (1 Of 2)
G00141165Courtesy of GENERAL MOTORS CORP.

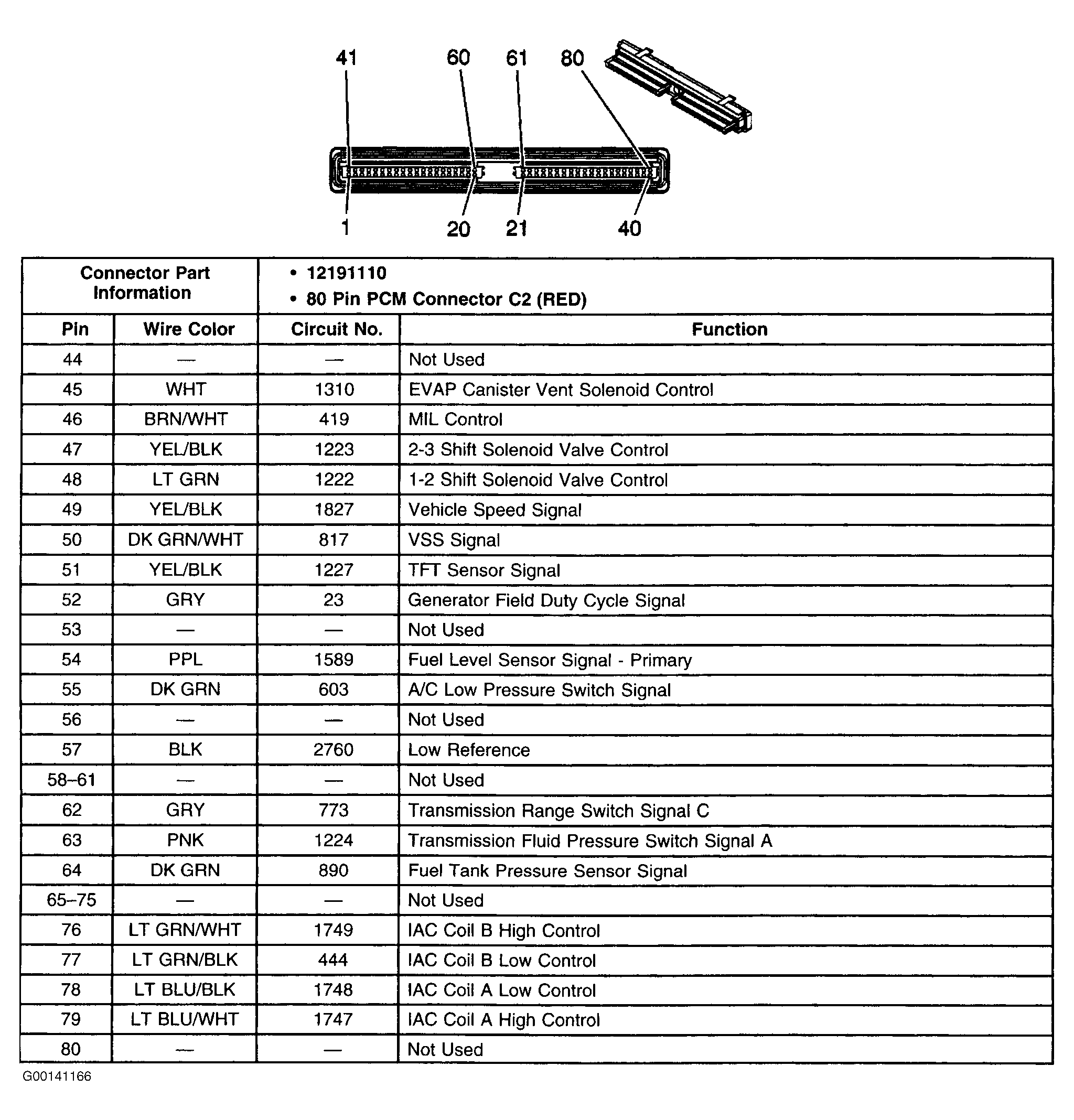

Fig 31: Identifying PCM Connector C2 Terminals (2 Of 2)
G00141166Courtesy of GENERAL MOTORS CORP.
Fig 32: Identifying Throttle Position Sensor Connector Terminals
G00140532Courtesy of GENERAL MOTORS CORP.
Fig 33: Identifying VSS Connector Terminals
G00140533Courtesy of GENERAL MOTORS CORP.
