Fuel Sender Buffer Module Connector End View - Diesel

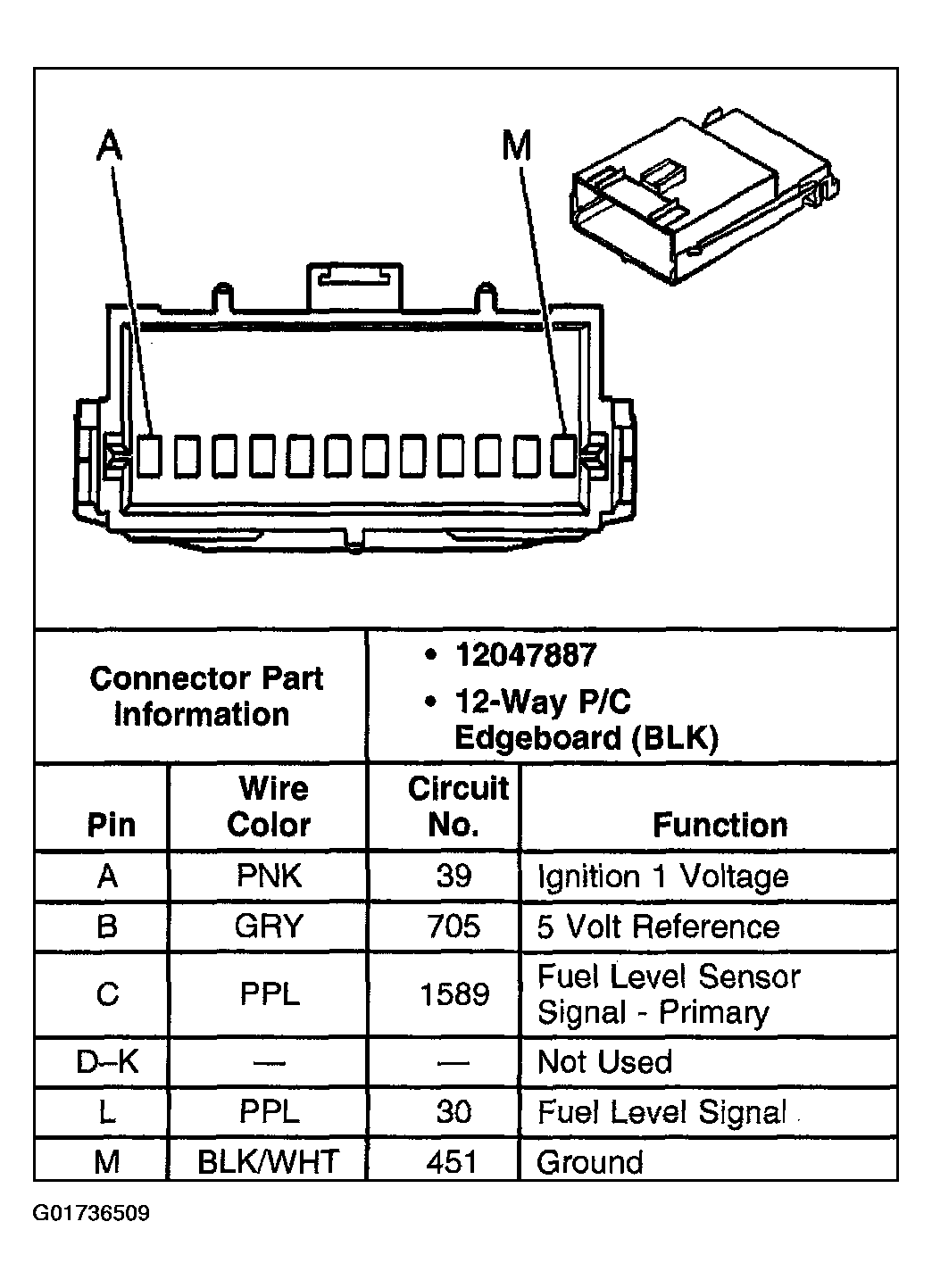

Fig 1: Fuel Sender Buffer Module - Diesel

G01736509

Courtesy of GENERAL MOTORS CORP.
