Engine Block - Front View

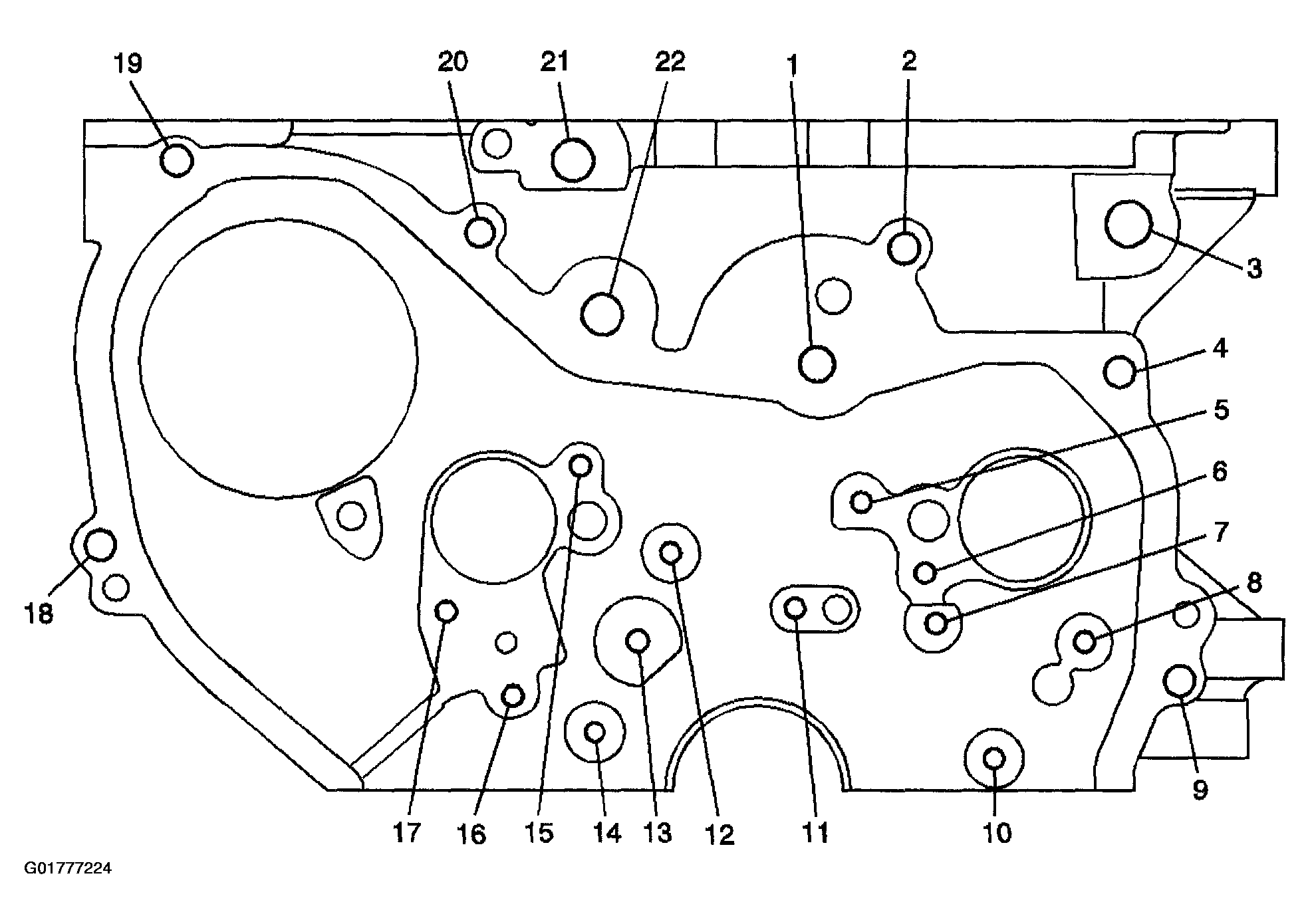

Fig 1: Engine Block - Front View (1 Of 3)
G01777224Courtesy of GENERAL MOTORS CORP.

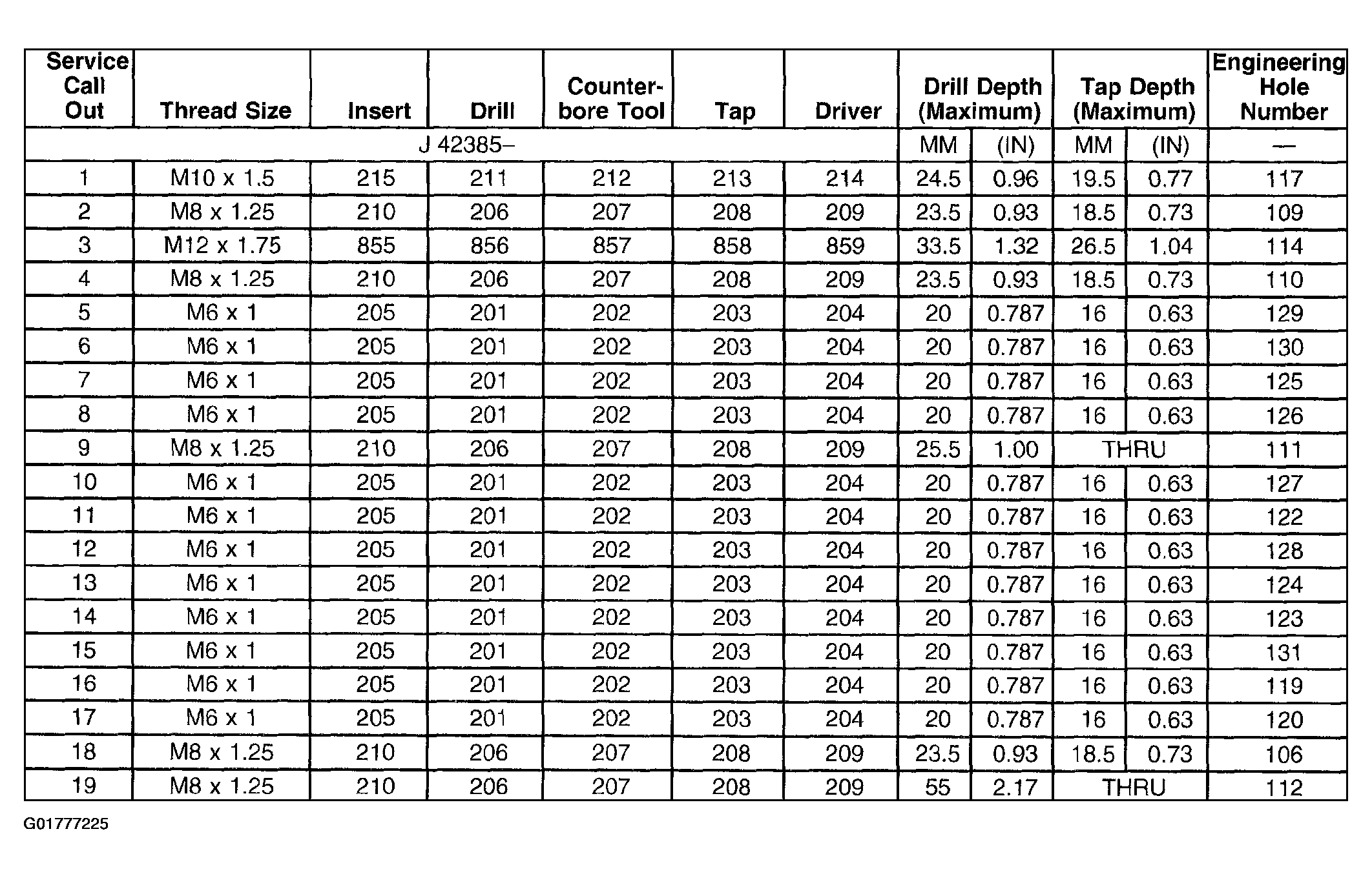

Fig 2: Engine Block - Front View (2 Of 3)
G01777225Courtesy of GENERAL MOTORS CORP.

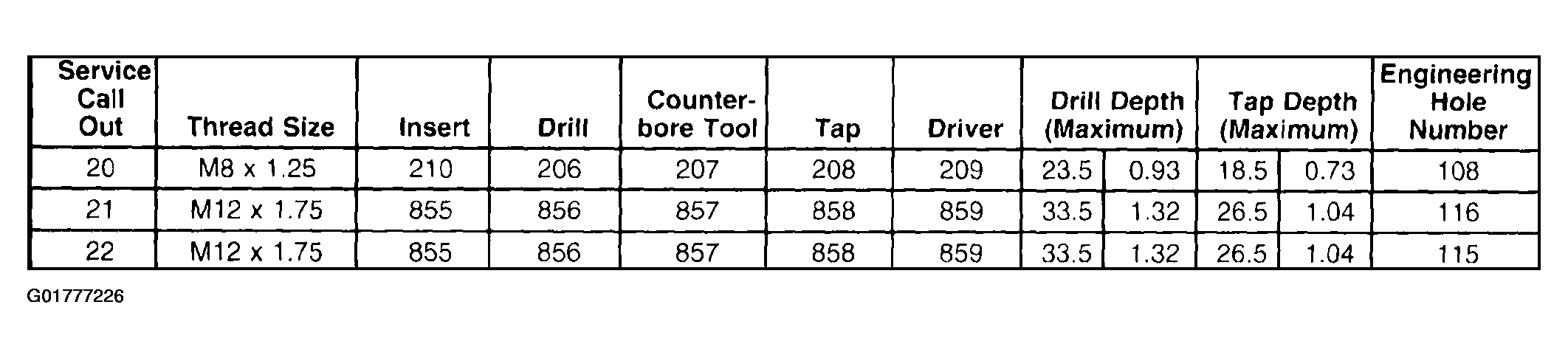

Fig 3: Engine Block - Front View (3 Of 3)
G01777226Courtesy of GENERAL MOTORS CORP.
