Engine Block - Bottom View

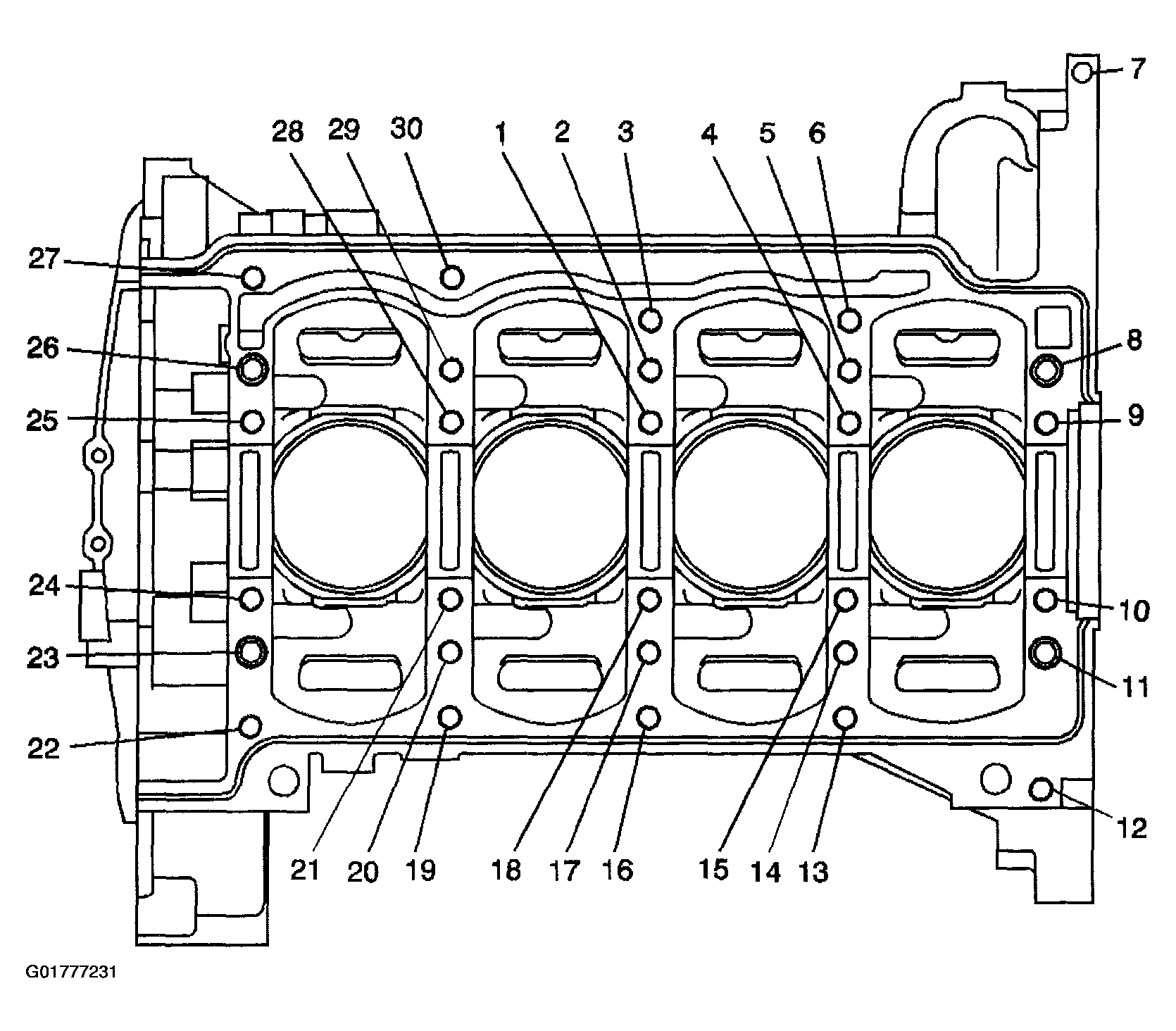

Fig 1: Engine Block - Bottom View (1 Of 3)
G01777231Courtesy of GENERAL MOTORS CORP.

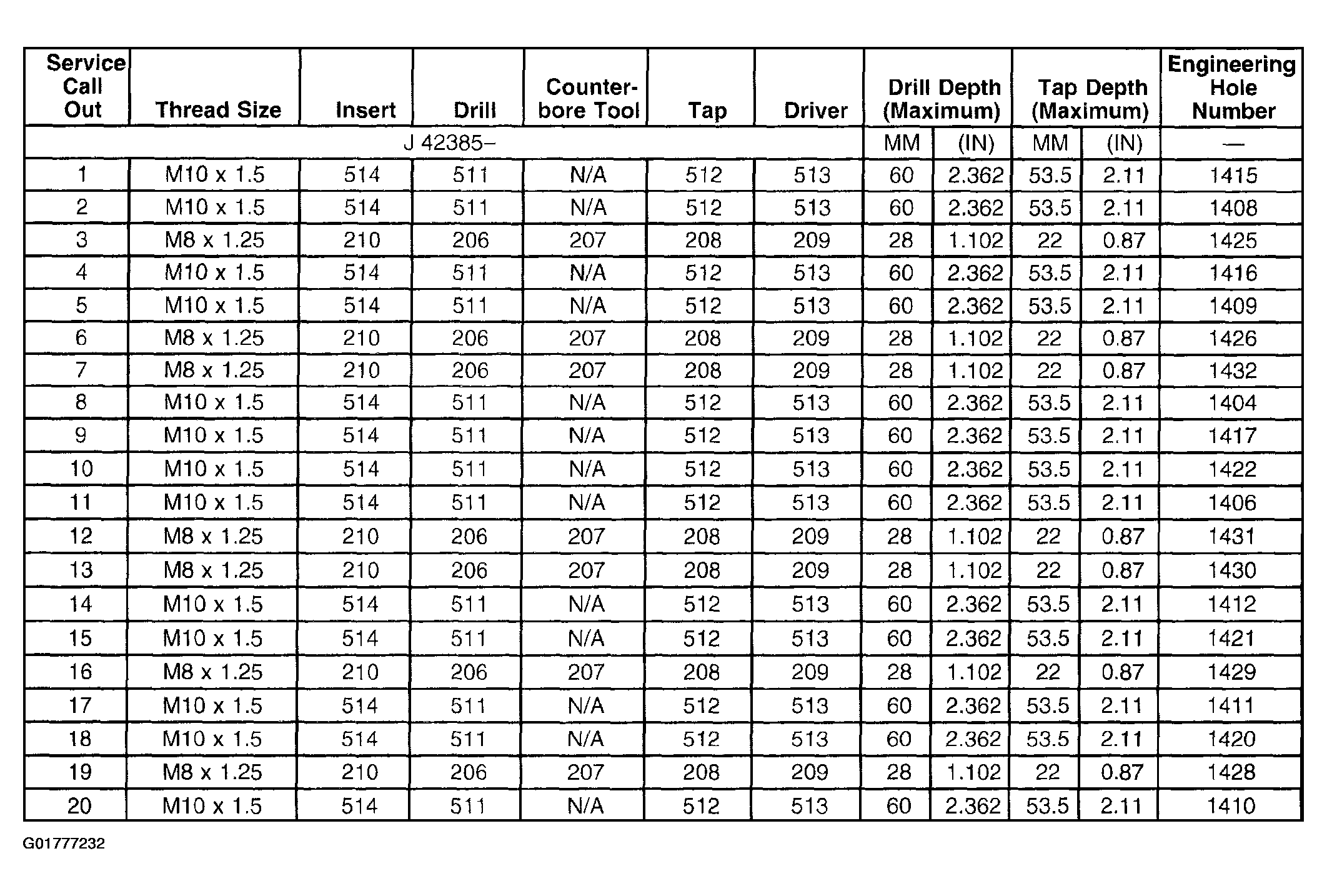

Fig 2: Engine Block - Bottom View (2 Of 3)
G01777232Courtesy of GENERAL MOTORS CORP.

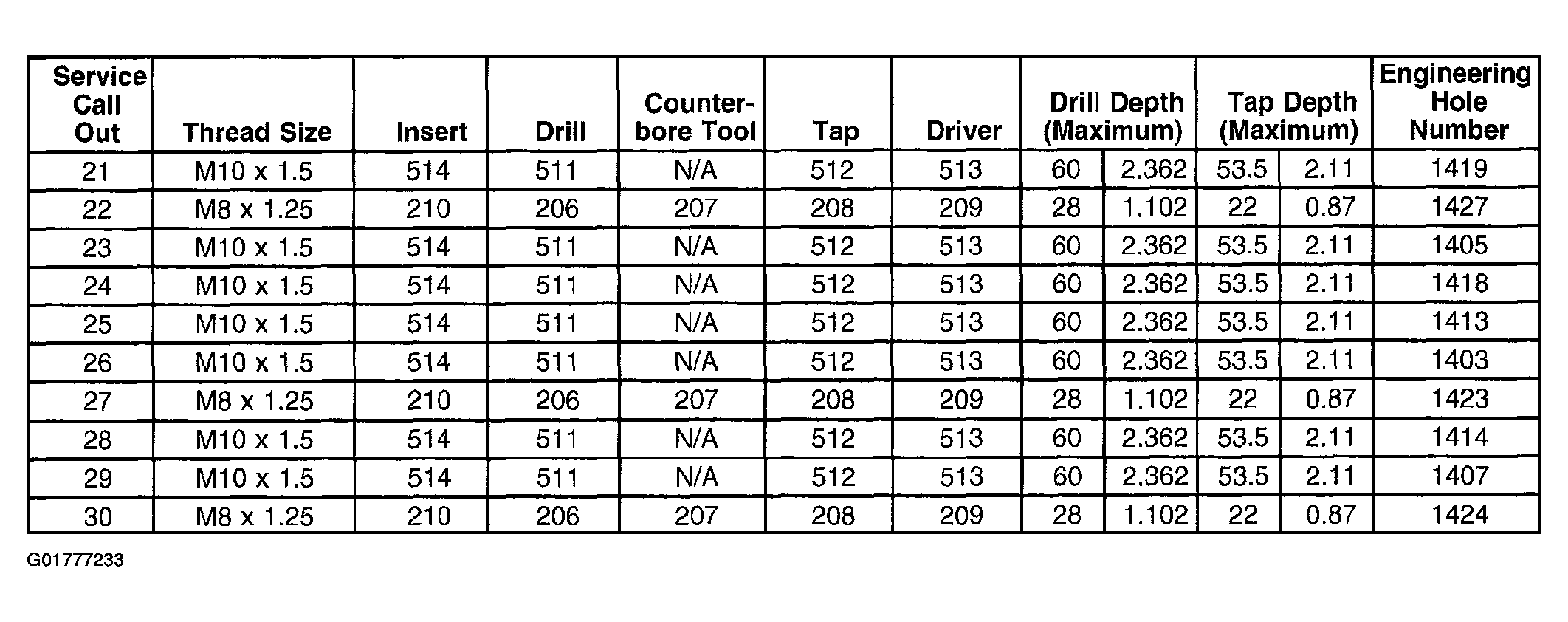

Fig 3: Engine Block - Bottom View (3 Of 3)
G01777233Courtesy of GENERAL MOTORS CORP.
