Engine Block - Back View

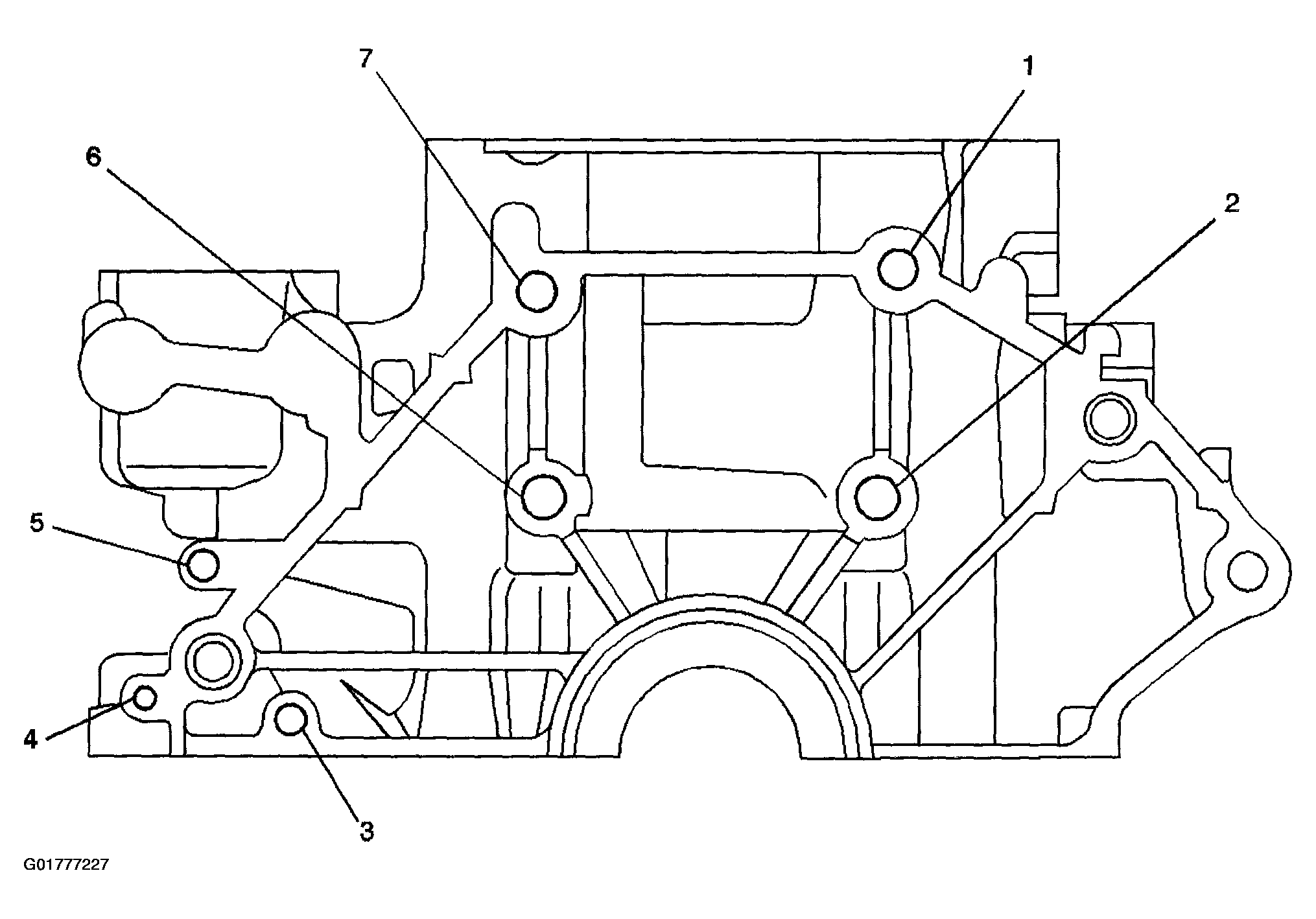

Fig 1: Engine Block - Back View (1 Of 2)

G01777227

Courtesy of GENERAL MOTORS CORP.

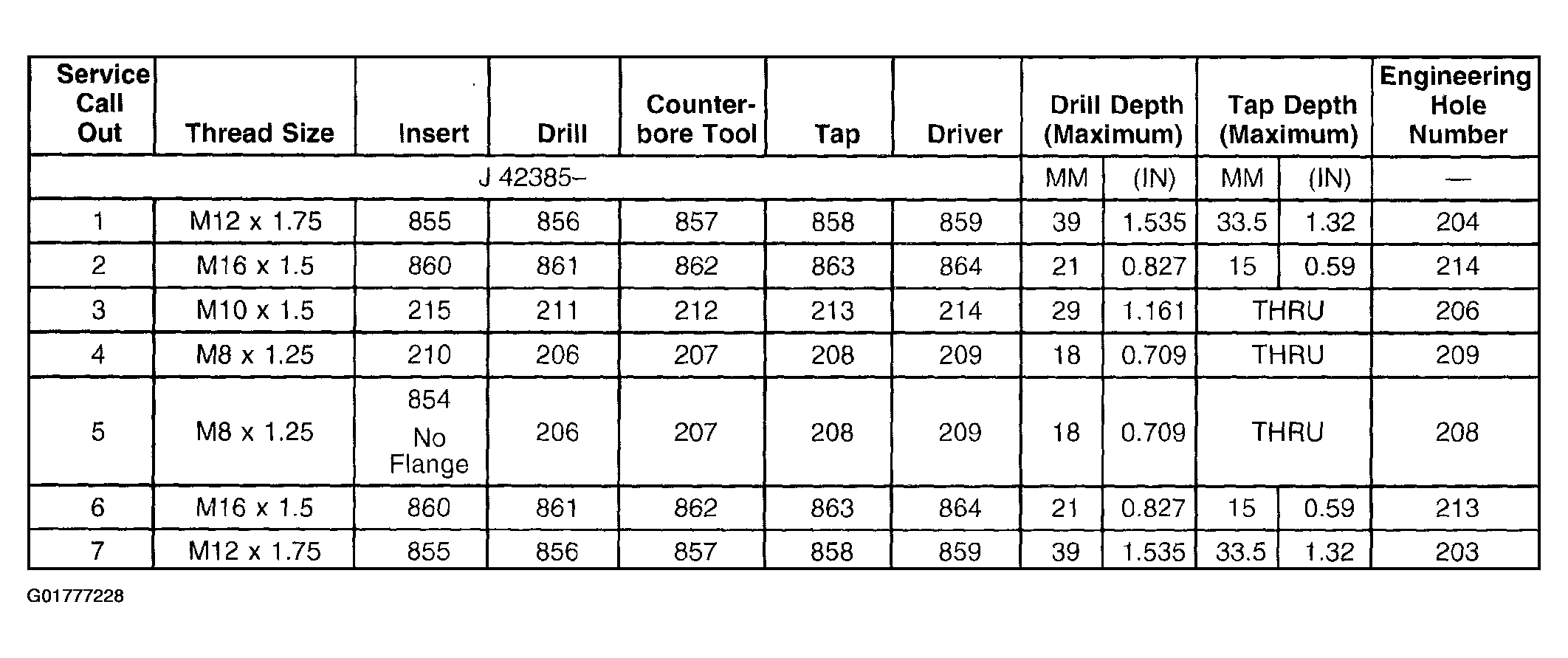

Fig 2: Engine Block - Back View (2 Of 2)

G01777228

Courtesy of GENERAL MOTORS CORP.
