Data Link Communications Connector End Views

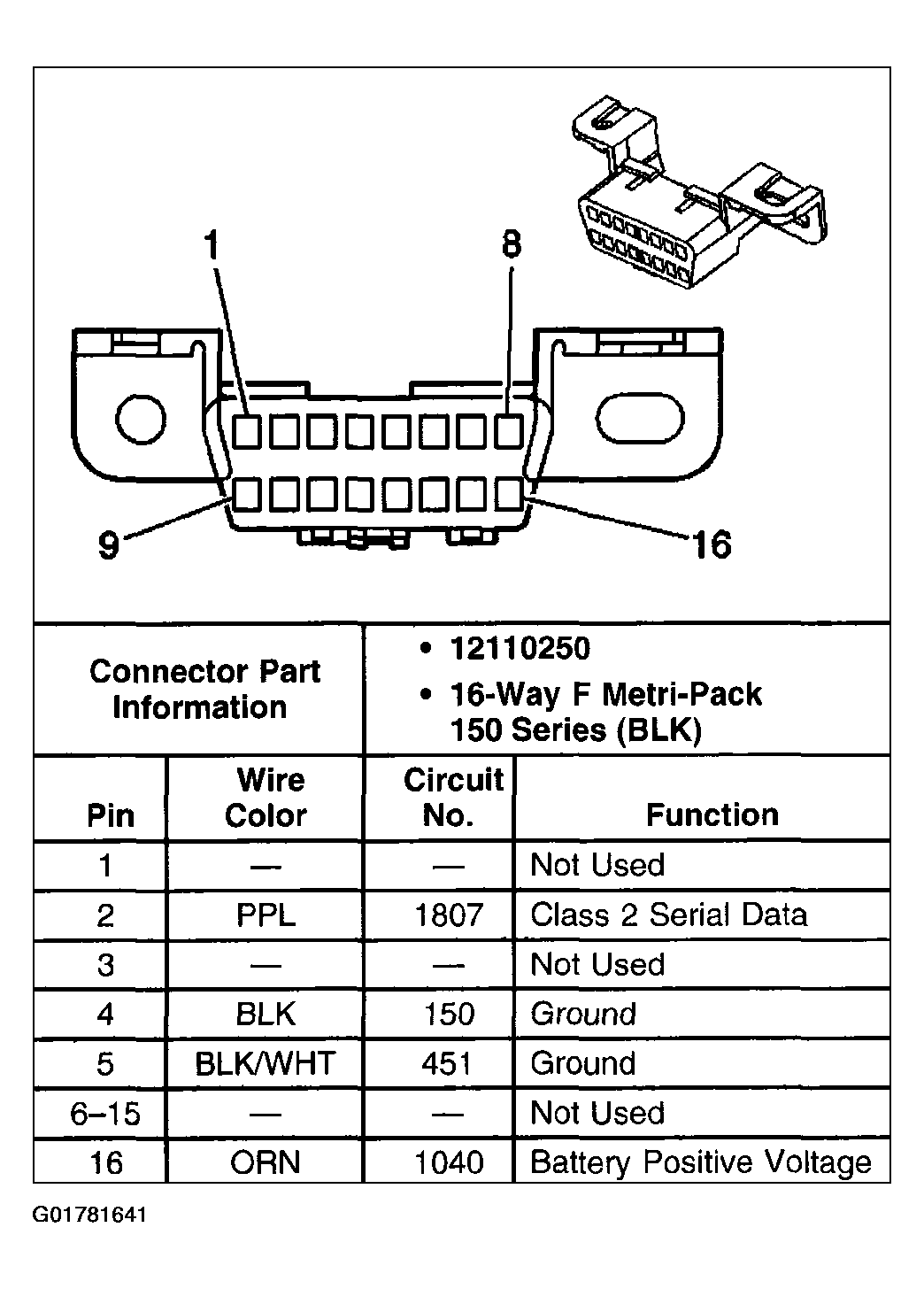

Fig 1: Identifying Data Link Connector Terminals

G01781641

Courtesy of GENERAL MOTORS CORP.
