Removal Procedure

Important:  Use the proper tool in order to separate all ball joints.

1. Raise the vehicle.
2. Remove the inner tie rods (5) from the relay rod.

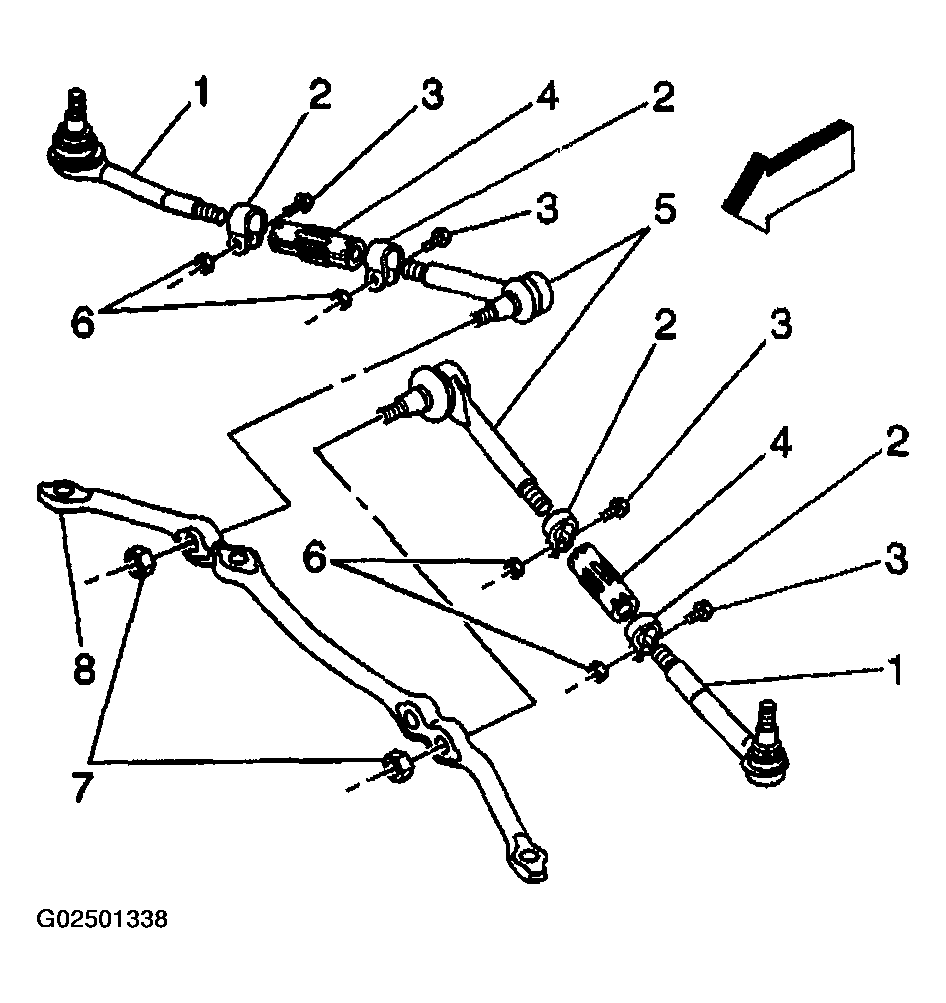

   Fig 1: Steering Linkage Components

   Courtesy of GENERAL MOTORS CORP.
3. Remove the prevailing torque nut (5) from the connecting rod (1) ball stud. Discard the prevailing torque nut (5).
4. Use the J 24319-B  in order to remove the connecting rod from the relay rod.
5. Remove the prevailing torque nuts (5) from the idler arm (1) ball studs. Discard the prevailing torque nuts (1).
6. Use the J 24319-B  in order to remove the relay rod from the idler arms.
7. Inspect the threads on the tie rod for damage.
8. Inspect the ball stud threads for damage.
9. Inspect the ball stud seals for excessive wear.
10. Clean the threads on the ball studs.
