Removal Procedure

Important:  Use the proper tool in order to separate all ball joints.

1. Raise the vehicle.
2. Remove the inner tie rod to relay rod retaining nuts.
3. Disconnect the inner tie rods (2) from the relay rod (3). Discard the prevailing torque nut (4).
4. Remove the prevailing torque nut (4) from the connecting rod (5) ball stud.
5. Disconnect the connecting rod from the relay rod.
6. Remove the prevailing torque nuts (4) from the idler arm (1) ball studs. Discard the prevailing torque nuts (4).
7. Use the J 24319-B  in order to remove the relay rod from the idler arms.
8. Inspect the threads on the tie rod for damage.
9. Inspect the ball stud threads for damage.
10. Inspect the ball stud seals for excessive wear.
11. Clean the threads on the ball studs.

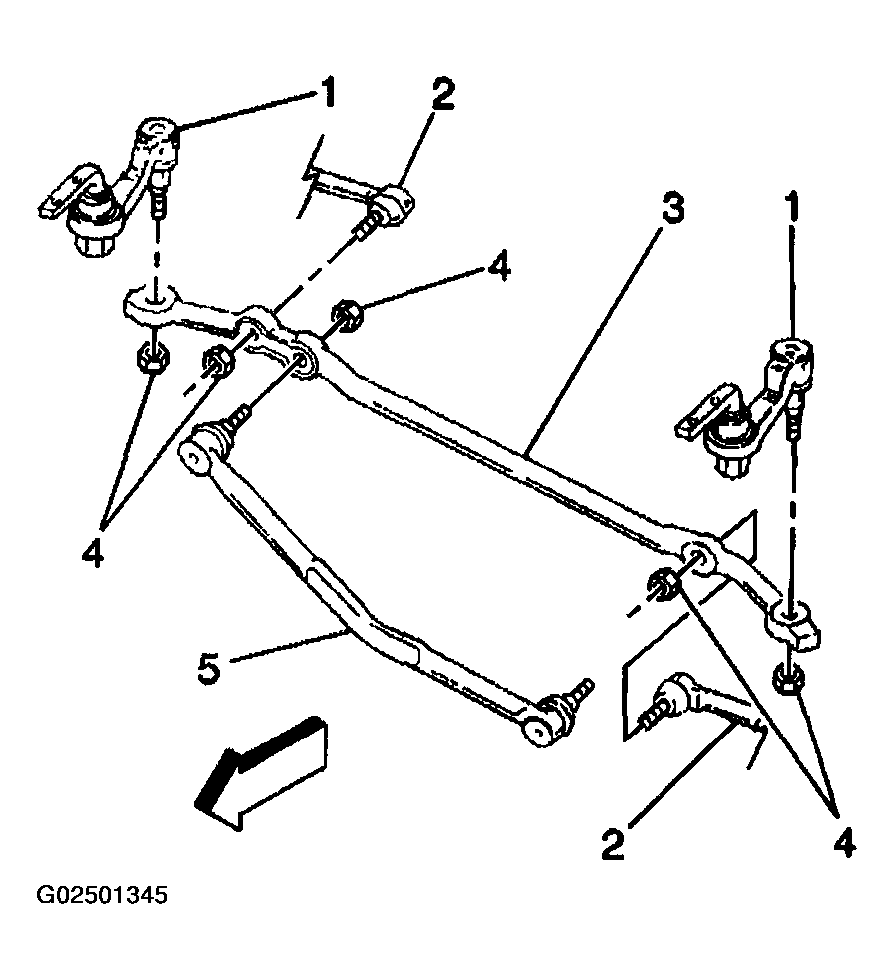

    Fig 1: Steering Linkage Components

    Courtesy of GENERAL MOTORS CORP.
