Power Steering Pump Specifications

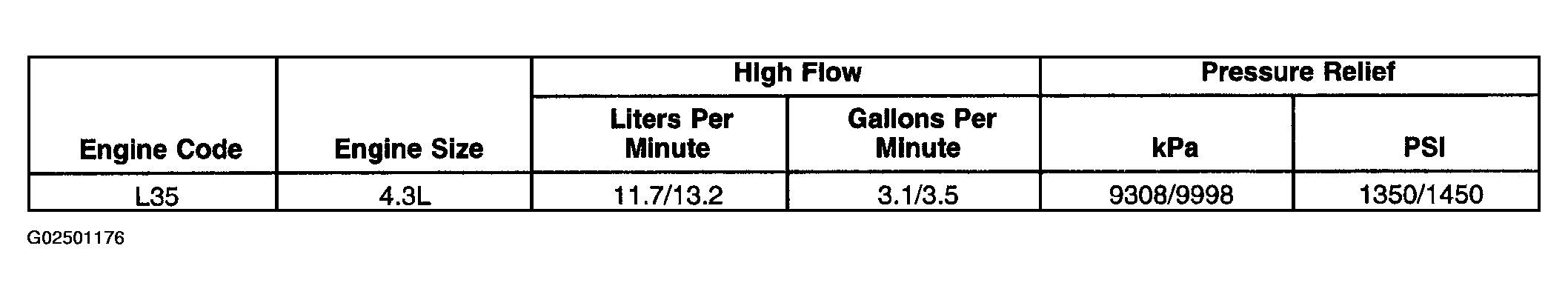

Fig 1: Power Steering Pump Specifications

G02501176

Courtesy of GENERAL MOTORS CORP.
