Propshaft Speed Sensor - Front Electrical Connector End View

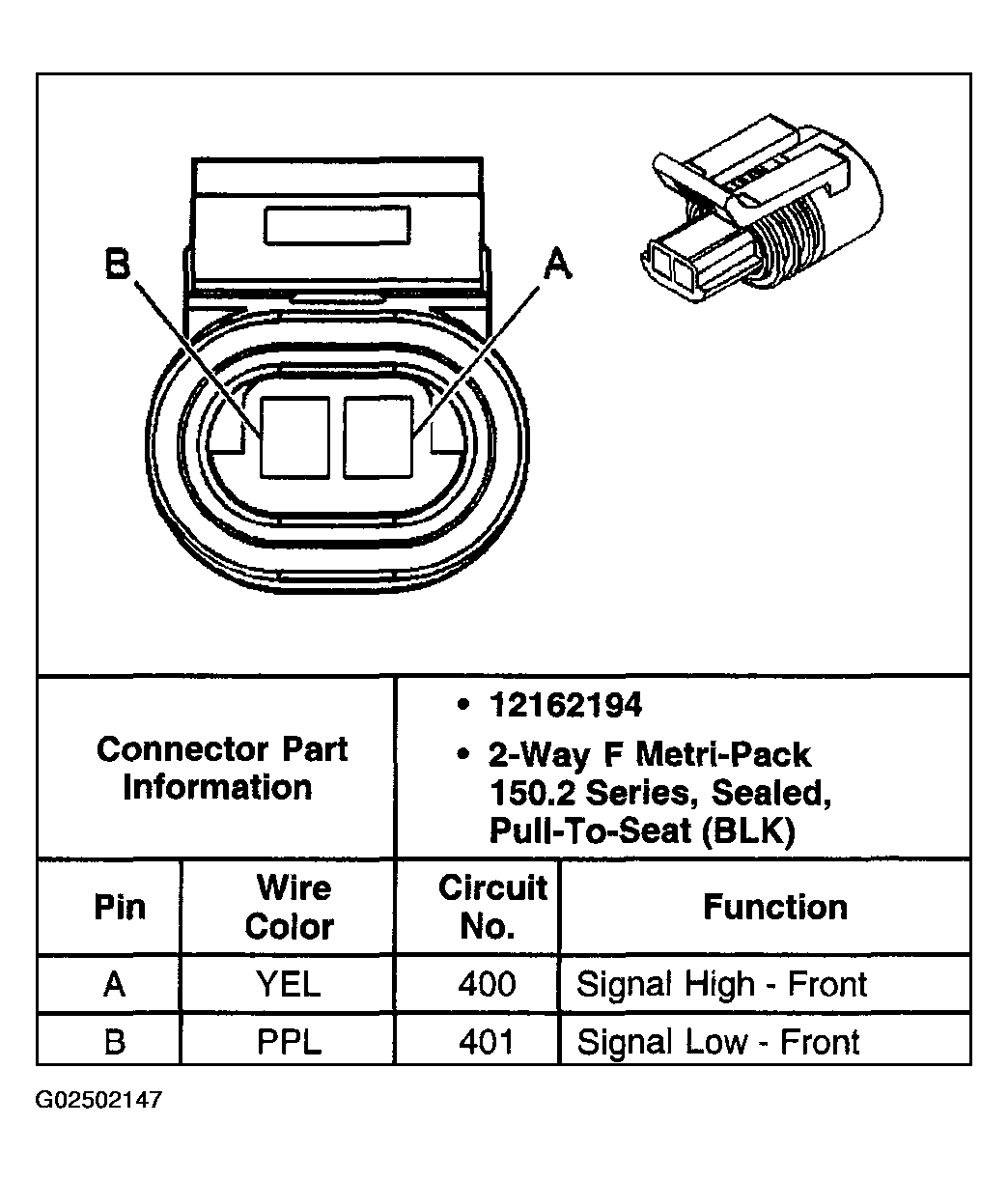

Fig 1: Propshaft Speed Sensor - Front Electrical Connector End View

G02502147

Courtesy of GENERAL MOTORS CORP.
