Garage Door Opener Connector End View & Functions

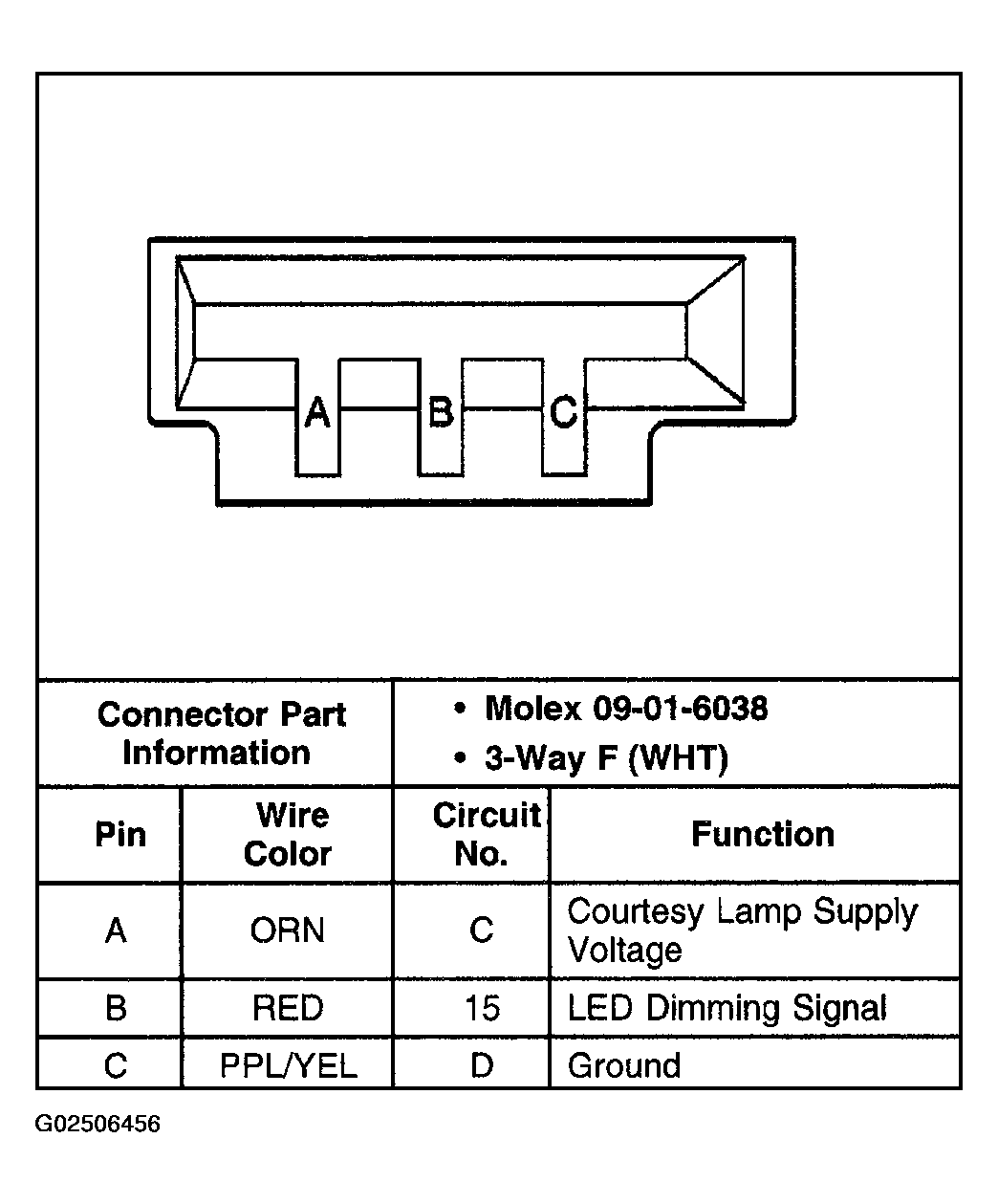

Fig 1: Garage Door Opener Connector End View & Functions

G02506456

Courtesy of GENERAL MOTORS CORP.
