Engine Oil Pressure Sensor Connector End View

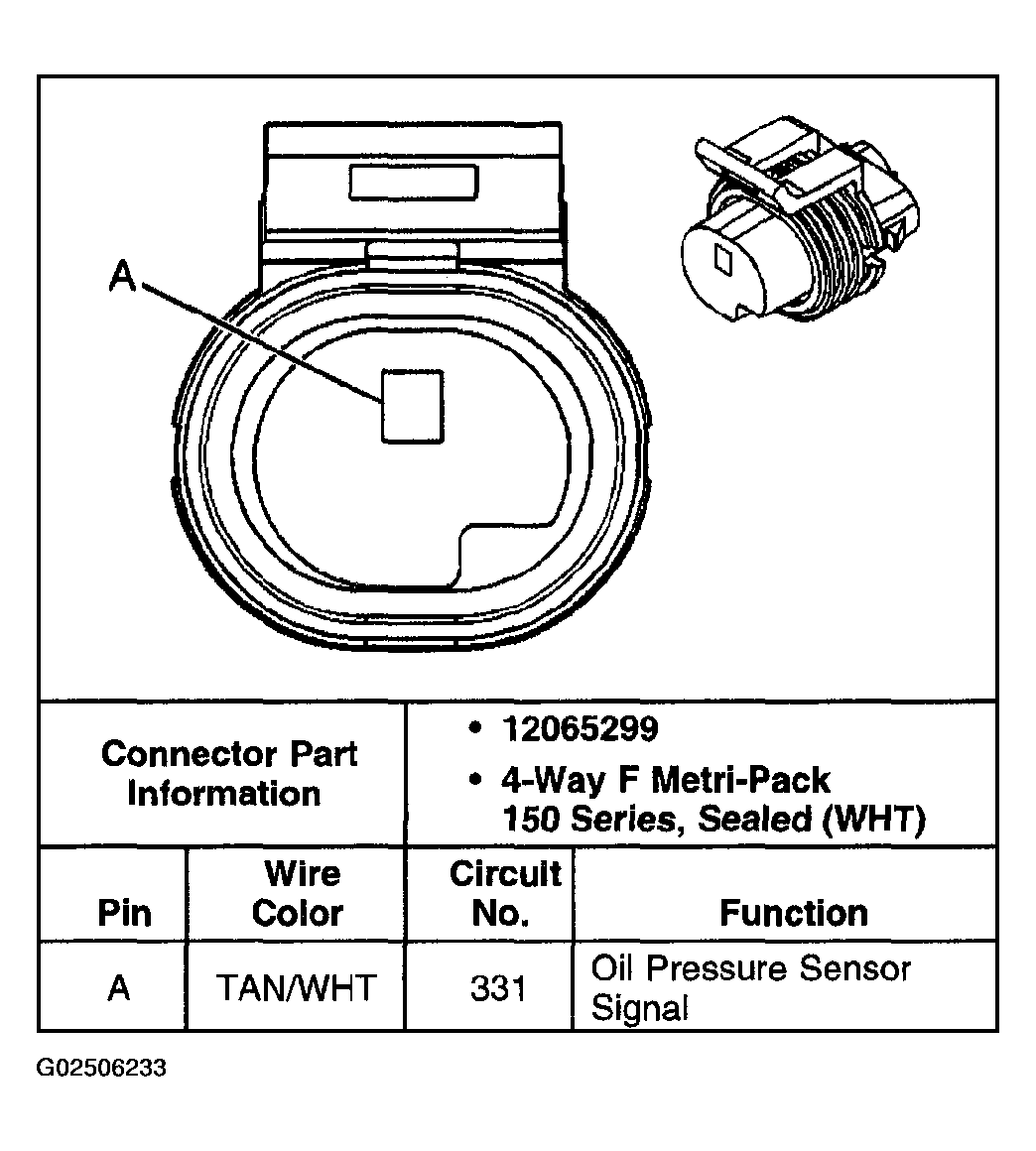

Fig 1: Engine Oil Pressure Sensor Connector End View

G02506233

Courtesy of GENERAL MOTORS CORP.
