C404 (Main Body-To-Rear Dome Lamp) Connector End View

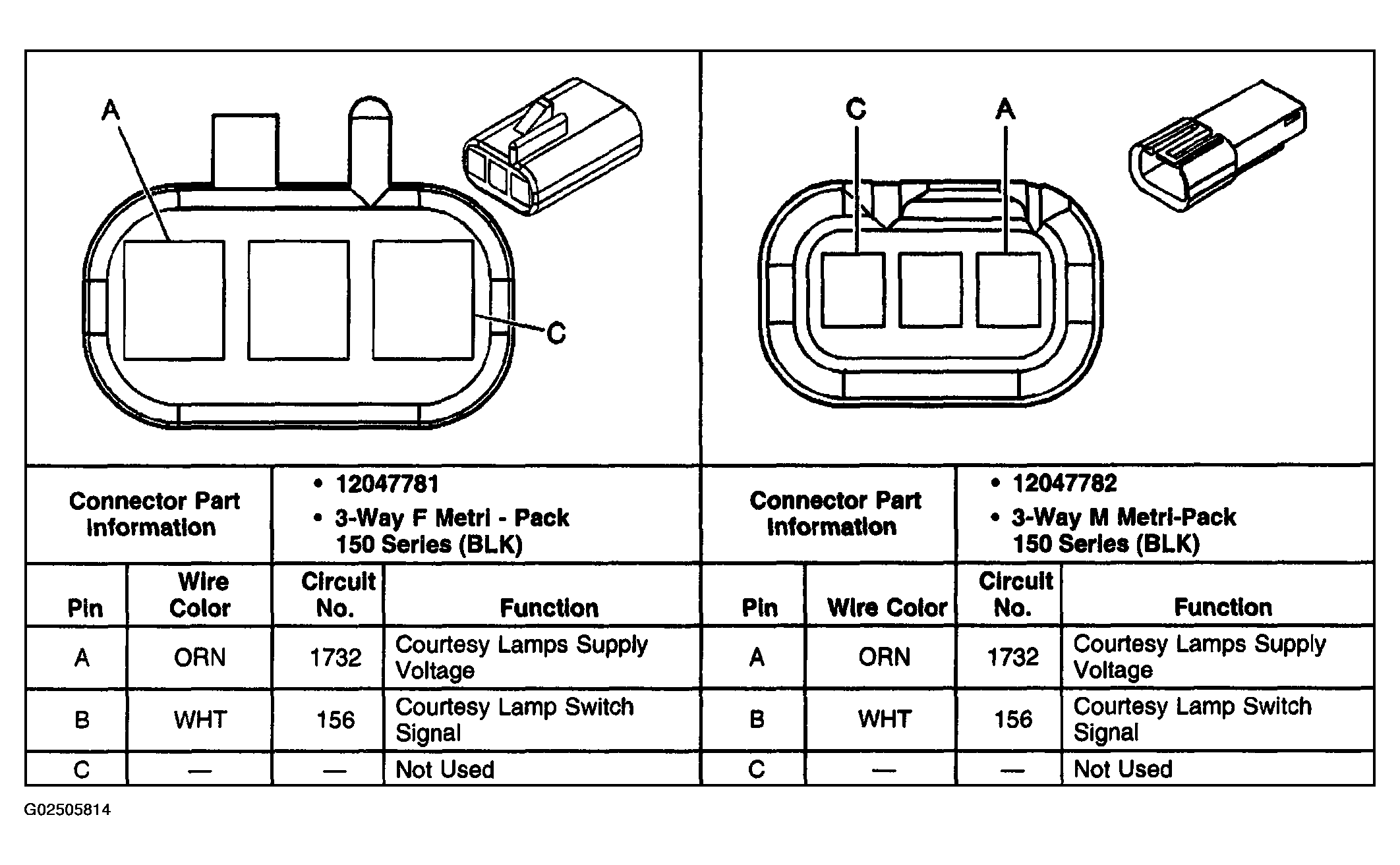

Fig 1: C404 (Main Body-To-Rear Dome Lamp) Connector End View

G02505814

Courtesy of GENERAL MOTORS CORP.
