C302 (Body-To-Overhead Console) Connector End View

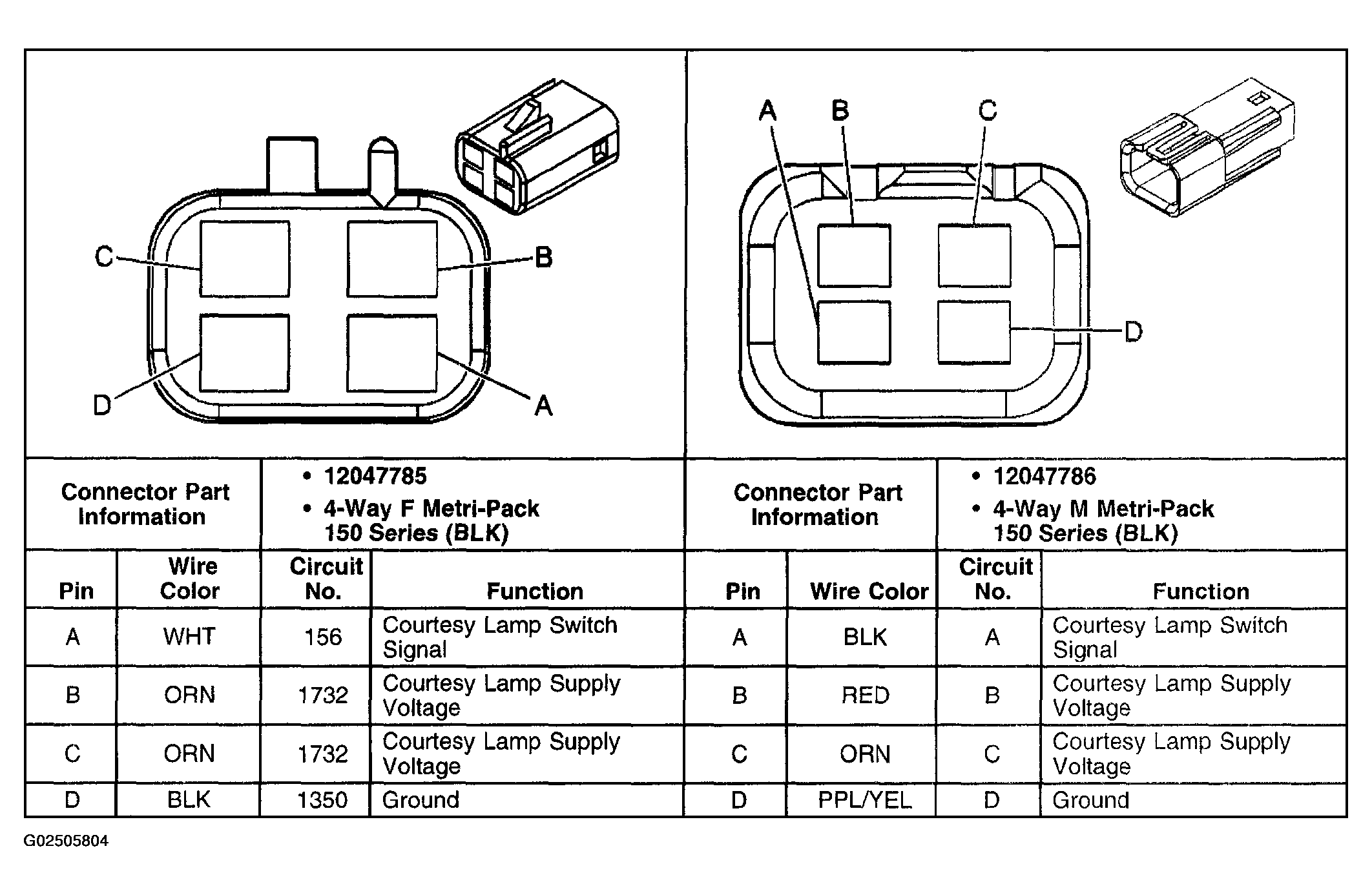

Fig 1: C302 (Body-To-Overhead Console) Connector End View

G02505804

Courtesy of GENERAL MOTORS CORP.
