Ambient Air Temperature Sensor Connector End View

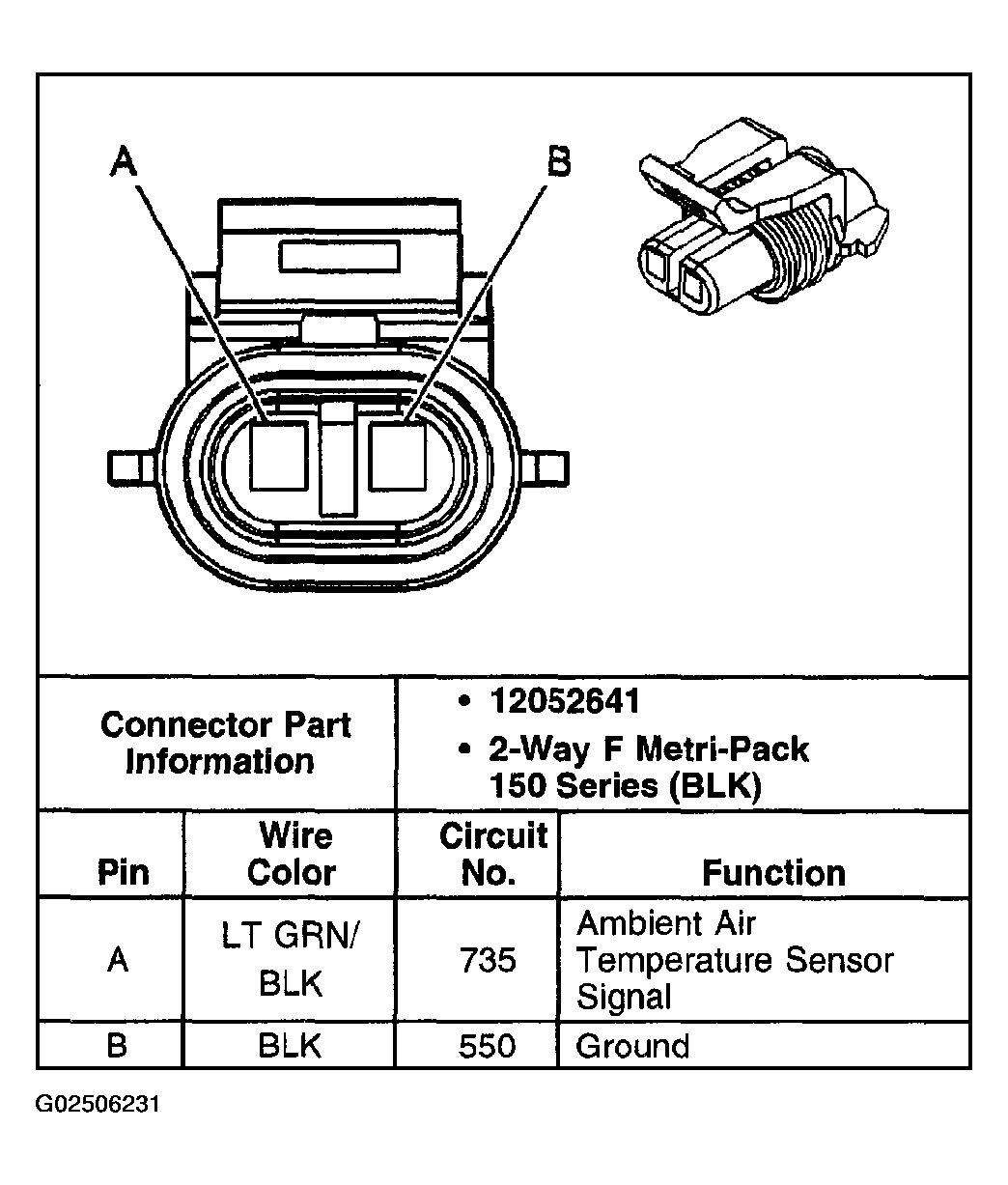

Fig 1: Ambient Air Temperature Sensor Connector End View

G02506231

Courtesy of GENERAL MOTORS CORP.
