A/C Compressor Harness Connector End View

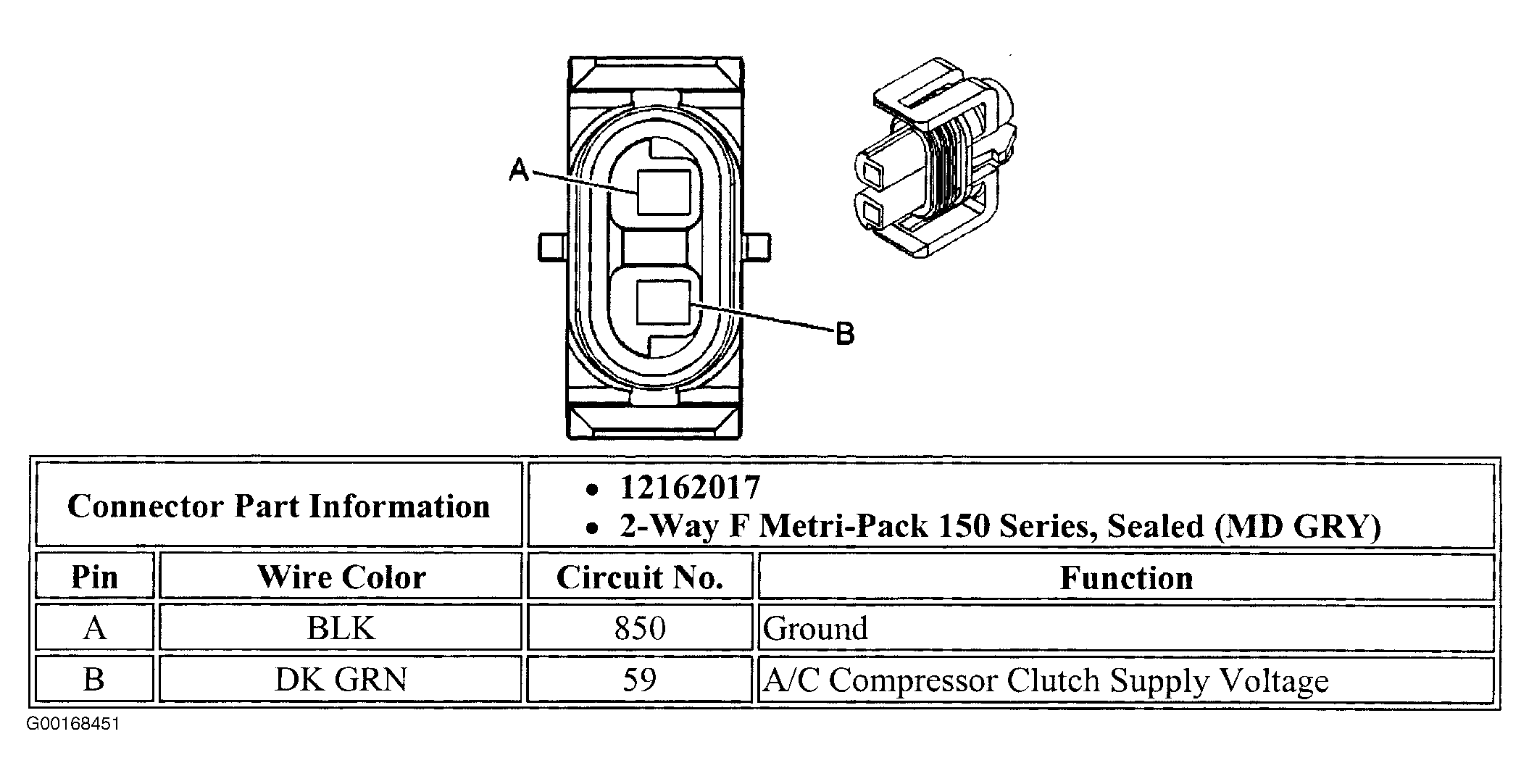

Fig 1: A/C Compressor Harness Connector End View

G00168451

Courtesy of GENERAL MOTORS CORP.
