Door Lock/Indicator Schematics

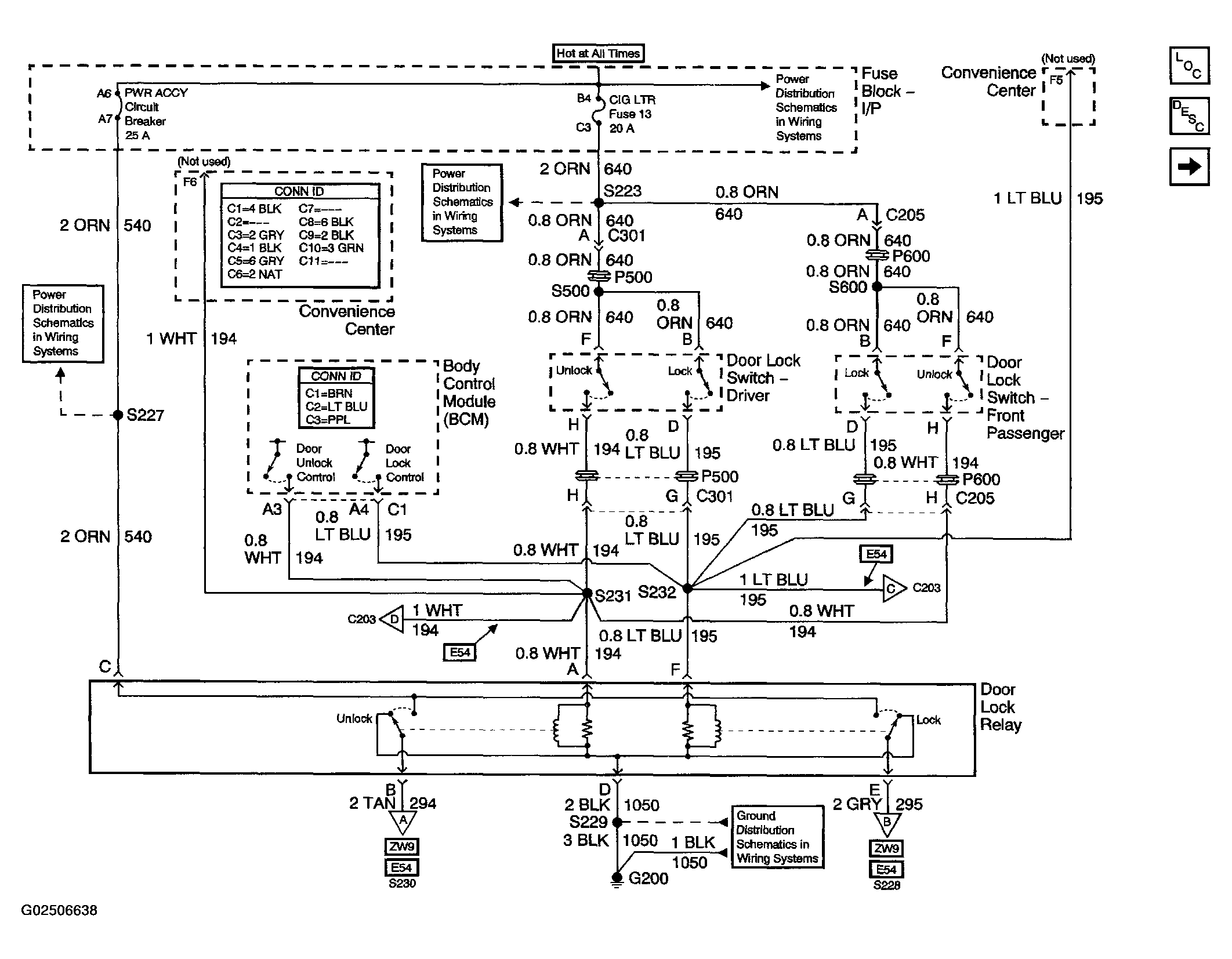

Fig 1: Door Lock/Indicator Wiring Schematic (Door Lock Switches & Relay)

Courtesy of GENERAL MOTORS CORP.

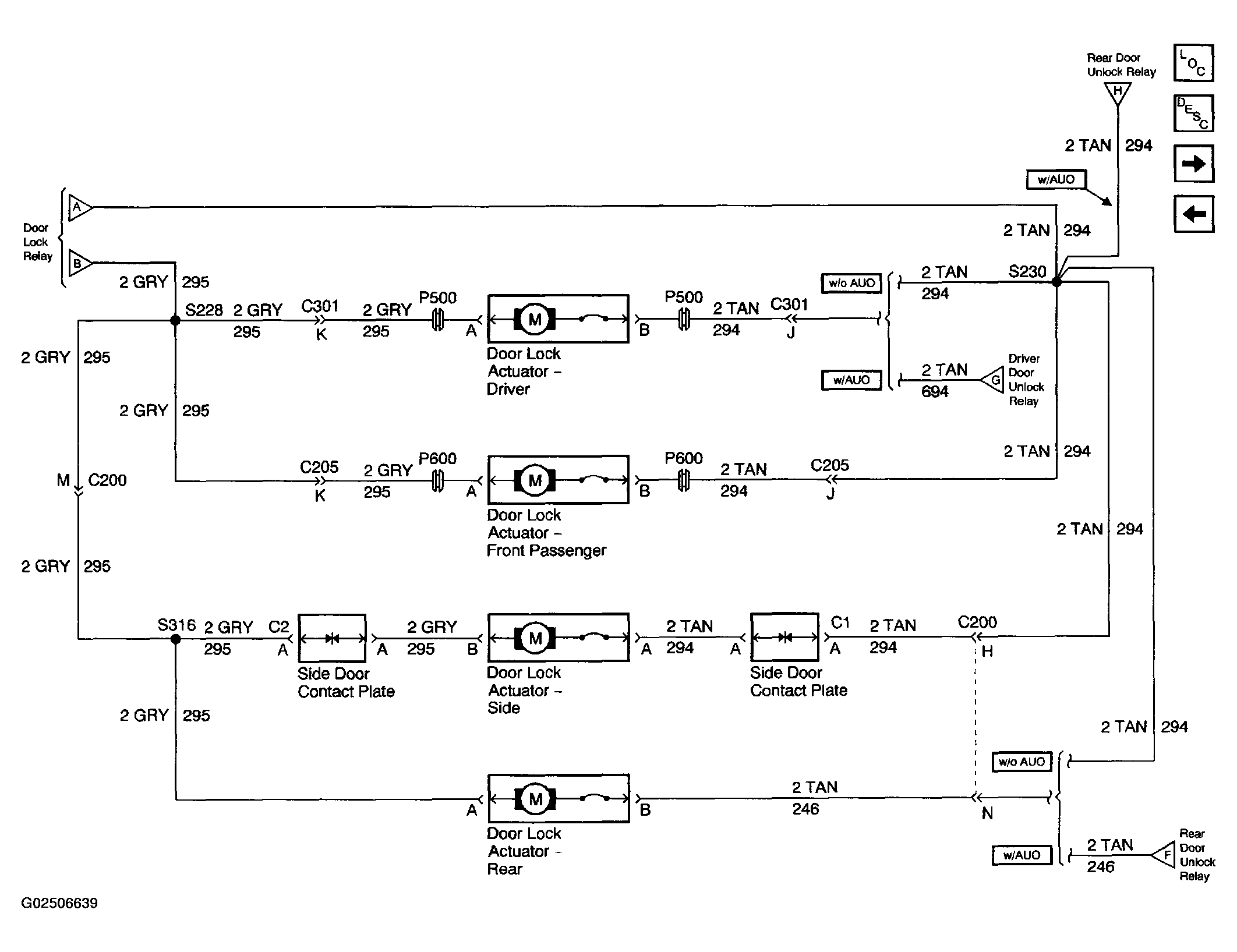

Fig 2: Door Lock/Indicator Wiring Schematic (Door Lock Actuators - ZW9)

Courtesy of GENERAL MOTORS CORP.

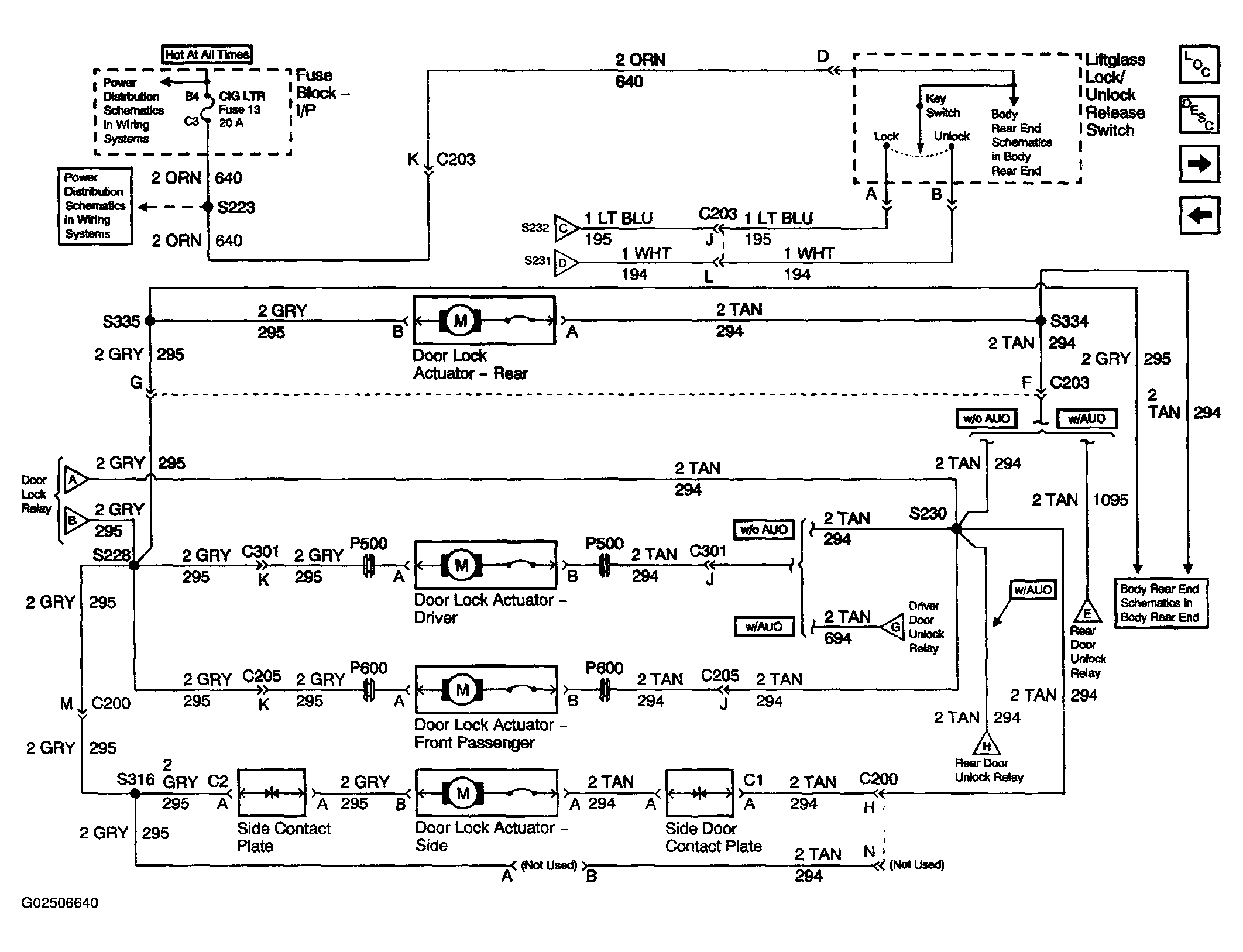

Fig 3: Door Lock/Indicator Wiring Schematic (Door Lock Actuators - E54))

Courtesy of GENERAL MOTORS CORP.

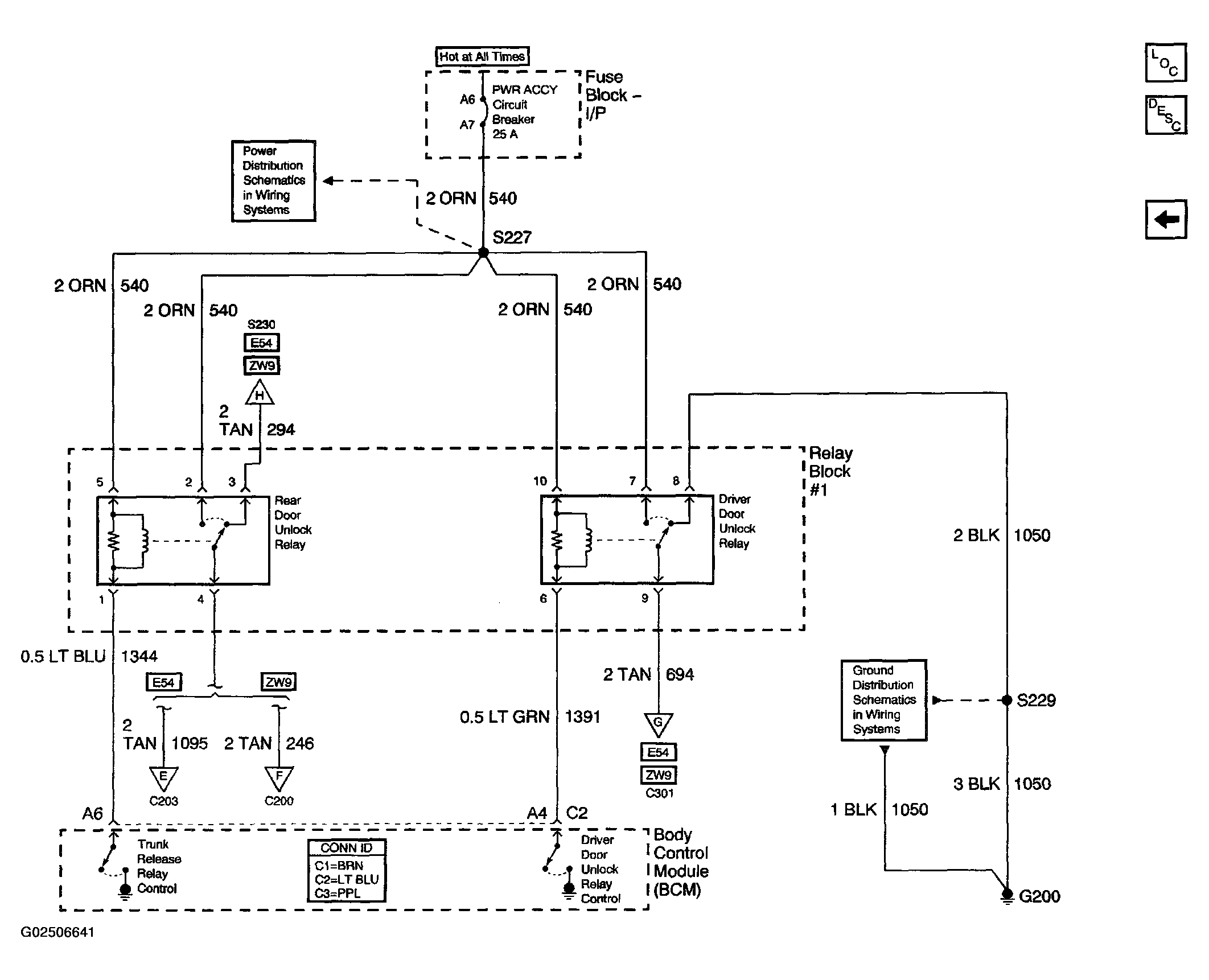

Fig 4: Door Lock/Indicator Wiring Schematic (Door Unlock Relays)

Courtesy of GENERAL MOTORS CORP.
