Removal Procedure

  1. Remove the trim panel. Refer to TRIM PANEL REPLACEMENT - DOOR  .
  2. Use a sharp bladed tool, if needed, in order to separate the water deflector at the perforations. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR  .
  3. Remove the lower run channel. Refer to Window Run Channel Replacement  .
  4. Remove the outer window sealing strip.
  5. Roll the window half-way down.

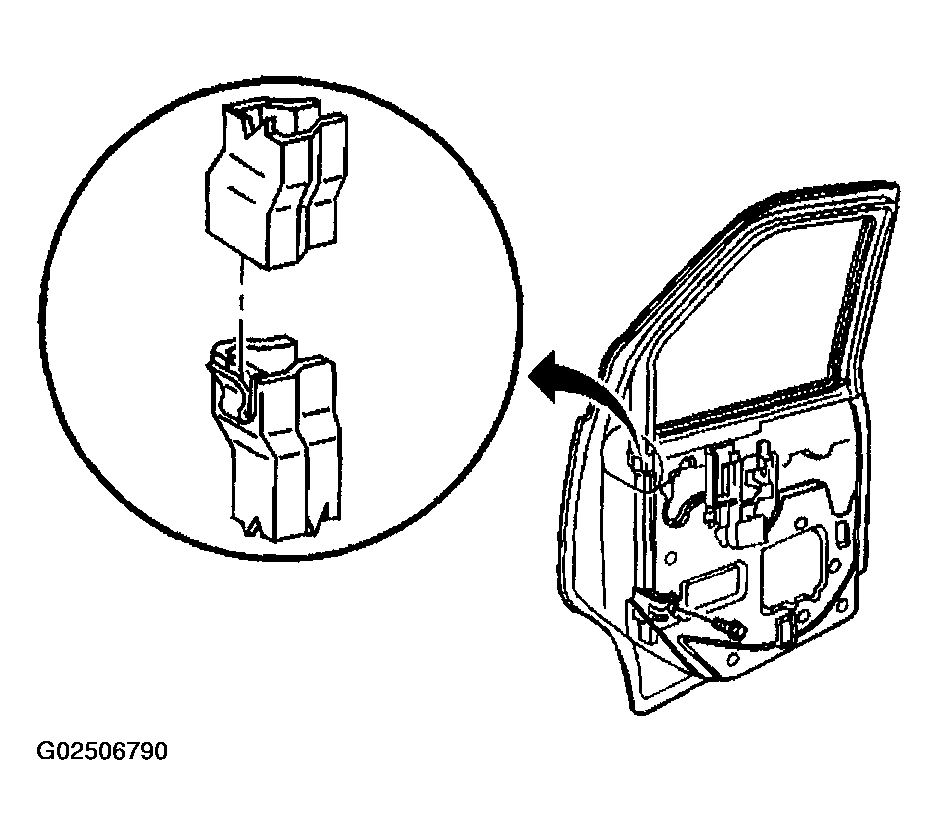

    6. Fig 1: Removing & Installing Front Door Lower Run Channel
    G02506790Courtesy of GENERAL MOTORS CORP.
  6. Remove the window from the regulator (3):
    1. Tip the edge of the window toward the front of the vehicle.
    2. Tip the window in toward the inside of the frame (4).
  7. Remove the window (1) from the door frame (4).

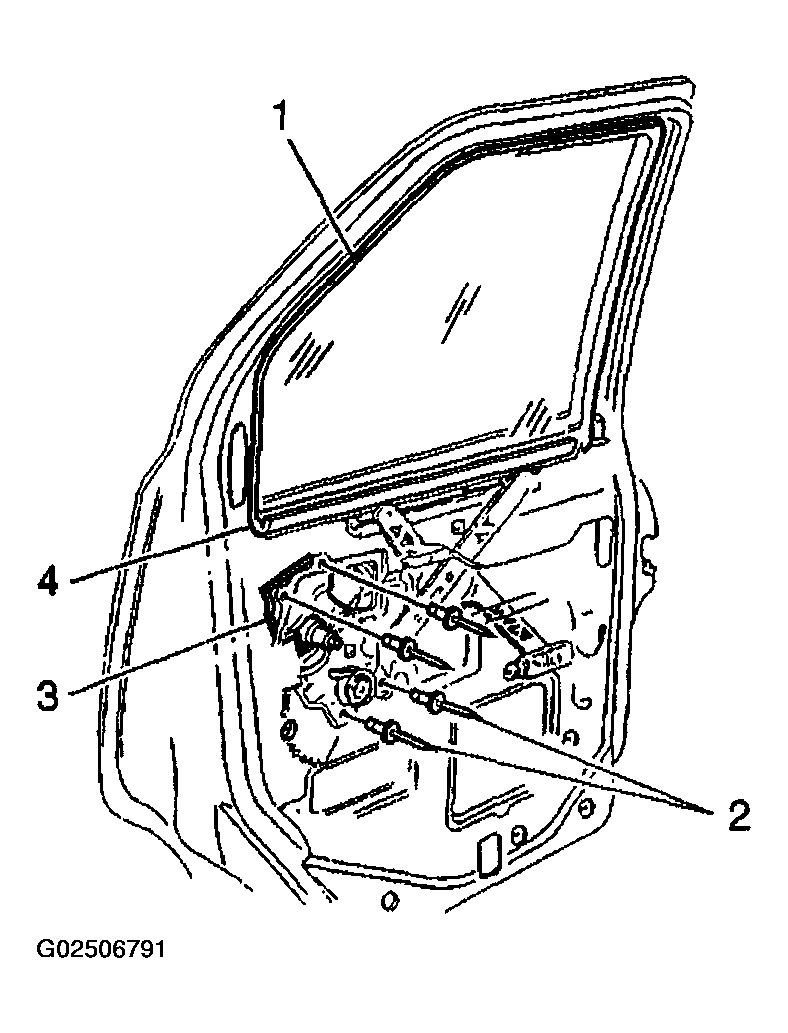

    8. Fig 2: Removing & Installing Front Door Window
    G02506791Courtesy of GENERAL MOTORS CORP.
