Installation Procedure

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Install the upper roller bracket (1) to the track.
  2. Install the bracket to door and bolts (4). Tighten:  Tighten the bracket bolts to the door to 25 N.m (18 lb ft).
  3. Install the front cap.
  4. Install the rubber stopper to the upper roller track.
  5. Install the upper roller bracket garnish molding.

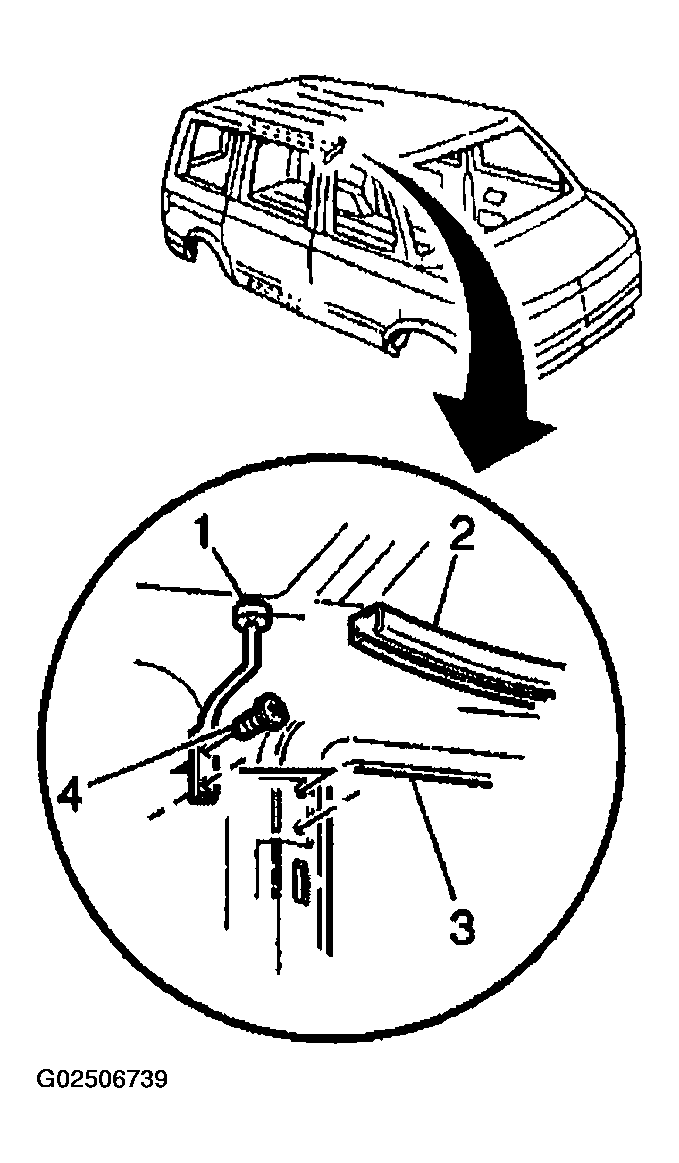

    6. Fig 1: Removing & Installing Upper Roller Bracket-To-Sliding Door Bolts
    G02506739Courtesy of GENERAL MOTORS CORP.
