Removal Procedure

  1. Remove the trim panel. Refer to TRIM PANEL REPLACEMENT - DOOR  .
  2. Use a sharp bladed tool in order to separate the water deflector at the perforations. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR  .
  3. Remove the lock rods from the front door lock.

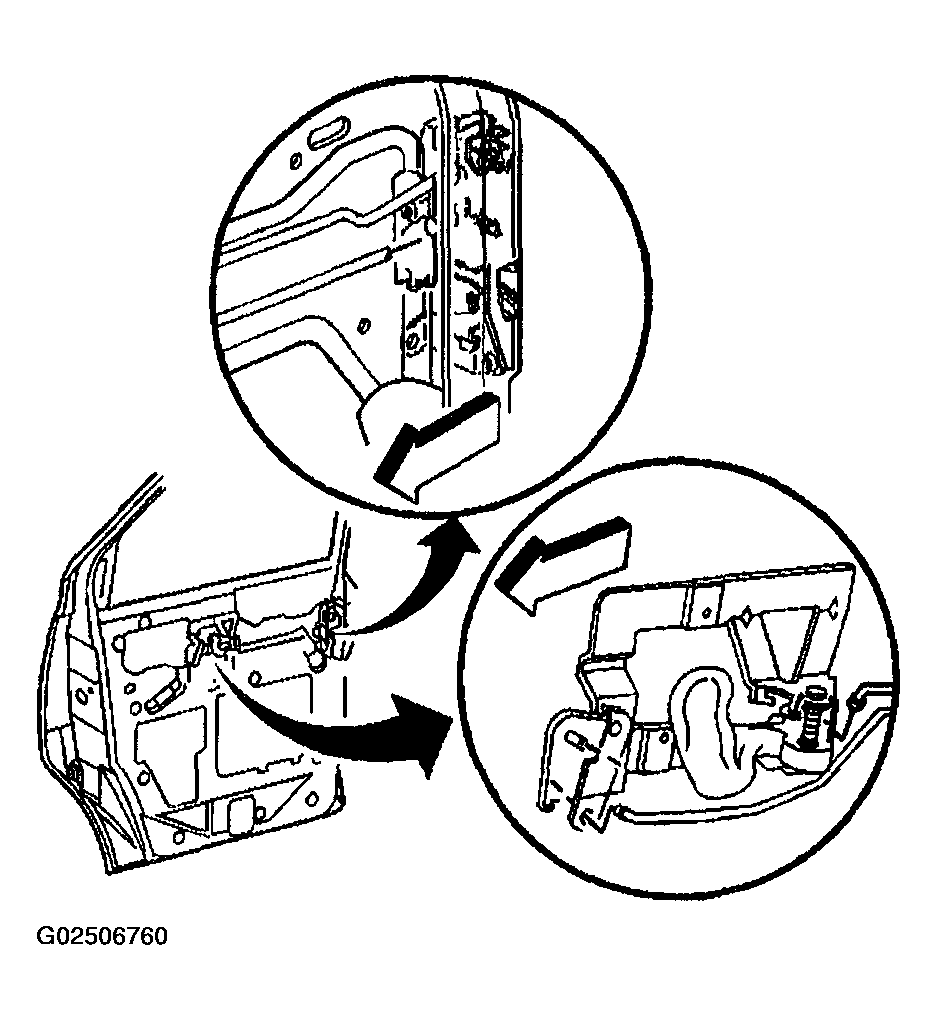

    4. Fig 1: Removing & Installing Front Door Lock Lever
    G02506760Courtesy of GENERAL MOTORS CORP.
  4. Remove the front door lock screws.
  5. Remove the front door lock from the door.

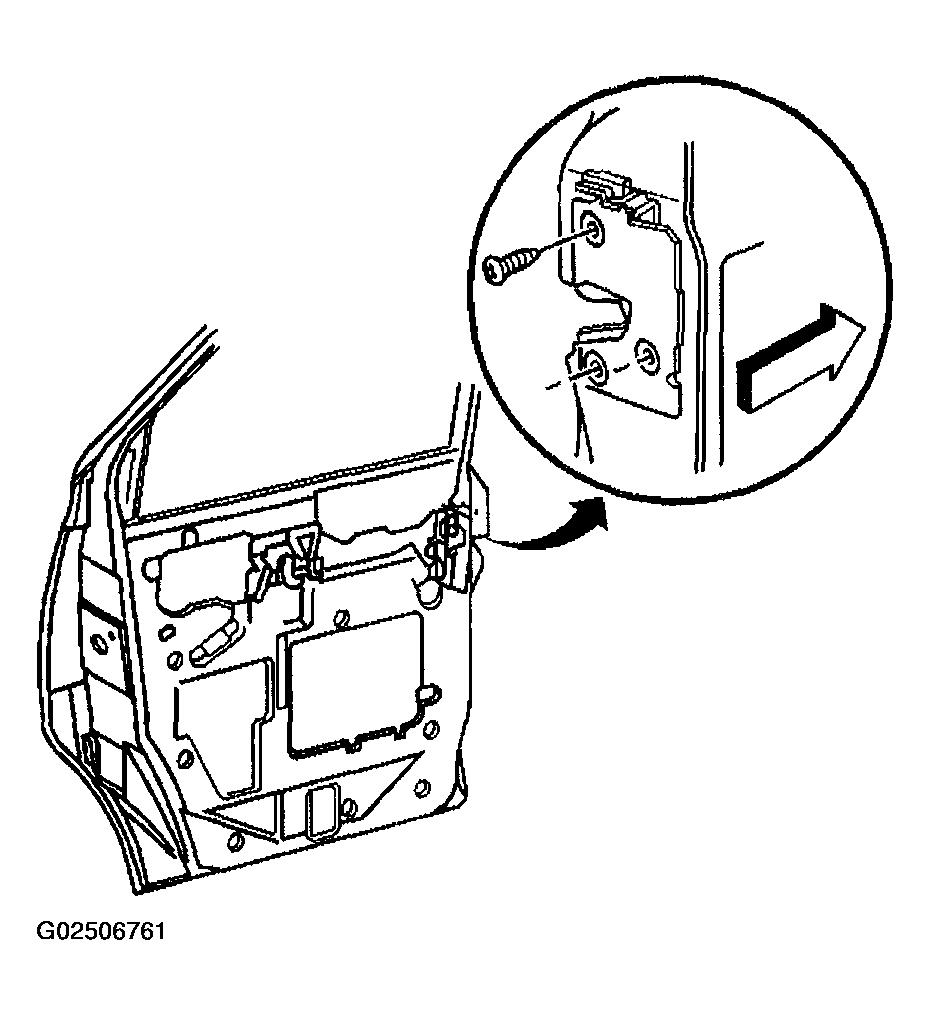

    6. Fig 2: Removing & Installing Front Door Lock
    G02506761Courtesy of GENERAL MOTORS CORP.
