Removal Procedure

  1. Remove the trim panel. Refer to TRIM PANEL REPLACEMENT - DOOR  .
  2. Remove the lock rod from the lock lever clip (2).

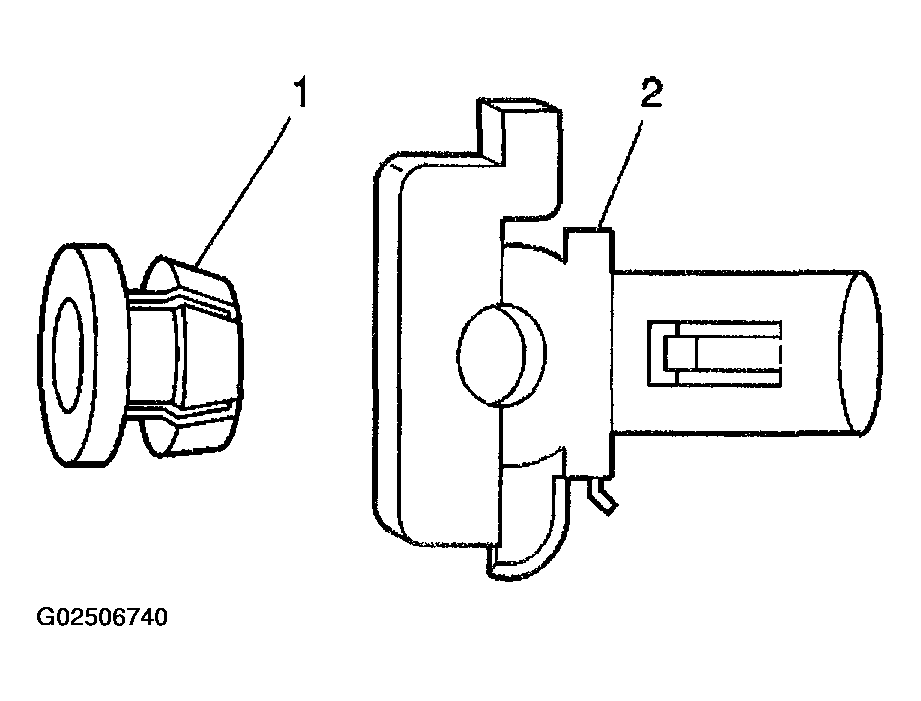

    Fig 1: Removing & Installing Front Door Lock Rod From Lock Lever Clip
    G02506740Courtesy of GENERAL MOTORS CORP.
  3. Remove the bolts that retain the lever to the door.

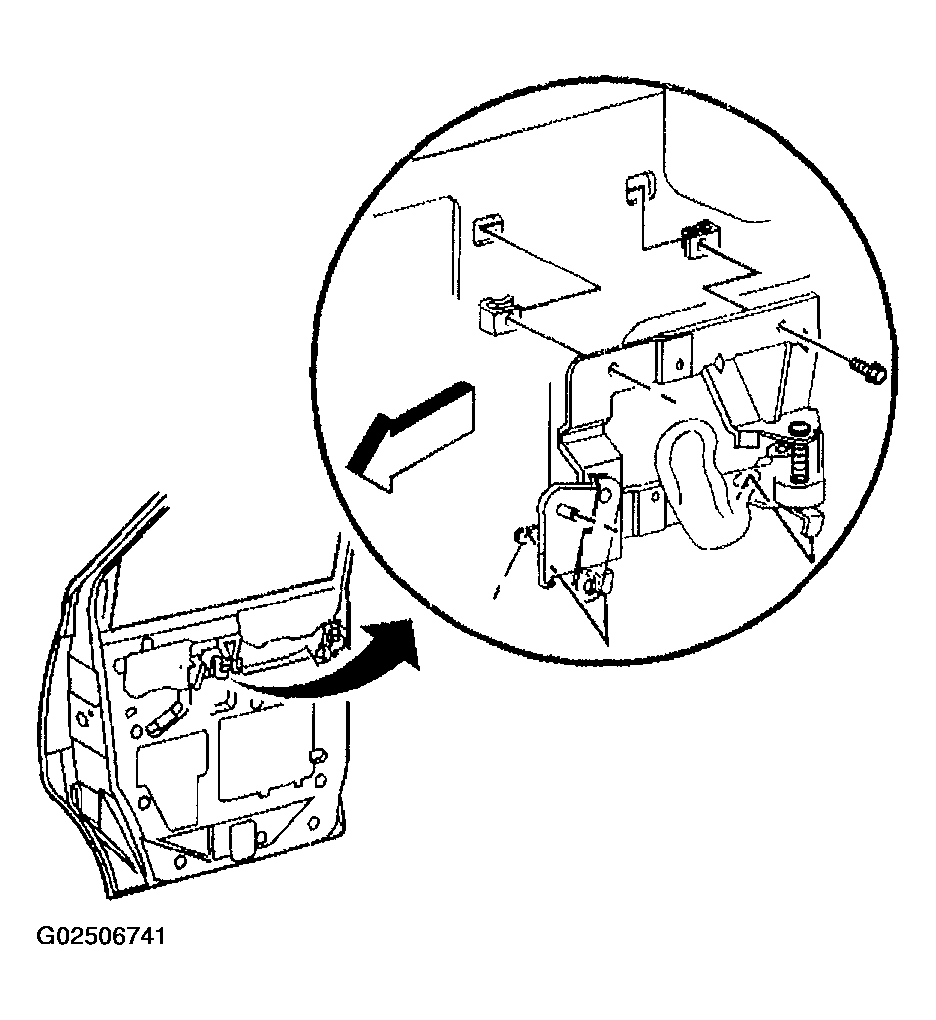

    Fig 2: Removing & Installing Front Door Lock Lever Bolts
    G02506741Courtesy of GENERAL MOTORS CORP.
  4. Remove the lock lever from the door.

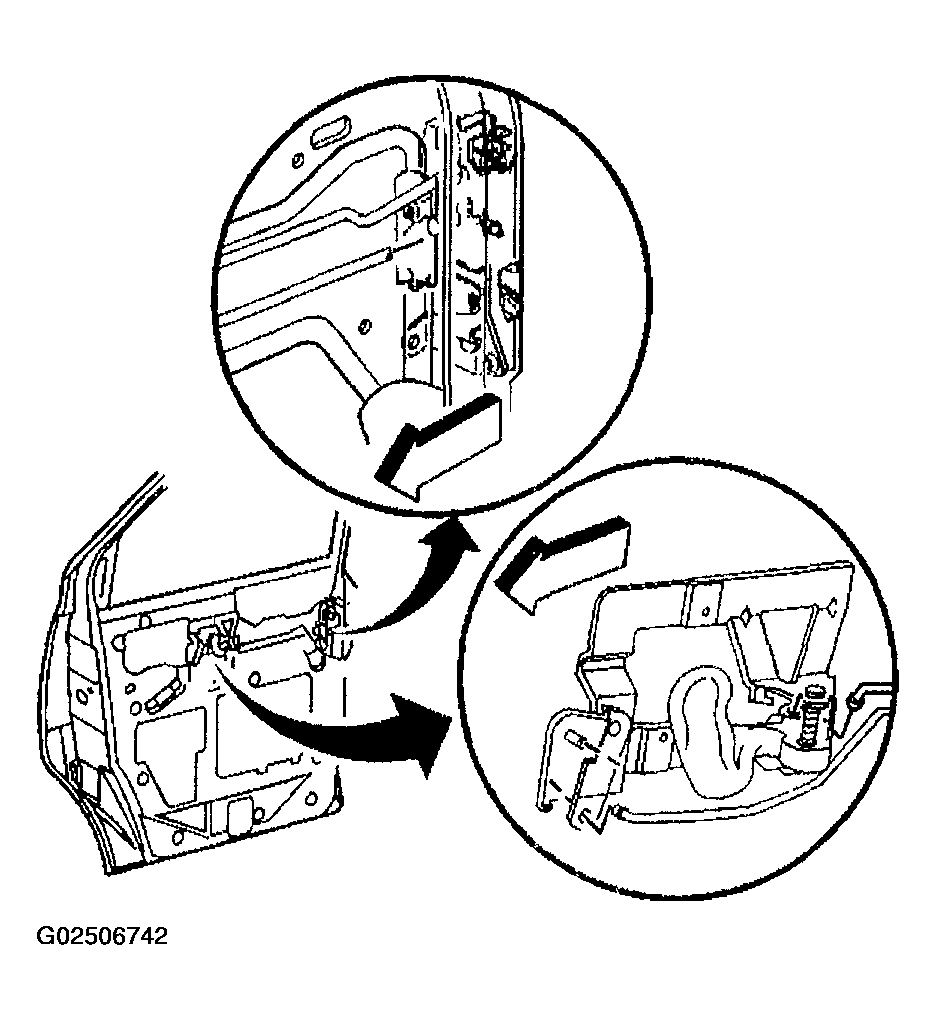

    Fig 3: Removing & Installing Front Door Lock Lever
    G02506742Courtesy of GENERAL MOTORS CORP.
