Installation Procedure

  1. Install the upper access cover (2) to the door.
    2. NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the screws (3) that retain the upper access cover to the door. Tighten:  Tighten the screws that retain the upper access cover to the door to 4 N.m (18 lb in).

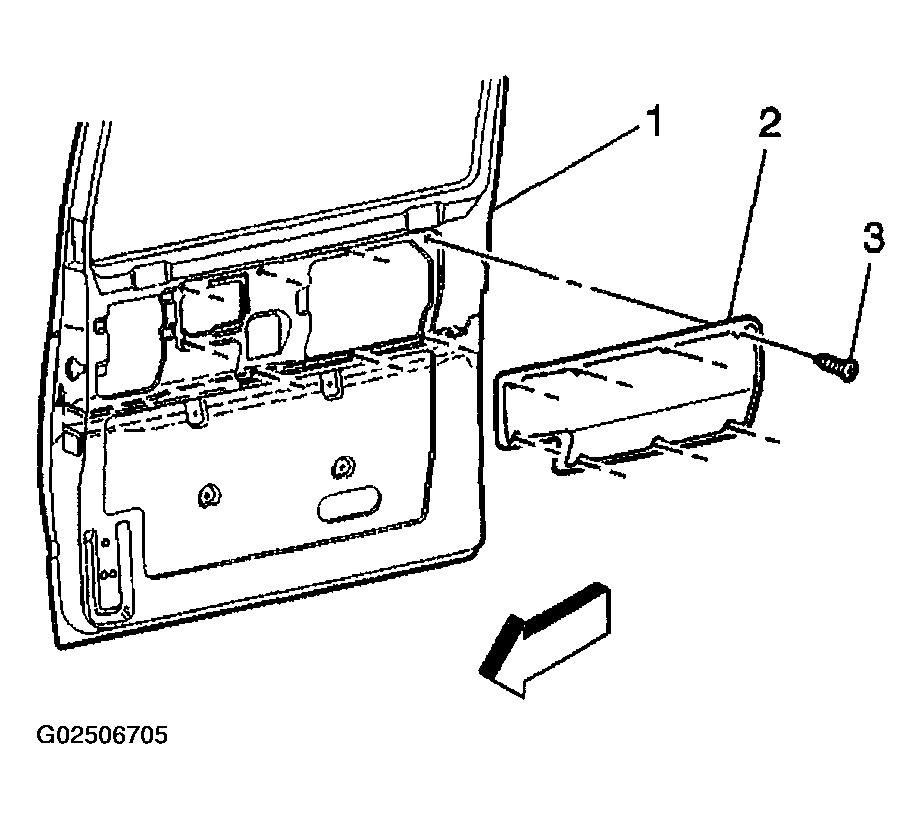

    3. Fig 1: Removing & Installing Cargo Van Upper Access Cover
    G02506705Courtesy of GENERAL MOTORS CORP.
