Power Seat Systems Connector End Views

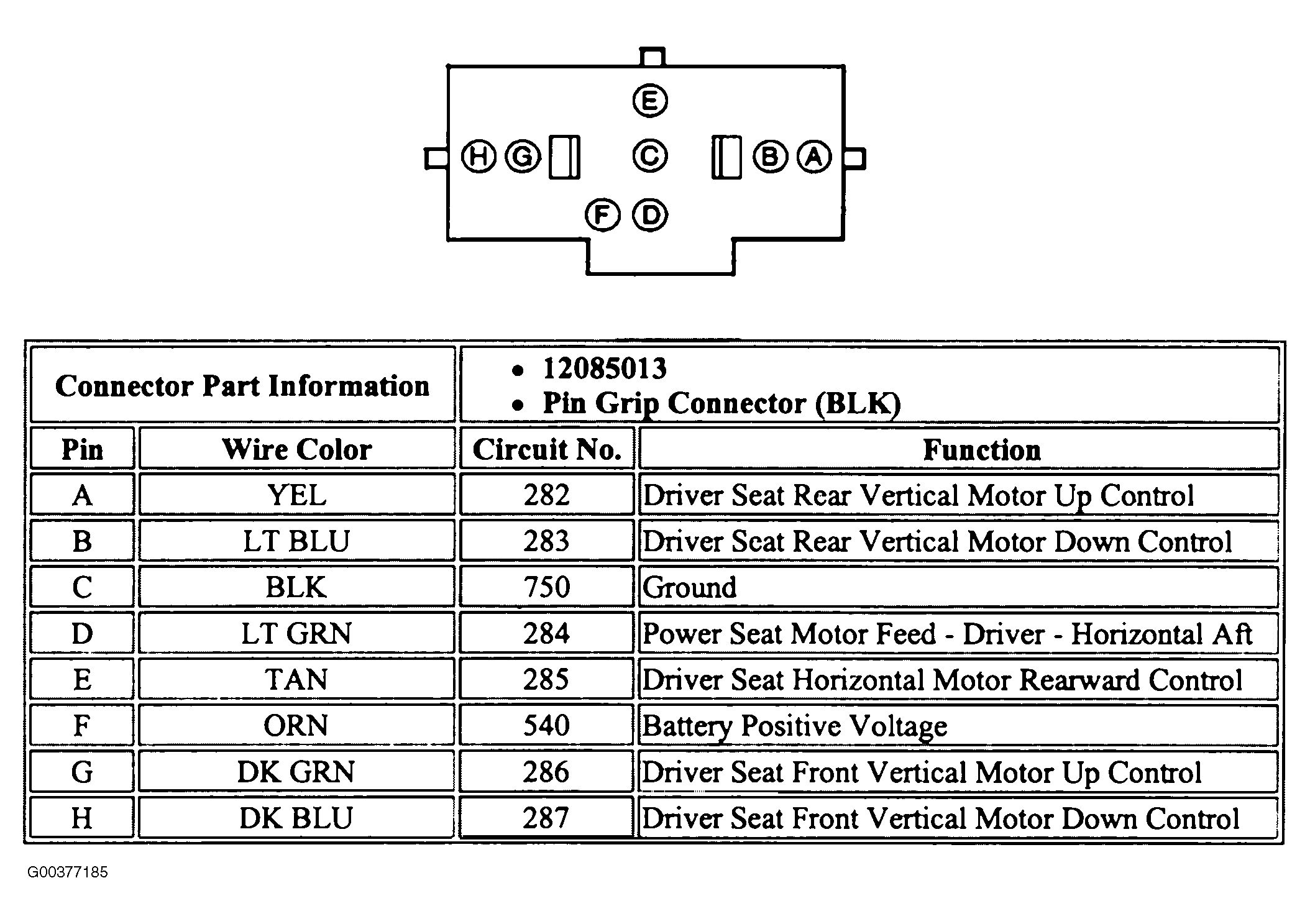

Fig 1: Seat Adjuster Switch - Driver Connector

G00377185

Courtesy of GENERAL MOTORS CORP.
