Steering Column Disassembled View (Standard Column)

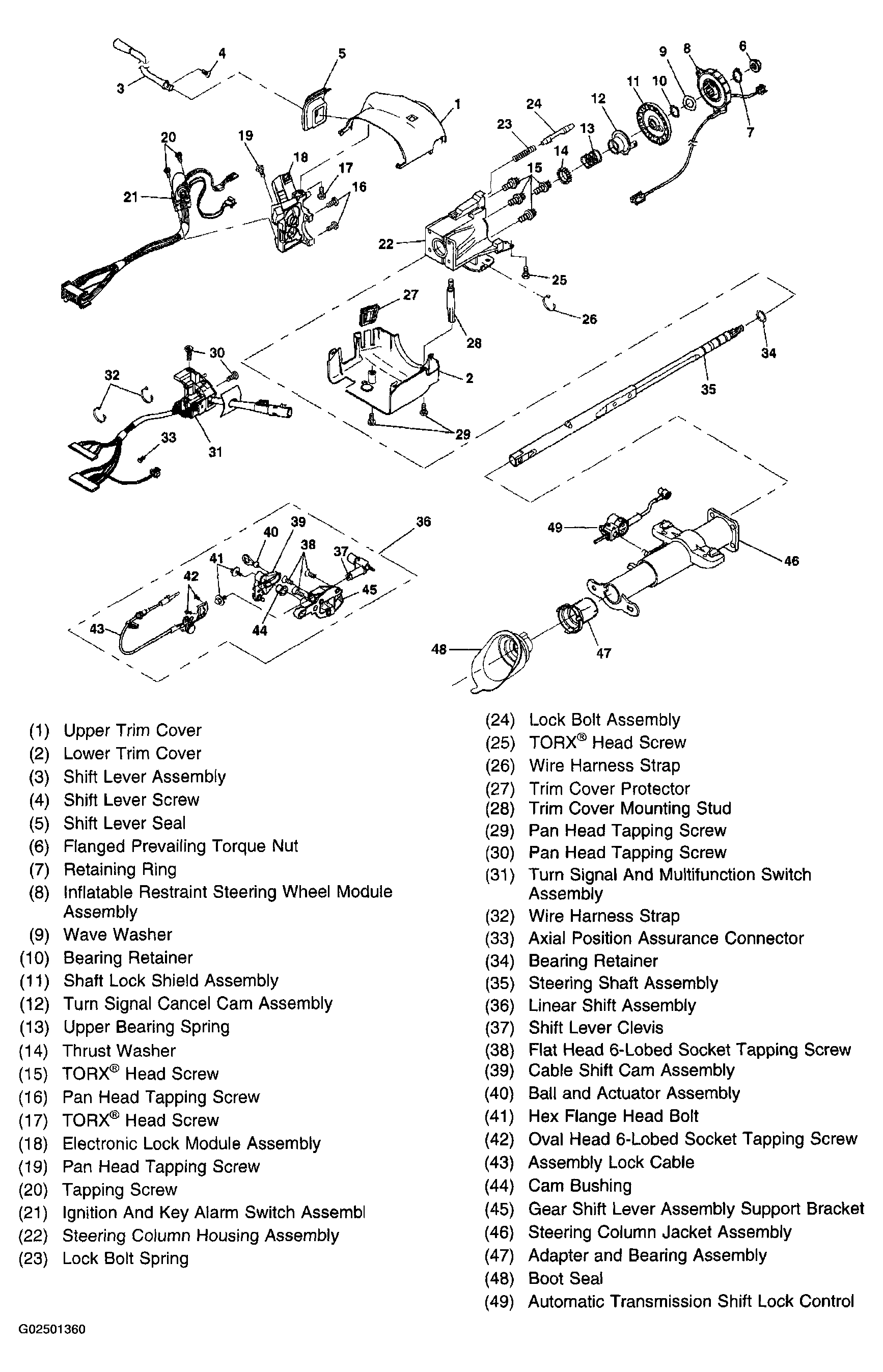

Fig 1: Exploded View Of Standard Steering Column

G02501360

Courtesy of GENERAL MOTORS CORP.
