Transmitter Reference Table

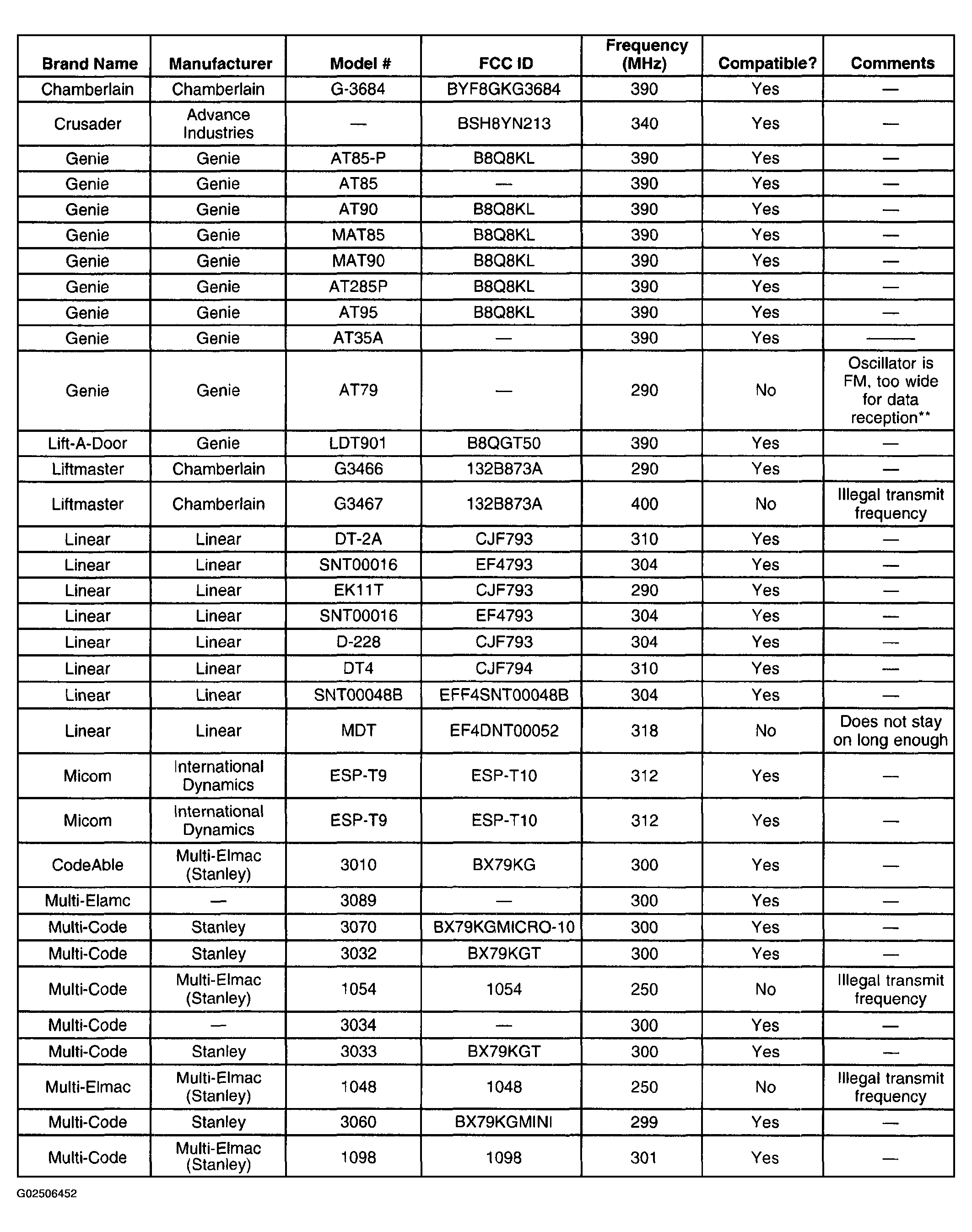

Fig 1: Transmitter Reference Table (1 Of 2)

G02506452

Courtesy of GENERAL MOTORS CORP.

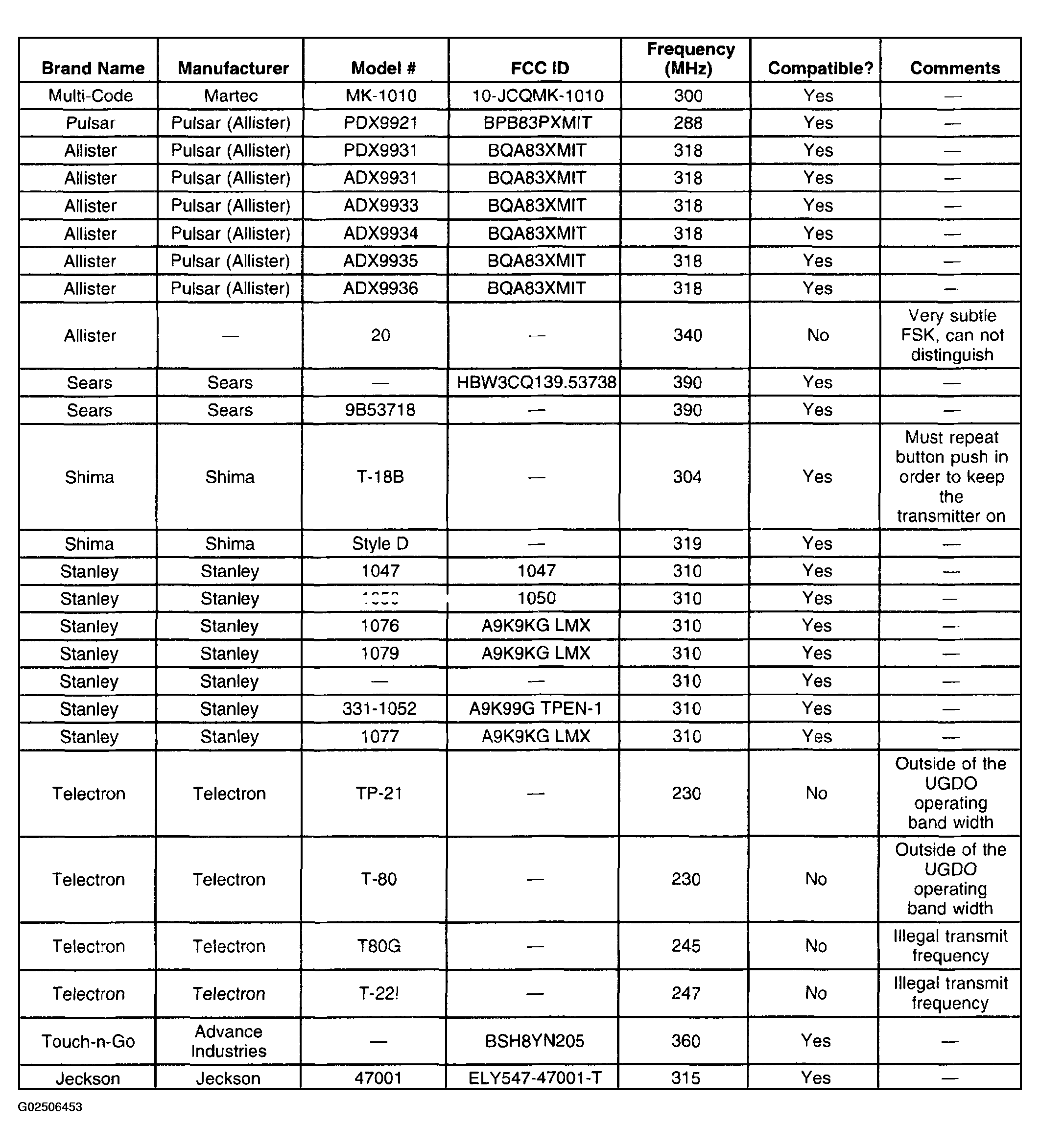

Fig 2: Transmitter Reference Table (2 Of 2)

G02506453

Courtesy of GENERAL MOTORS CORP.
