Installation Procedure

  1. Use the J 34094-A to set the middle thermo pin (123).
  2. Install the new thermo element plate (122).
  3. Install the pin and washer (120).
  4. Use the J 34094-A to set the height of the pin and washer (120) furthest from the accumulator.
  5. Use the J 34094-A to set the height of the second pin and washer (120).
  6. Carefully install the thermo element (121) between the two pin and washers (120). The V in the thermo element (121) must contact the thermo element plate (122).

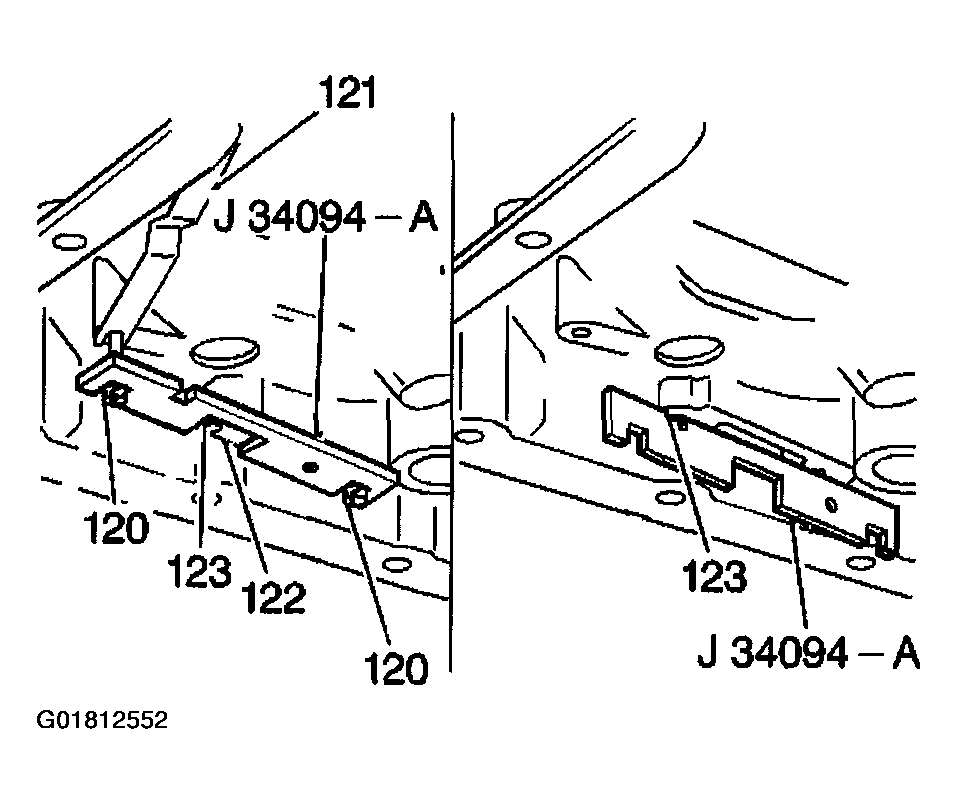

    Fig 1: J 34094-A, Thermo Element, Pin & Washer
    G01812552Courtesy of GENERAL MOTORS CORP.
  7. Install the oil pan. Refer to Oil Pan Replacement  .
  8. Refill fluid as necessary. Refer to Capacities -Approximate Fluid on page 0-32.

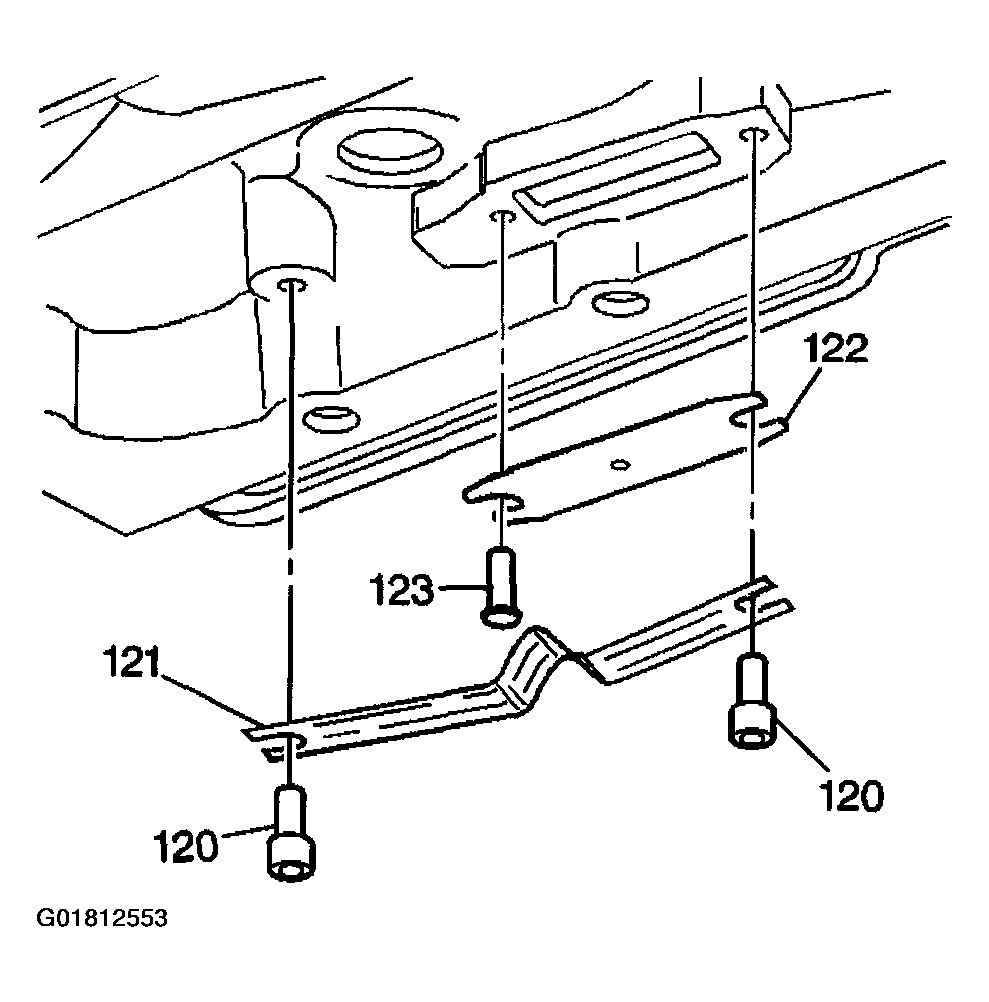

    Fig 2: Installing Thermo Element, Pins & Washers
    G01812553Courtesy of GENERAL MOTORS CORP.
