Installation Procedure

  1. Install the servo spring.
  2. Install the servo piston assembly.
  3. Install the forward servo cover O-ring.
  4. Install the forward servo cover.
    NOTE: Refer to FASTENER NOTICE
  5. Install the forward band servo cover bolts.

    Tighten

    Tighten the bolts to 12 N.m (106 lb in).

  6. Remove the drain pan from under the forward servo cover.

    Important:  Ensure that the power steering cooler line does not become trapped or damaged during this step.

  7. Use the utility stand in order to raise the frame rear.
  8. Install the NEW frame bolts.
  9. Adjust the utility straps as necessary in order to align the powertrain mounts with the frame.
  10. Install the transaxle mount nuts. Refer to Automatic Transmission Mount Replacement
  11. Install the engine mount nuts. Refer to ENGINE MOUNT REPLACEMENT .
  12. Install the power steering gear to the frame.
  13. Install the power steering gear heat shield.
  14. Install the stabilizer shaft. Refer to STABILIZER SHAFT REPLACEMENT .
  15. Lower the vehicle.

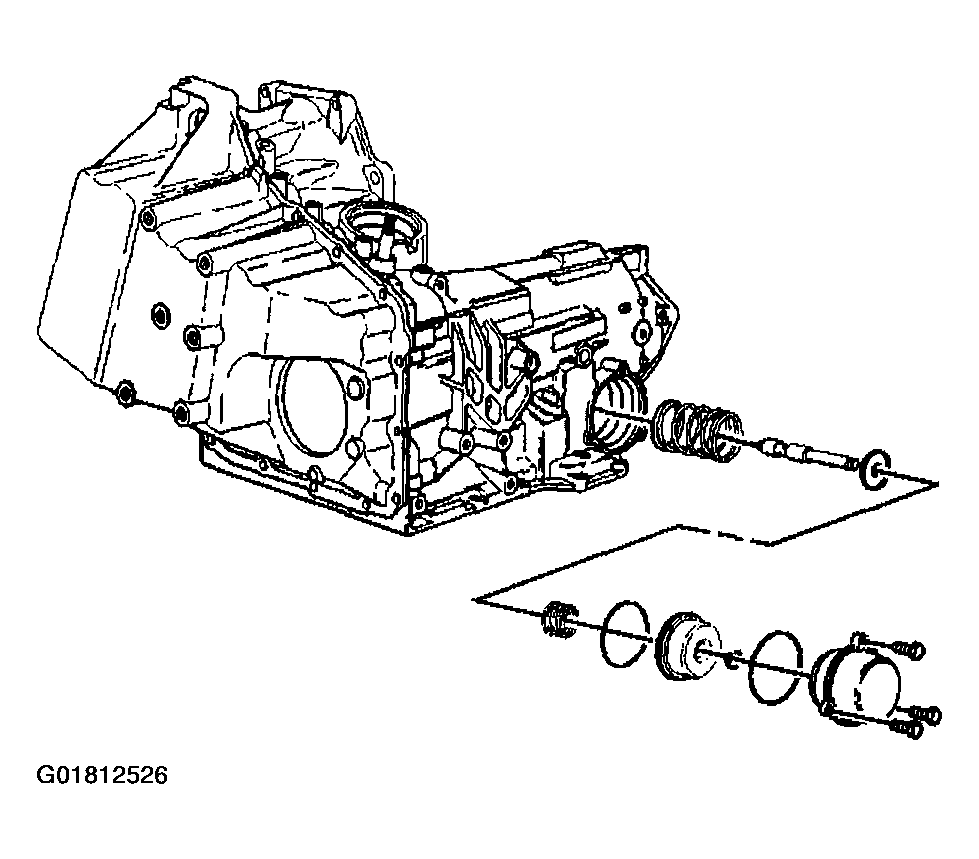

    Fig 1: Installing Forward Band Servo Cover, Bolts, O-Ring & Spring
    G01812526Courtesy of GENERAL MOTORS CORP.
  16. Remove the engine support fixture. Refer to ENGINE SUPPORT FIXTURE .
  17. Adjust the fluid level. Refer to Transmission Fluid Checking Procedure  .
