Component Locations

For fuse and circuit breaker identification, see Fig 1 .

COMPONENT LOCATIONS

Component Location
Instrument Panel Fuse Block Behind Right Side Instrument Panel Endcap
Relay Block Right Side Of Instrument Panel, On Body Control Module Mounting Bracket
Underhood Junction Block Right Front Of Engine Compartment, Above Battery

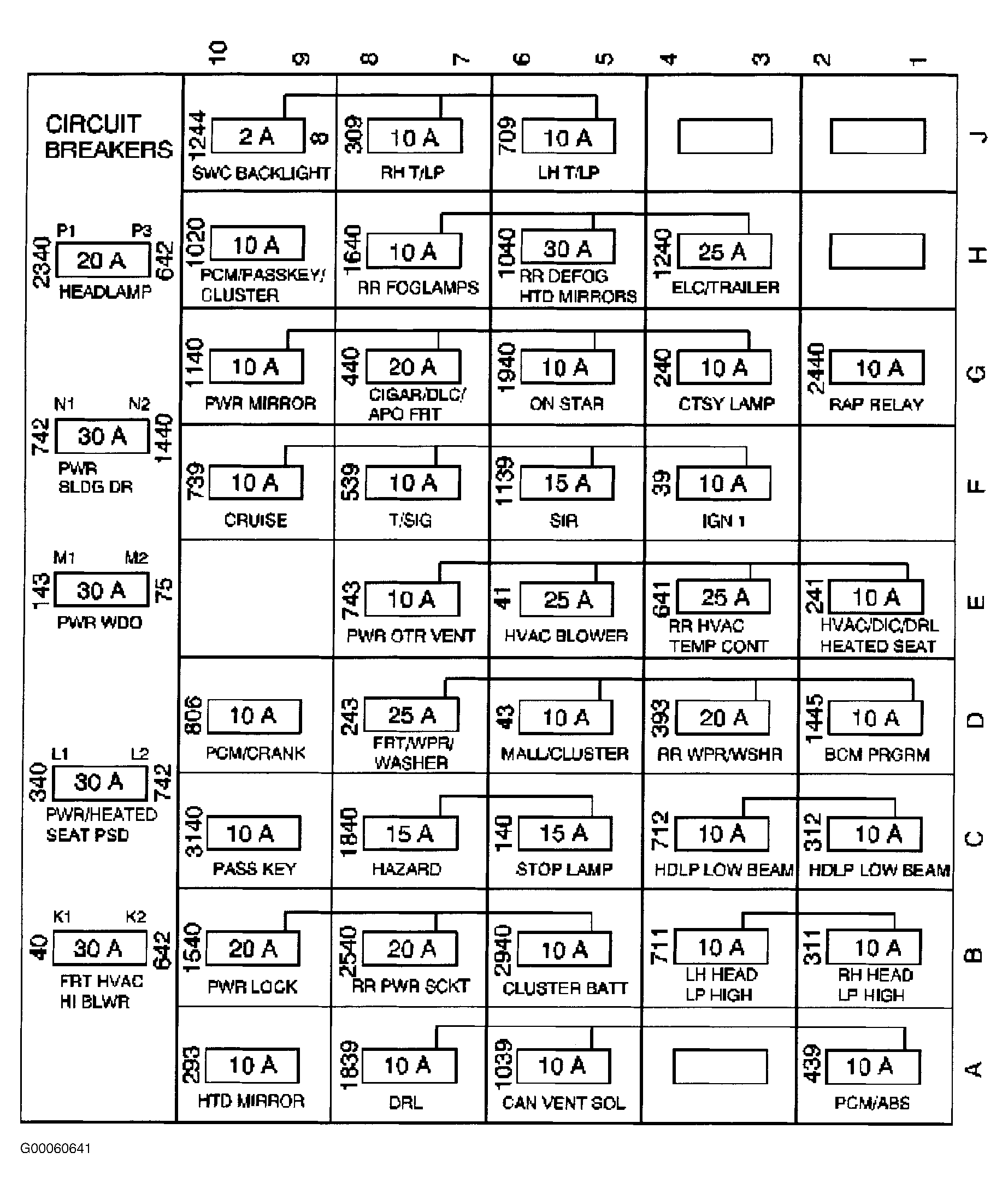

Fig 1: Identifying Instrument Panel Circuit Breakers & Fuses
G00060641Courtesy of GENERAL MOTORS CORP.
