Front Wiper Drive System Module: Installation

  1. Position wiper drive system module to air inlet panel.

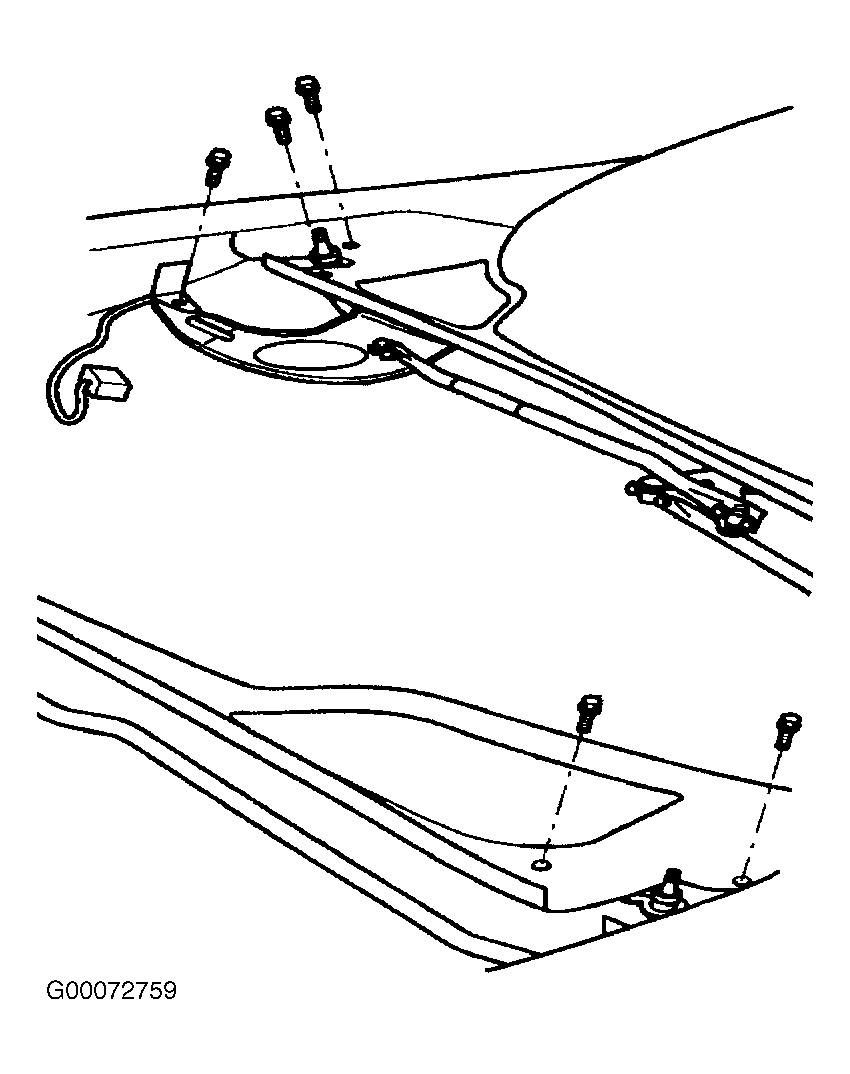

  2. Install wiper drive system module screws. See Figure . Tighten screws to 89 INCH lbs. (10 N.m).
  3. Install wiper motor. See WIPER MOTOR  .
  4. Install cruise control and bracket. See CRUISE CONTROL SYSTEMS - MONTANA, SILHOUETTE & VENTURE article.
  5. Install air inlet grille panel. See AIR INLET GRILLE PANEL  .
  6. Install wiper arms. See WIPER ARMS  .
  7. Inspect wiper for proper operation.
