Rear Door Trim Panel: Installation

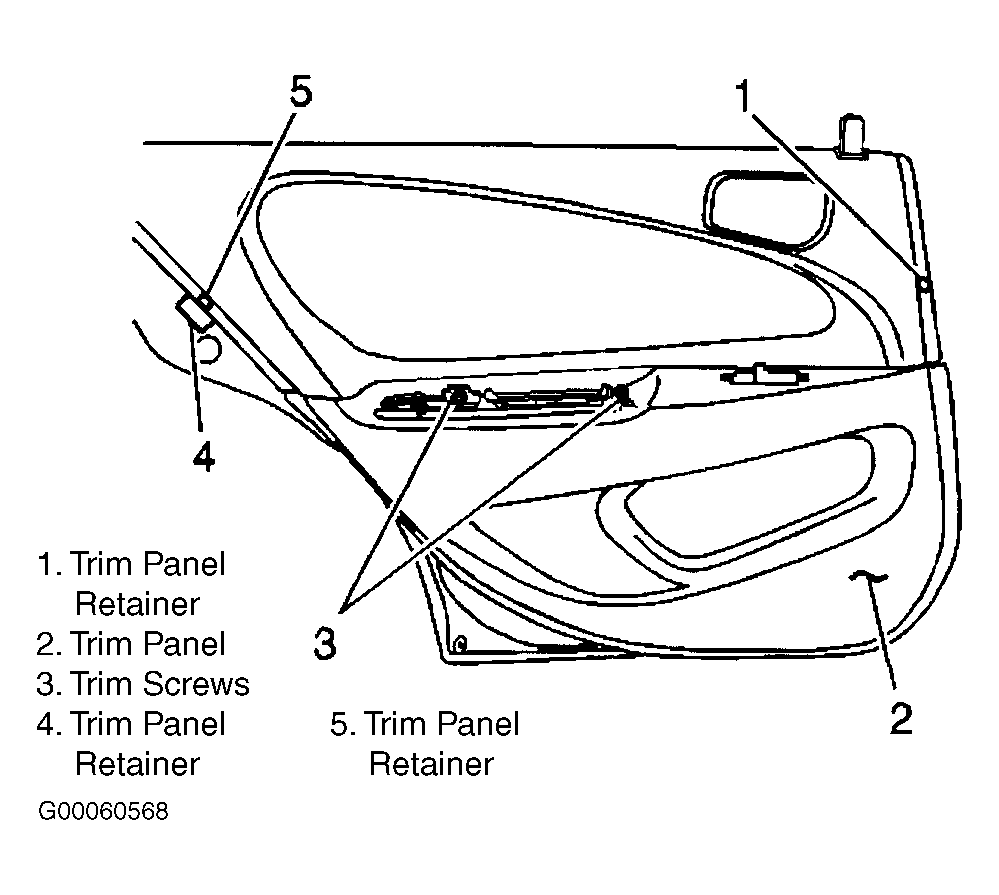

  1. Position and install rear side door trim (2) to door and press plastic retainers into place. Ensure plastic retainers are completely engaged. Secure door trim with 2 plastic retainers (1, 5). See Figure .
  2. Connect rear side door window switch electrical connector.
  3. Install rear side door window switch bezel to rear side door trim.
  4. Install 2 screws (3) that retain rear door trim panel (2).
  5. Install trim cover to rear side door armrest.
  6. Install handle rod clip. Slide handle rearward and install screw.
