Cruise Control Servo: Installation
- Install cruise control servo to cruise control bracket. Secure servo with 4 screws.

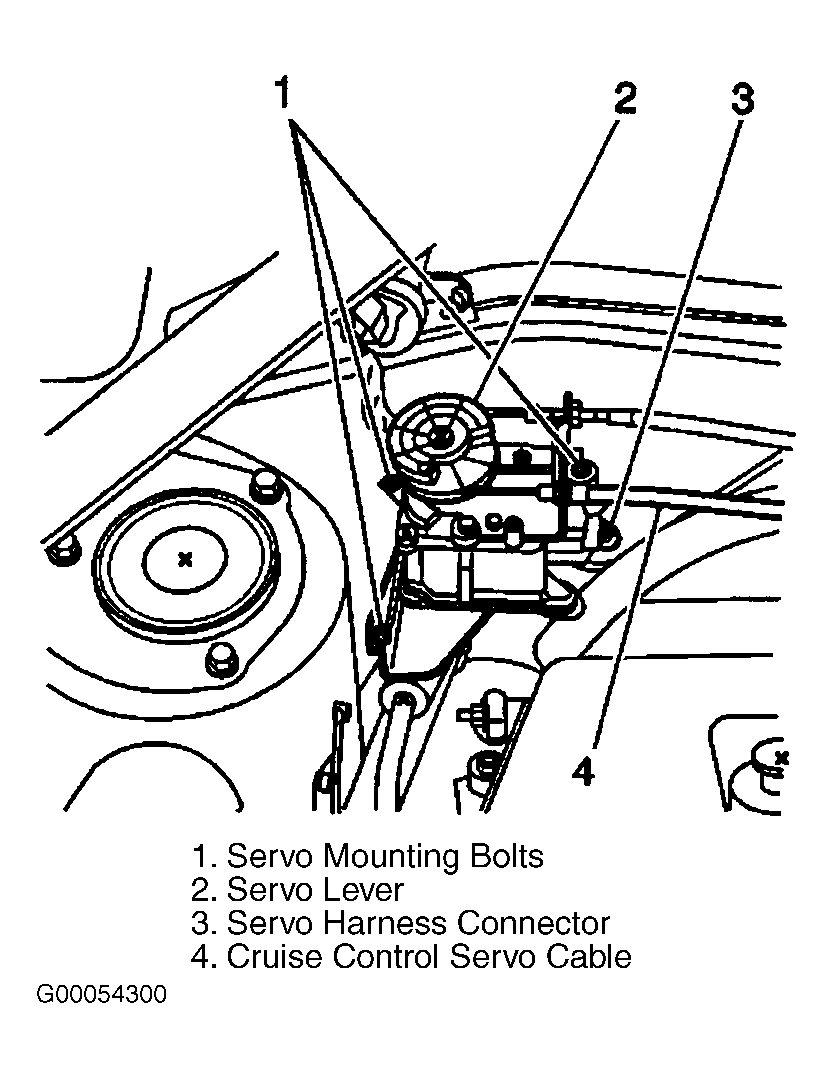

- Install cruise control servo and bracket to vehicle. Secure servo and bracket with 3 bolts (1). See Figure . Tighten cruise control servo mounting bolts to 89 INCH lbs. (10 N.m).
- Connect cruise control servo electrical connector (3).

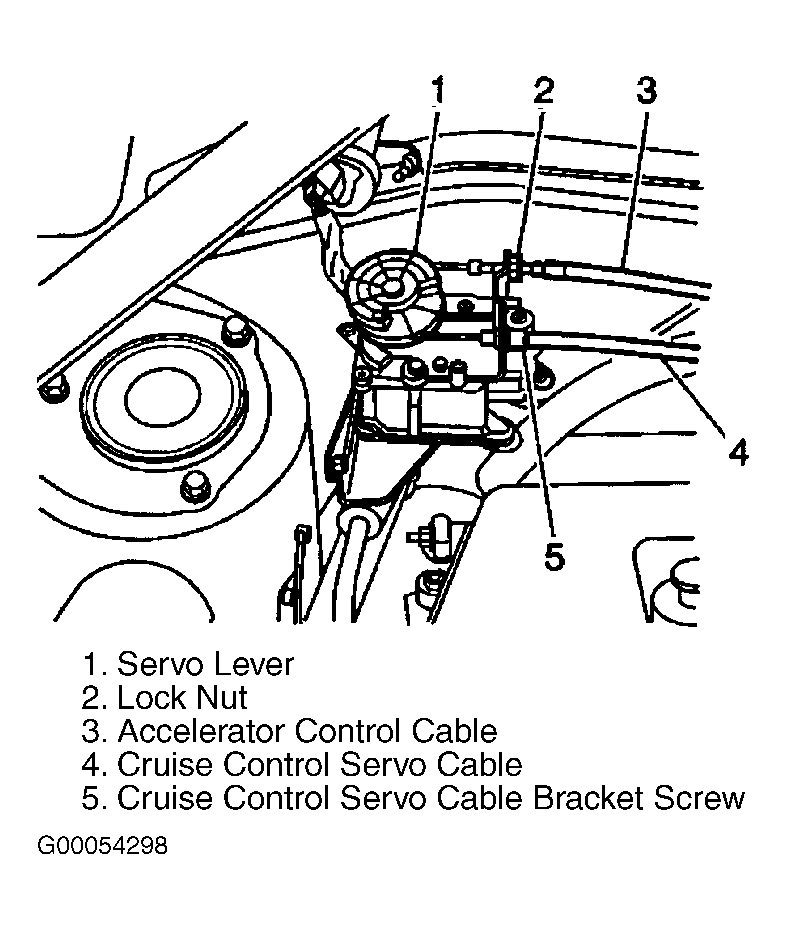

- Install cruise control servo cable (4) to servo lever (1) and bracket. See Figure . Secure cruise control cable servo cable bracket with one screw.
- Install accelerator control cable to servo lever (1) and bracket. Adjust cable adjusting lock nut to allow slight freedom of movement between accelerator control cable and servo lever.
- Secure accelerator cable lock nut (2). Tighten accelerator cable adjusting lock nut to 71 INCH lbs. (8 N.m).

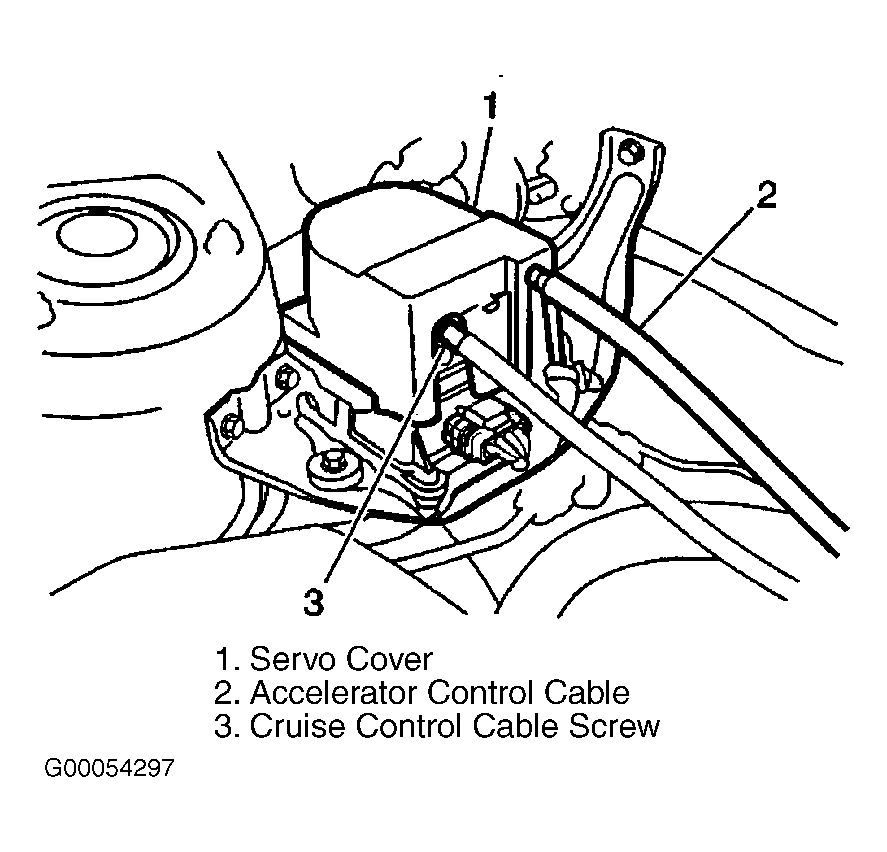

- Install cruise control servo cover (1). See Figure .
