Cruise Control Module: Removal

Disconnect negative battery cable. Remove air cleaner assembly from vehicle (if necessary). Disconnect electrical connector from cruise control module. Disconnect cruise control cable. Remove nuts that retain cruise control module to cruise control bracket. Remove cruise control module. See Fig 1 .

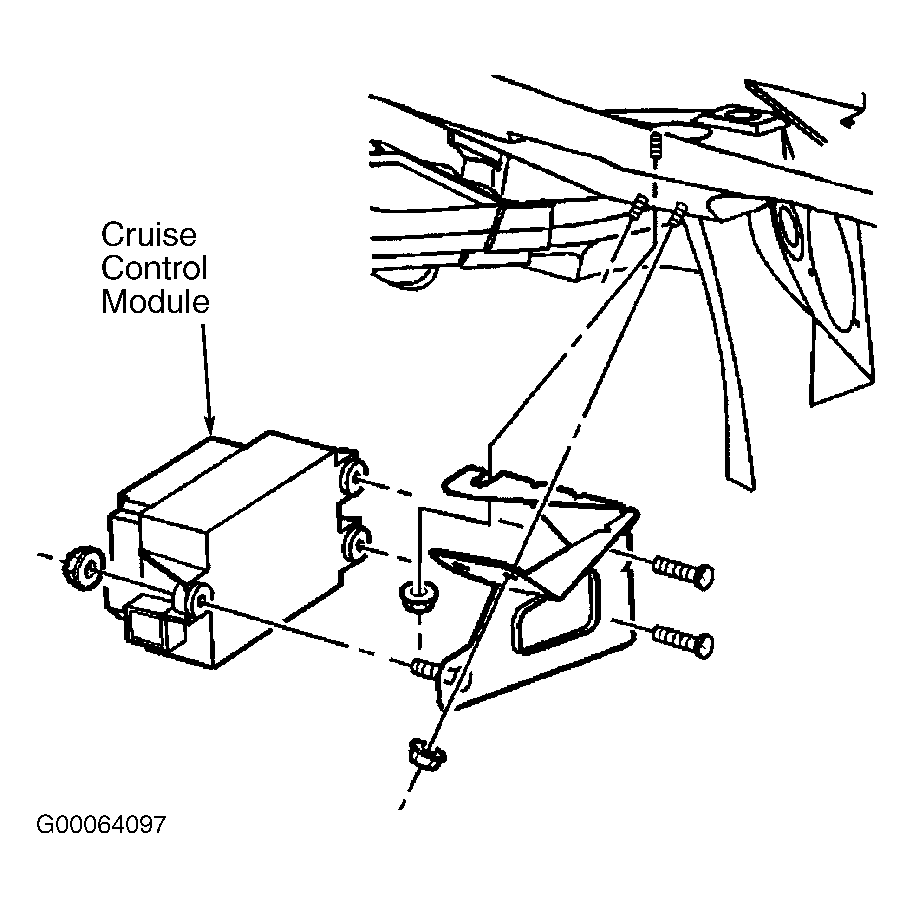

Fig 1: Removing/Installing Cruise Control Module

Courtesy of GENERAL MOTORS CORP.
