Installation Procedure

  1. Install the lock rod lever to the door.
    NOTE: Install new plastic retainer clips whenever the lock rods are removed.

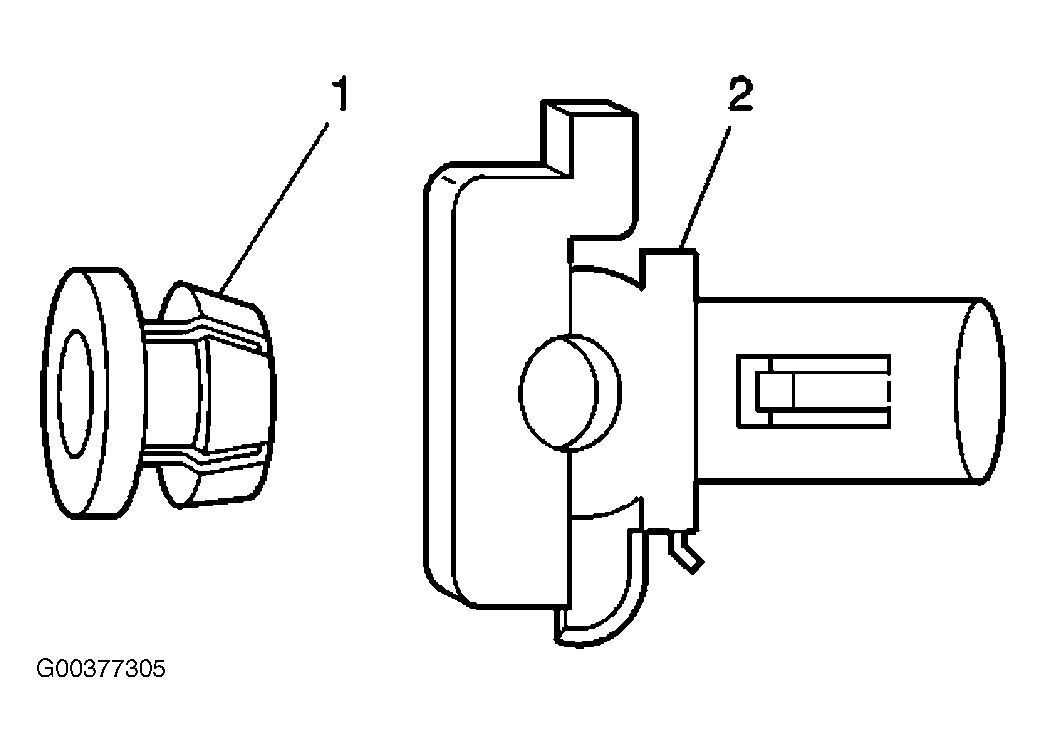

  2. Install the remote lock lever to the clip (2). See Figure.
  3. Use the M 39010 in order to install door rivets.

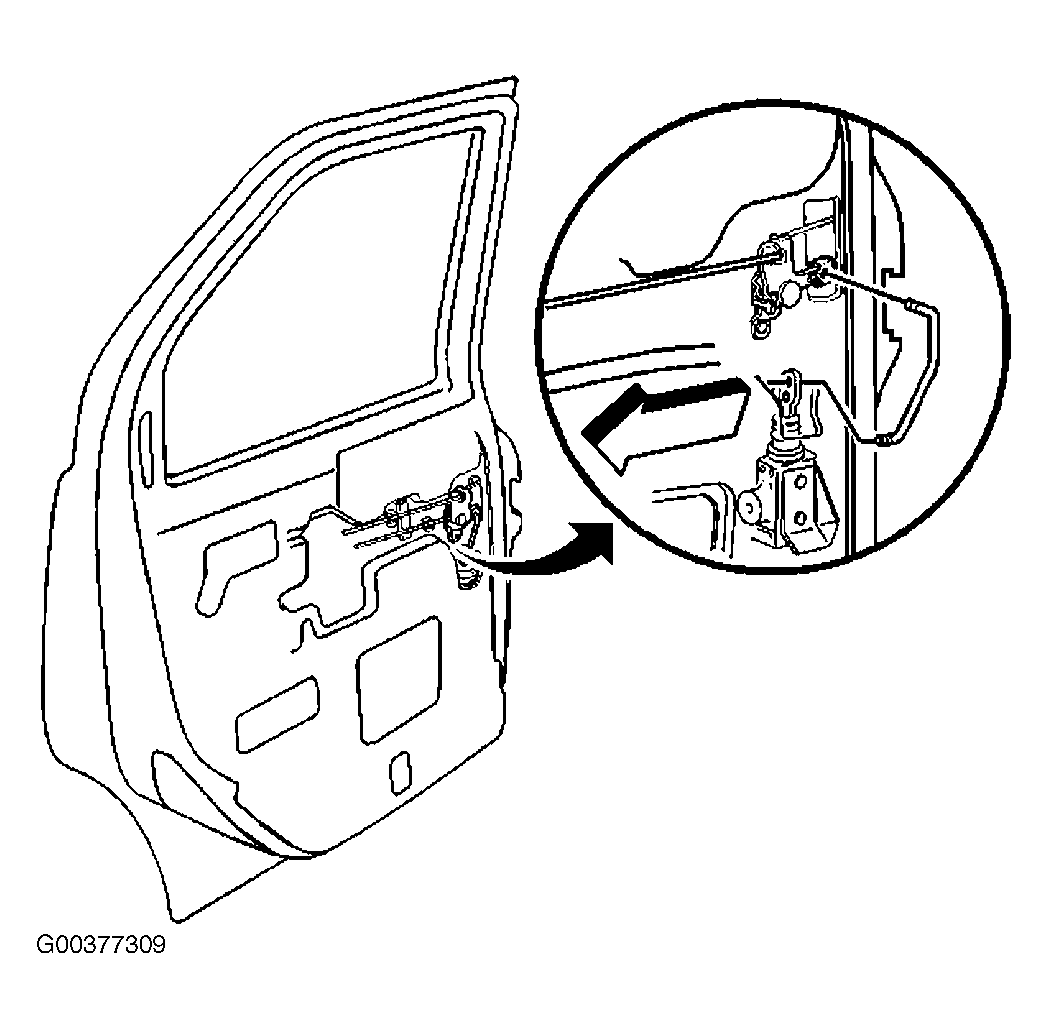

  4. Install the lock rods to the remote lock lever. See Figure.
  5. Install the water deflector and the armrest bracket. Refer to Water Deflector Replacement - Front Door .
  6. Install the trim panel. Refer to Trim Panel Replacement - Door .
