Power Door Systems Connector End Views

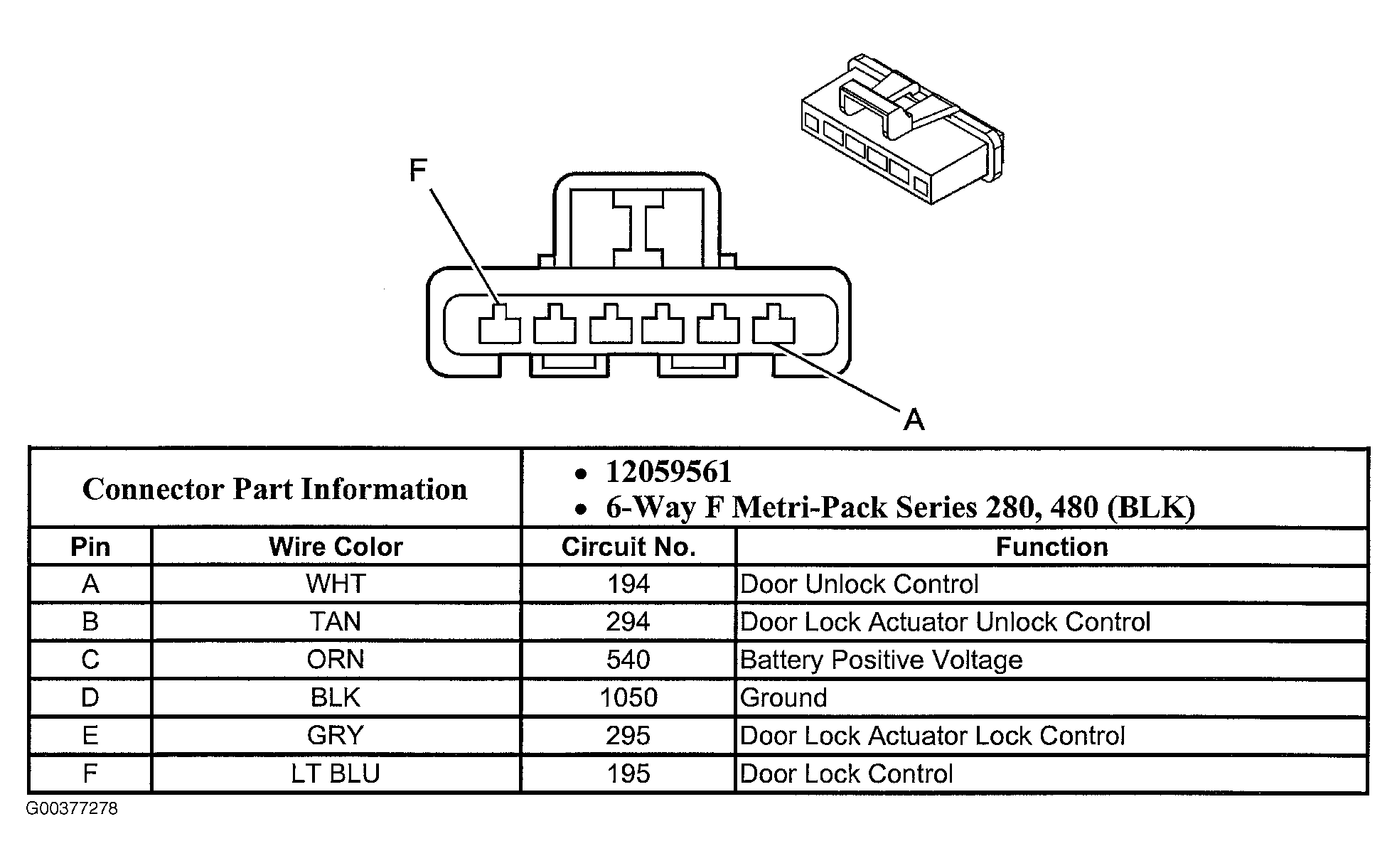

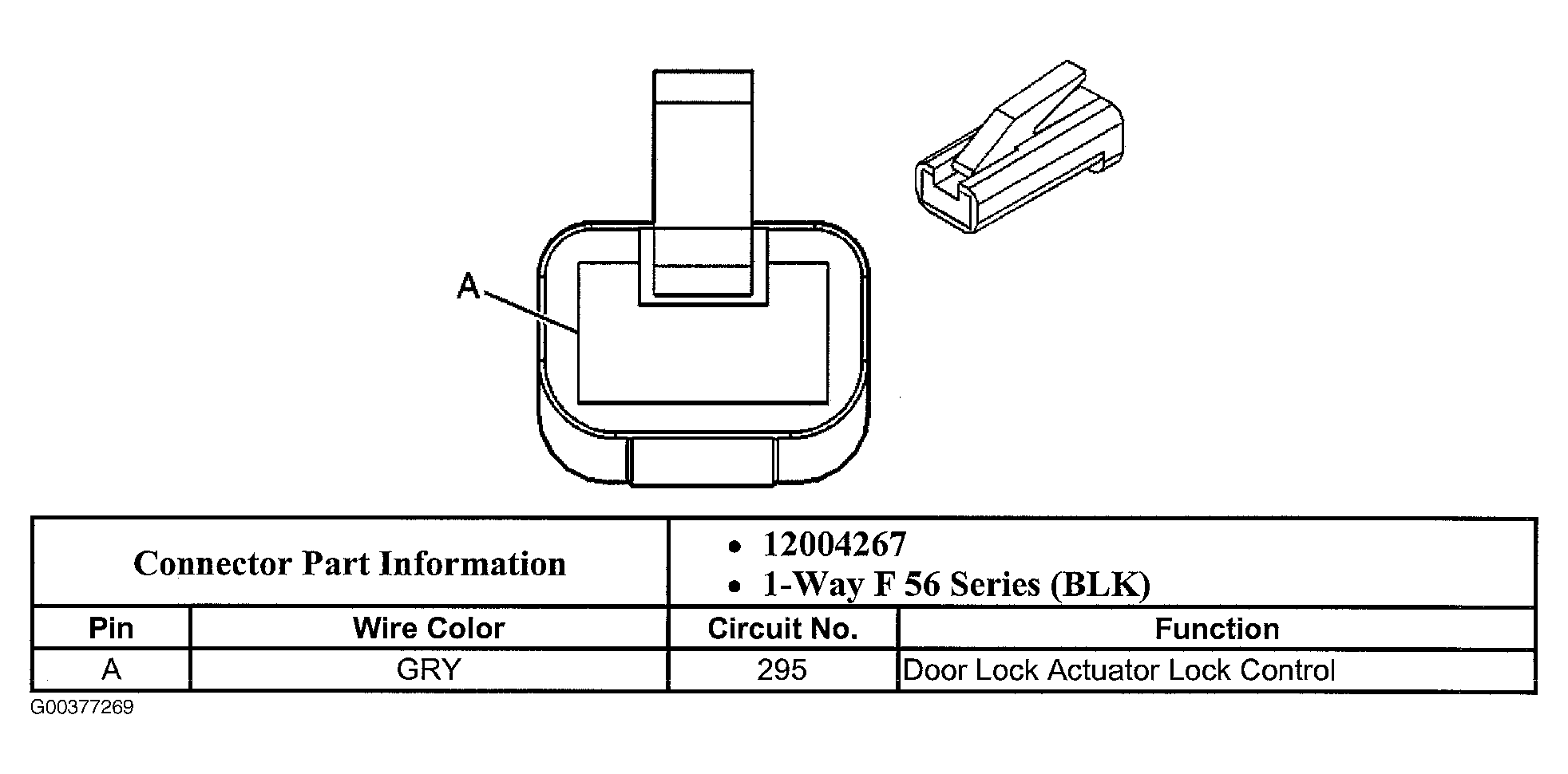

Fig 1: Side Door Contact Plate Connector C1

Courtesy of GENERAL MOTORS CORP.

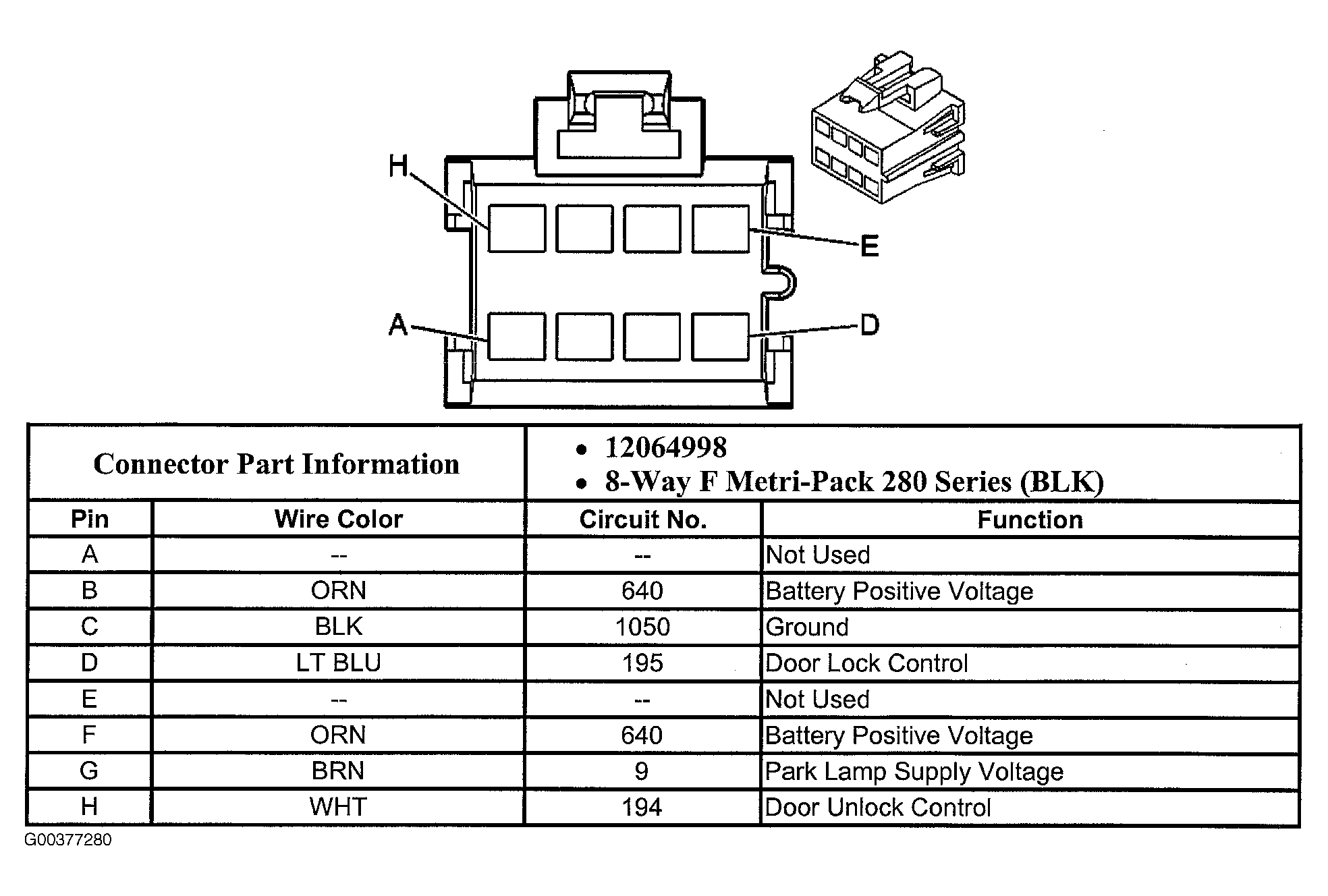

Fig 2: Side Door Contact Plate Connector C2

Courtesy of GENERAL MOTORS CORP.

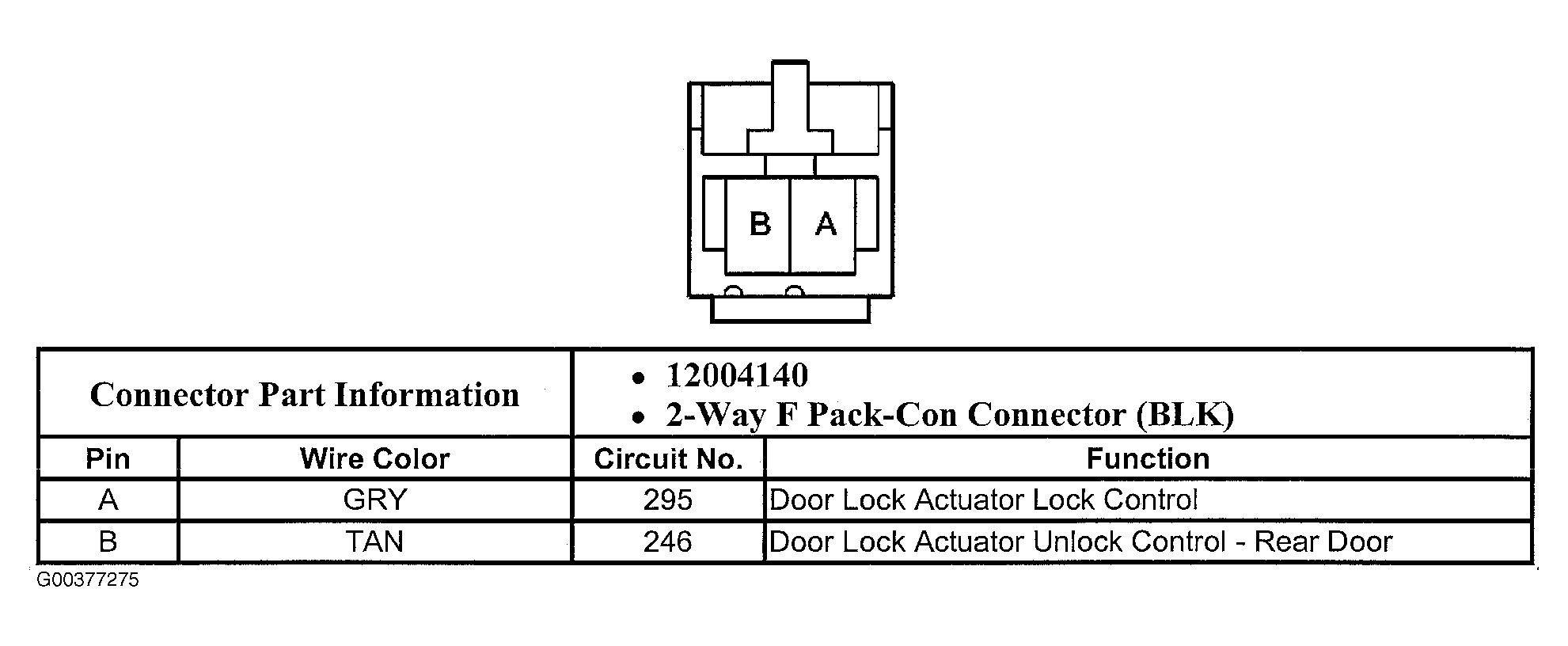

Fig 3: Door Lock Actuator - Driver Connector

Courtesy of GENERAL MOTORS CORP.

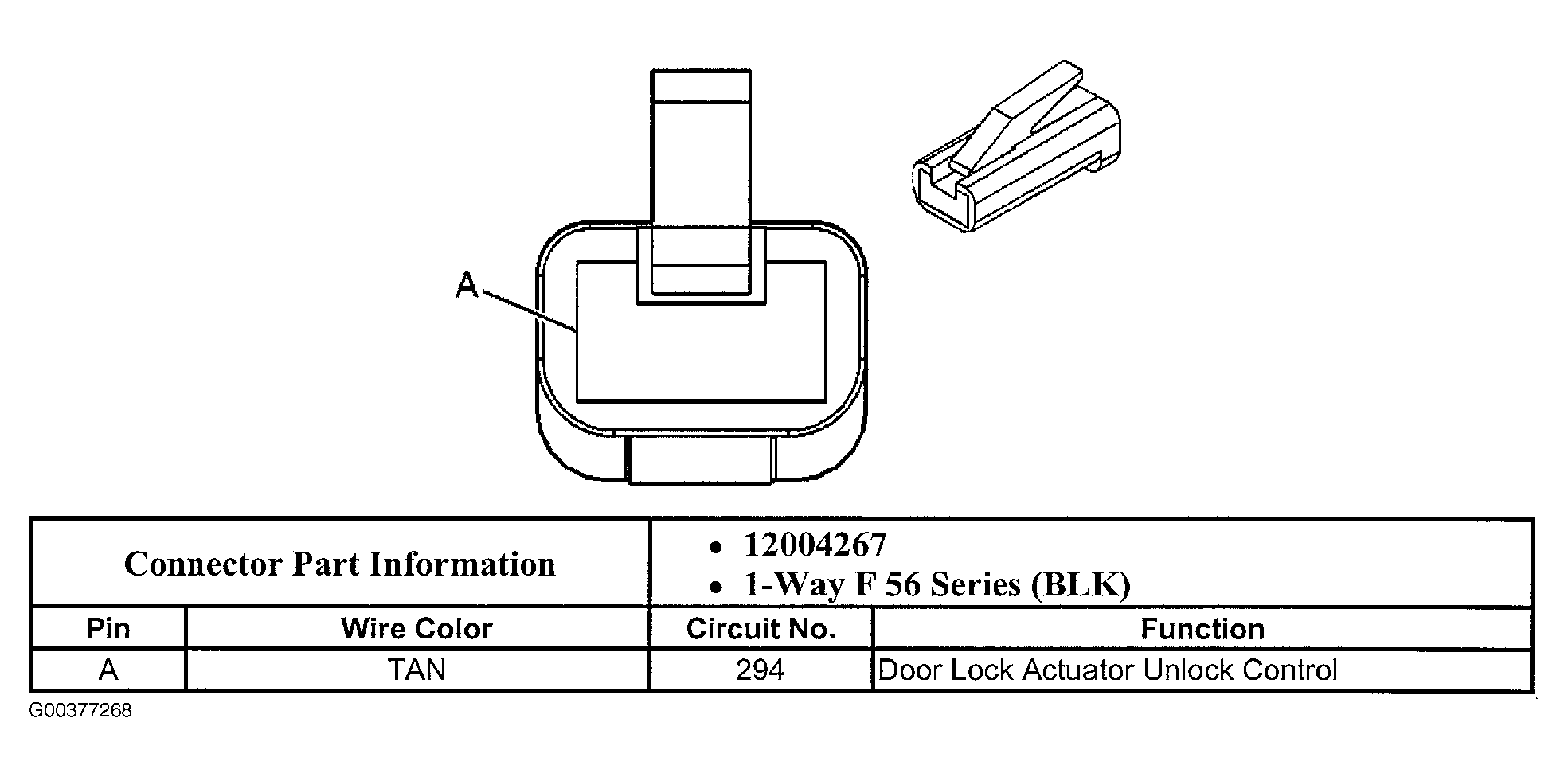

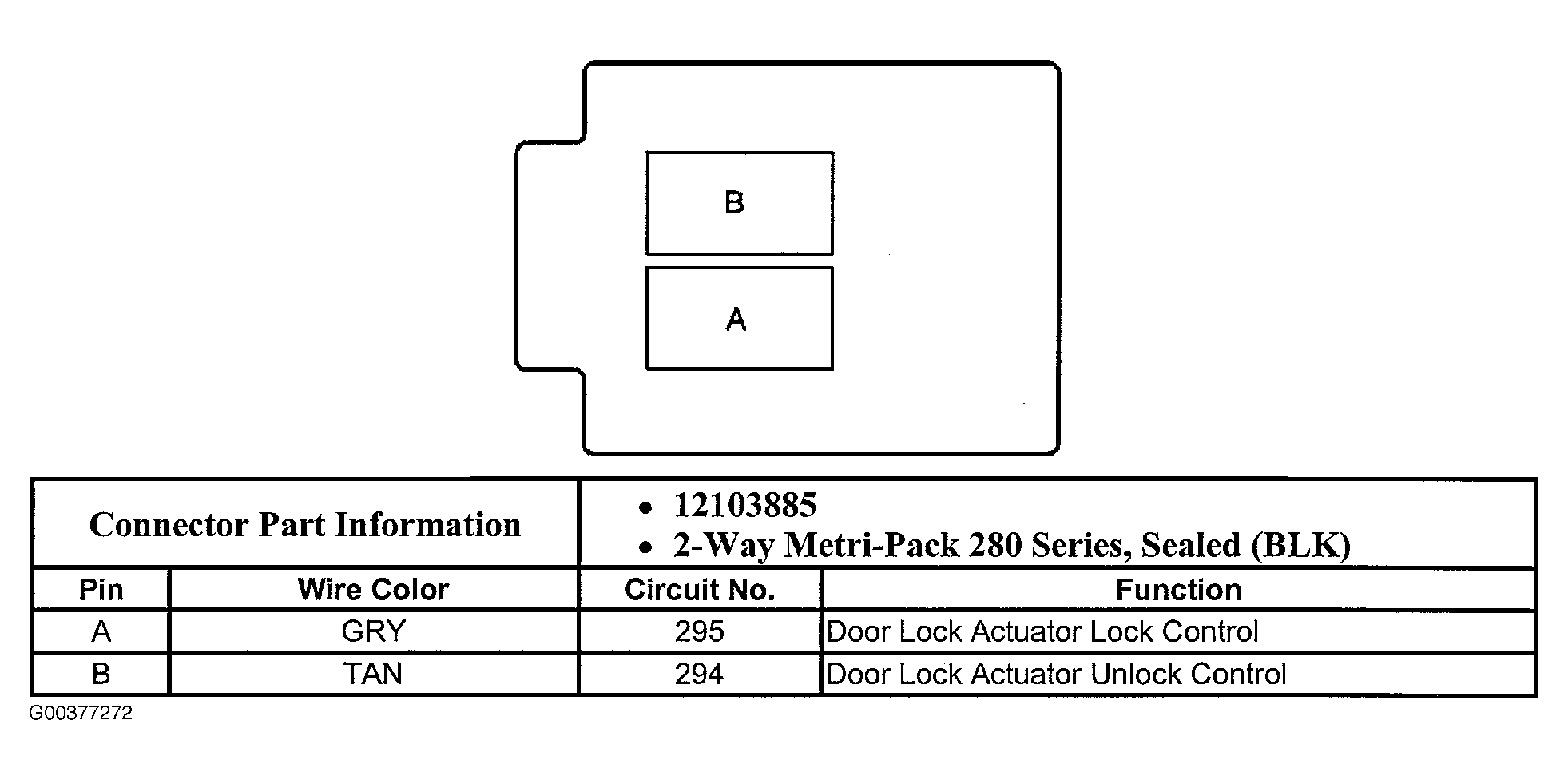

Fig 4: Door Lock Actuator - Front Passenger Connector

Courtesy of GENERAL MOTORS CORP.

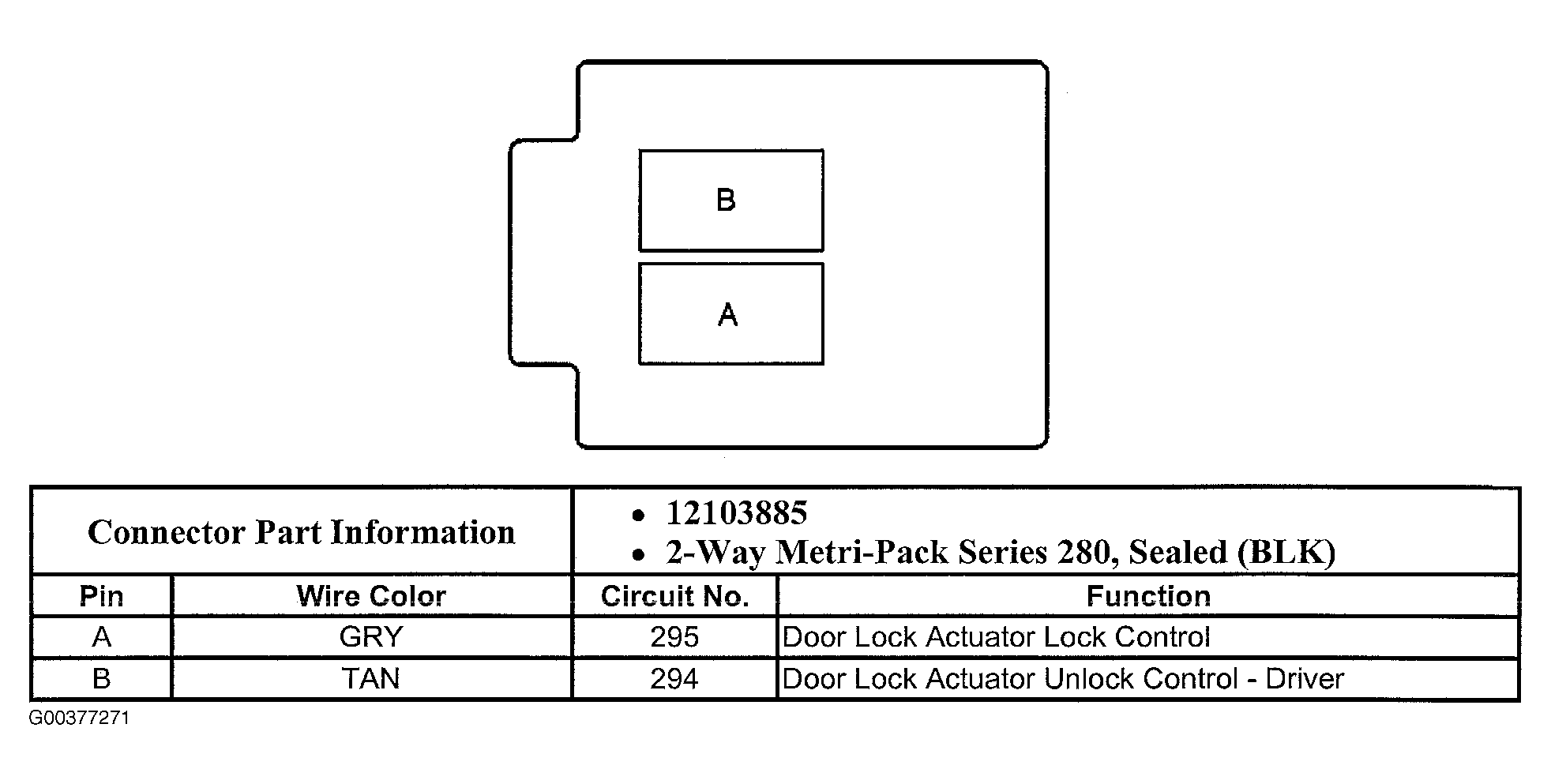

Fig 5: Door Lock Actuator - Rear Connector (W/O E54)

Courtesy of GENERAL MOTORS CORP.

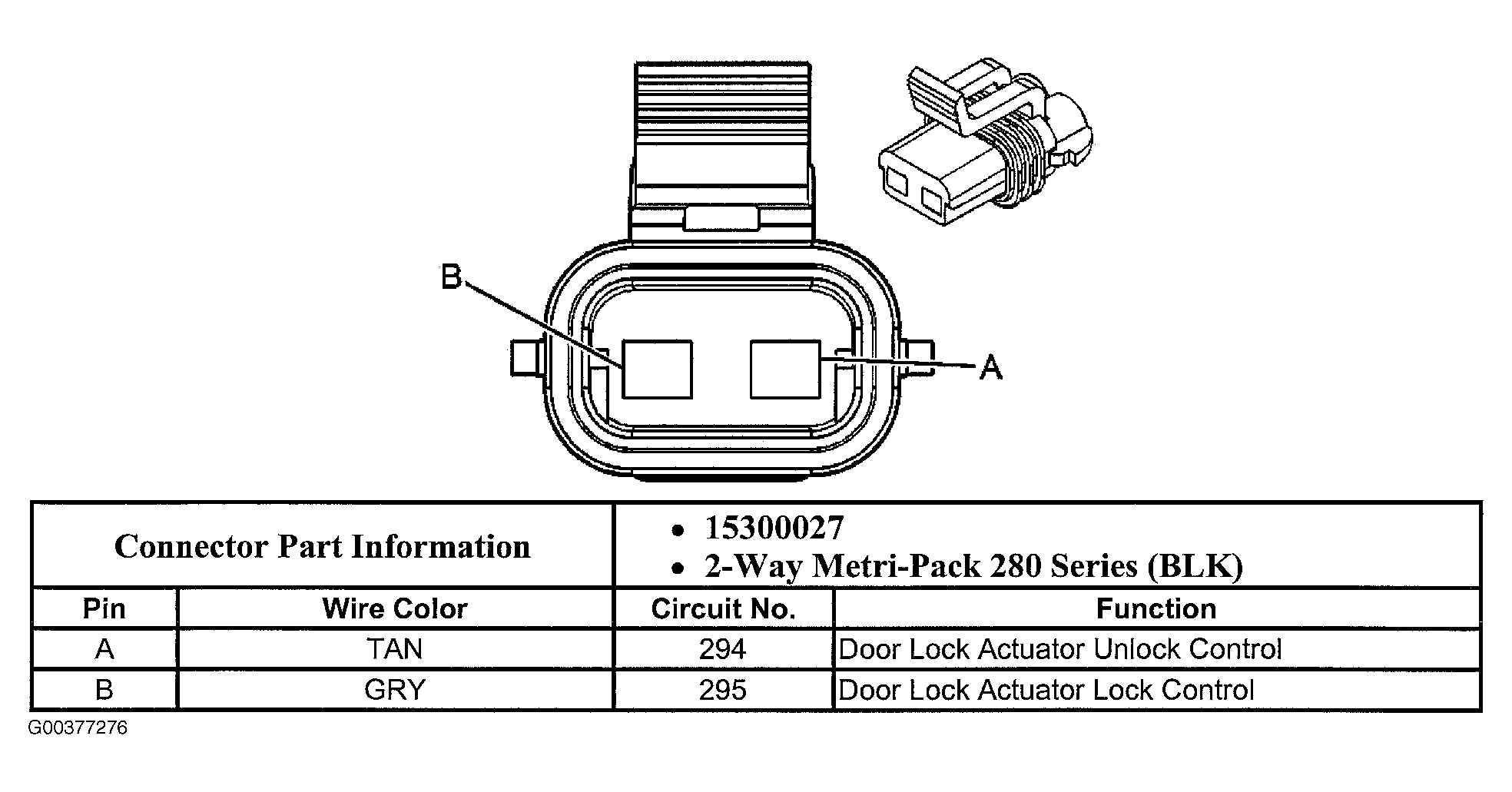

Fig 6: Door Lock Actuator - Rear Connector (W/E54)

Courtesy of GENERAL MOTORS CORP.

Fig 7: Door Lock Actuator - Side Door Connector

Courtesy of GENERAL MOTORS CORP.

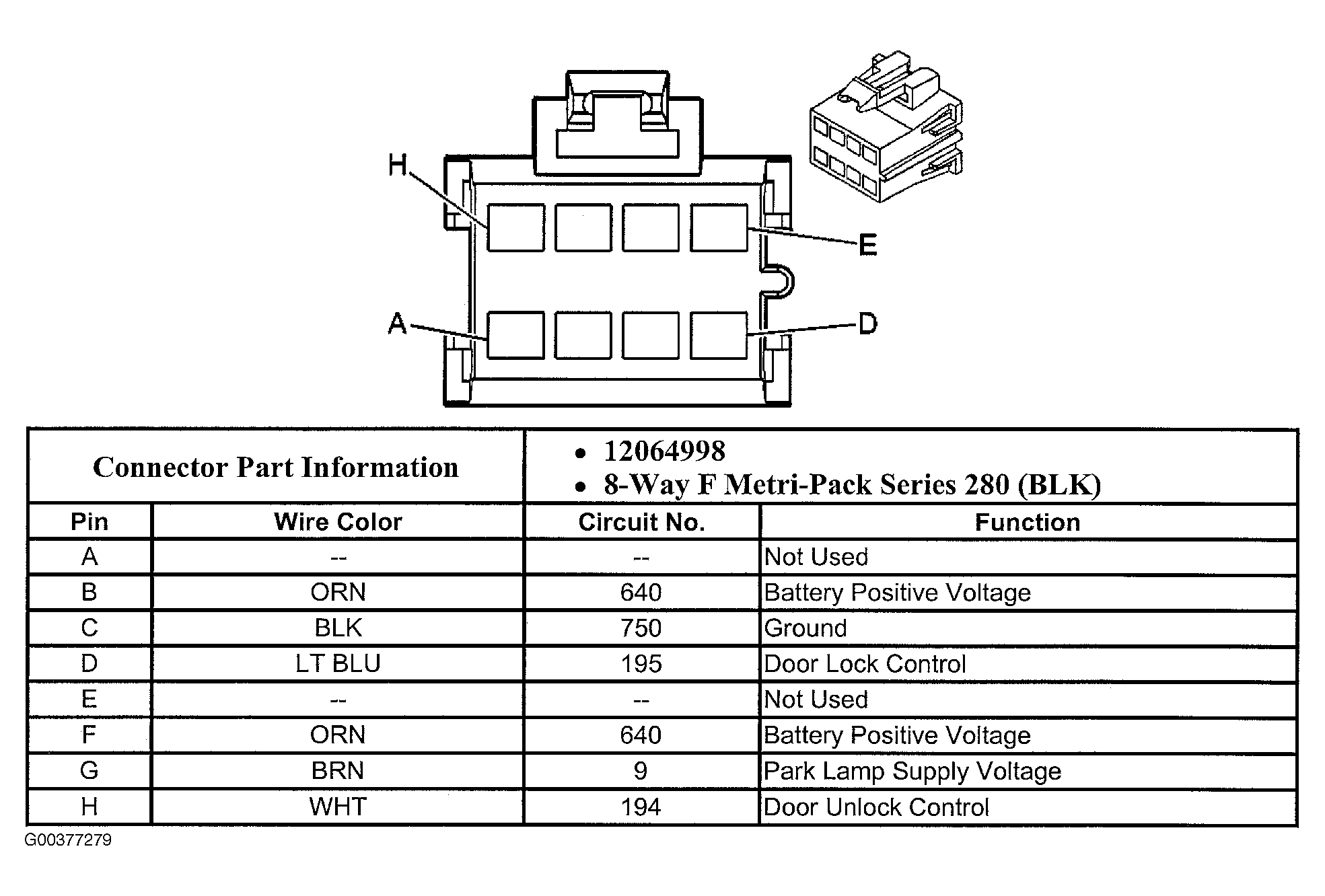

Fig 8: Door Lock Relay Connector

Courtesy of GENERAL MOTORS CORP.

Fig 9: Door Lock Switch - Driver Connector

Courtesy of GENERAL MOTORS CORP.

Fig 10: Door Lock Switch - Front Passenger Connector

Courtesy of GENERAL MOTORS CORP.
