Power Door Systems Component Views

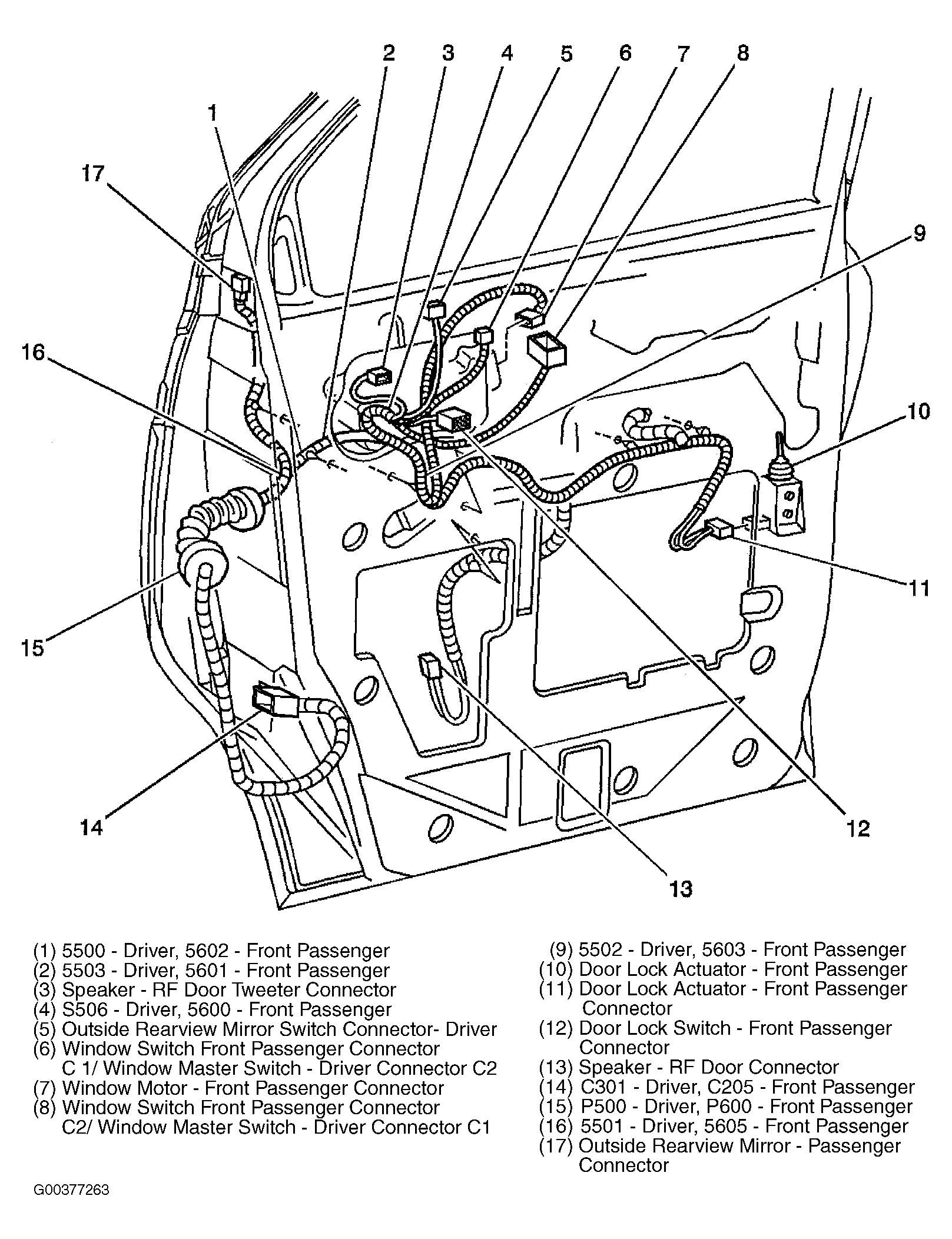

Fig 1: Front Door Wiring (Front Passenger Shown, Driver Opposite)
G00377263Courtesy of GENERAL MOTORS CORP.

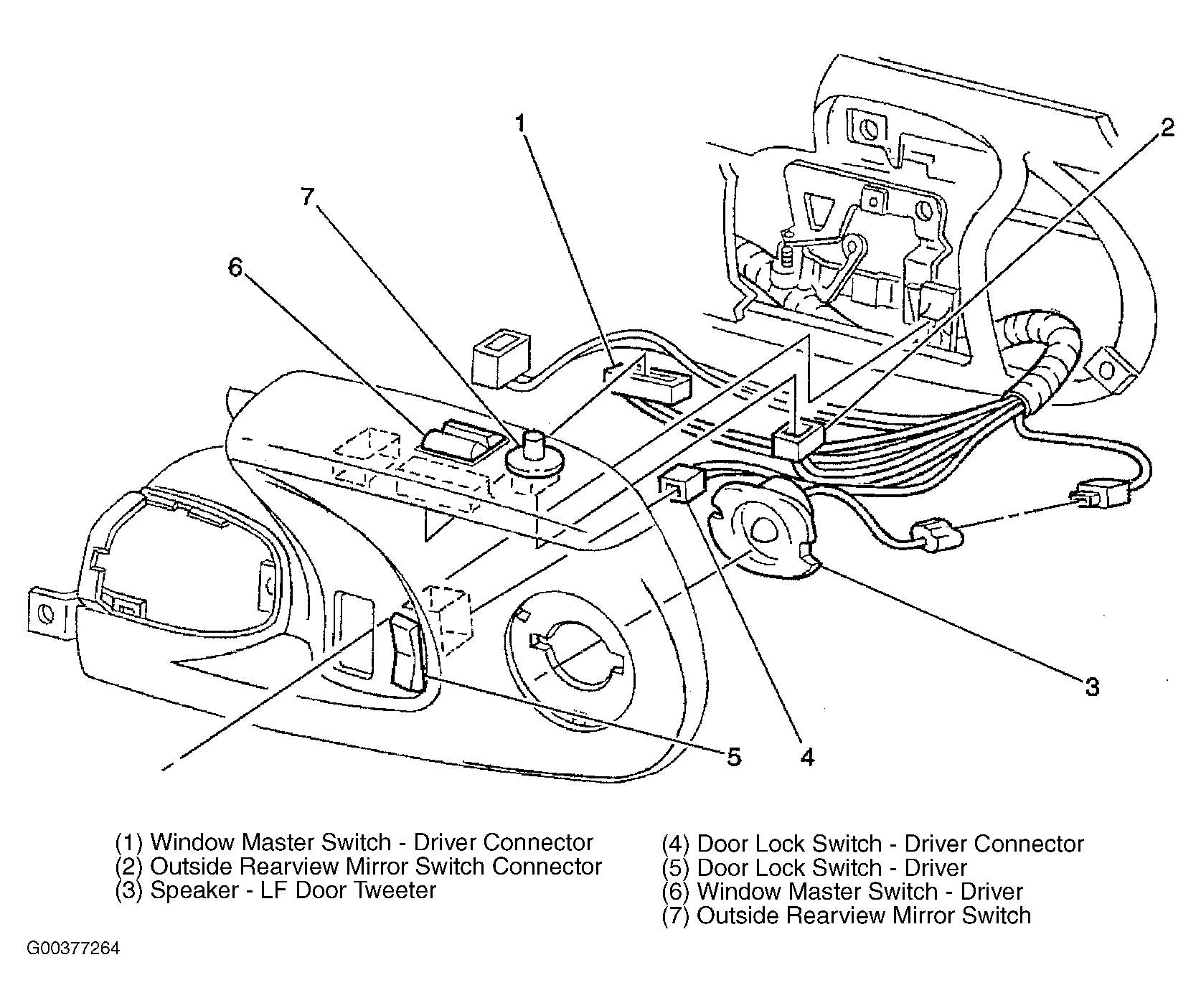

Fig 2: Door Control Switches - Driver
G00377264Courtesy of GENERAL MOTORS CORP.
