Transaxle 20-Pin In-Line Connector End View

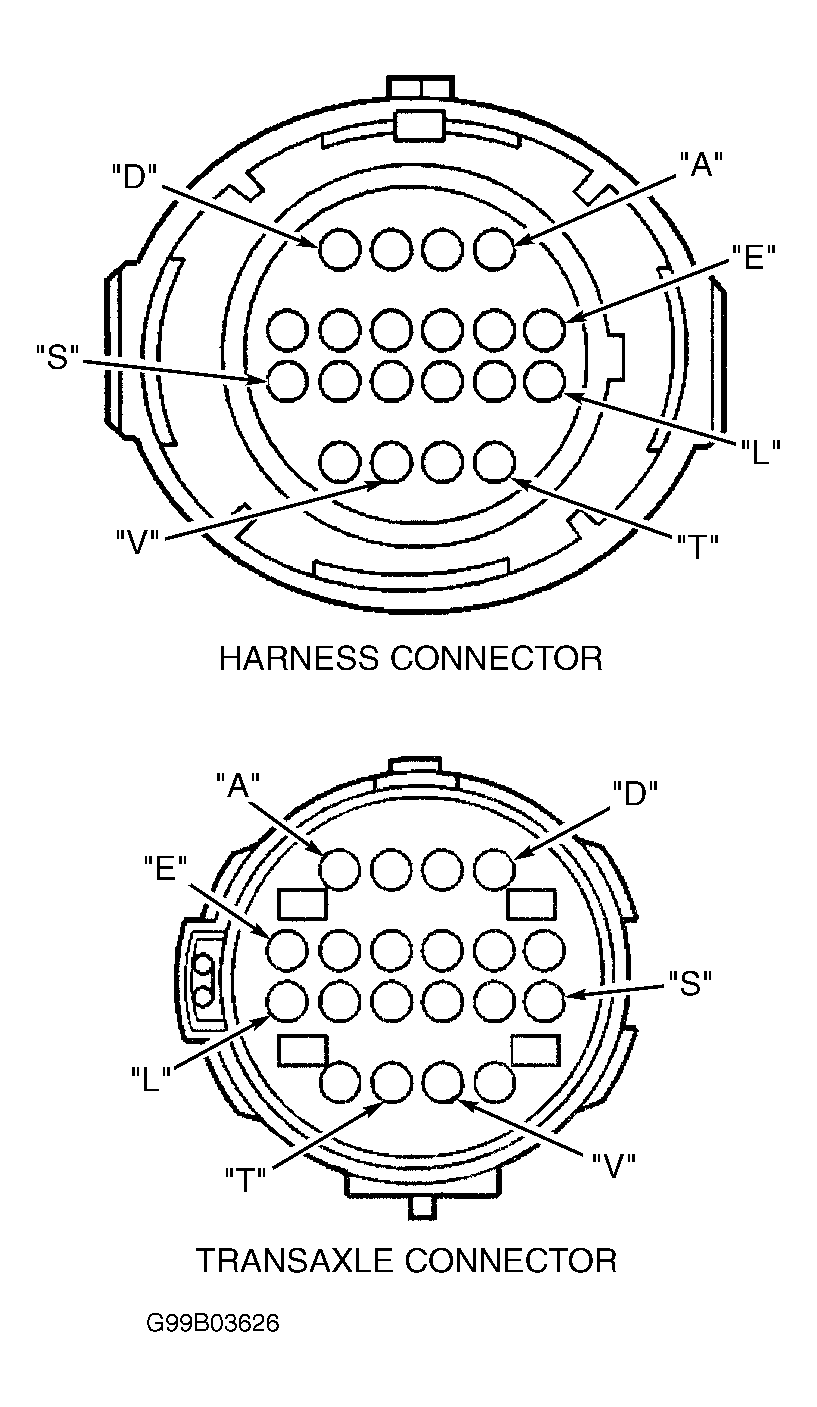

Fig 1: Identifying Transaxle 20-Pin In-Line Connector Terminals

G99B03626

Courtesy of GENERAL MOTORS CORP.
