Home
>>
Chevrolet
>>
2000
>>
Tracker 4D Utility, RWD, Standard
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Communication Devices
>>
Data Link Communications System
>>
Connector Identification
Connector Identification

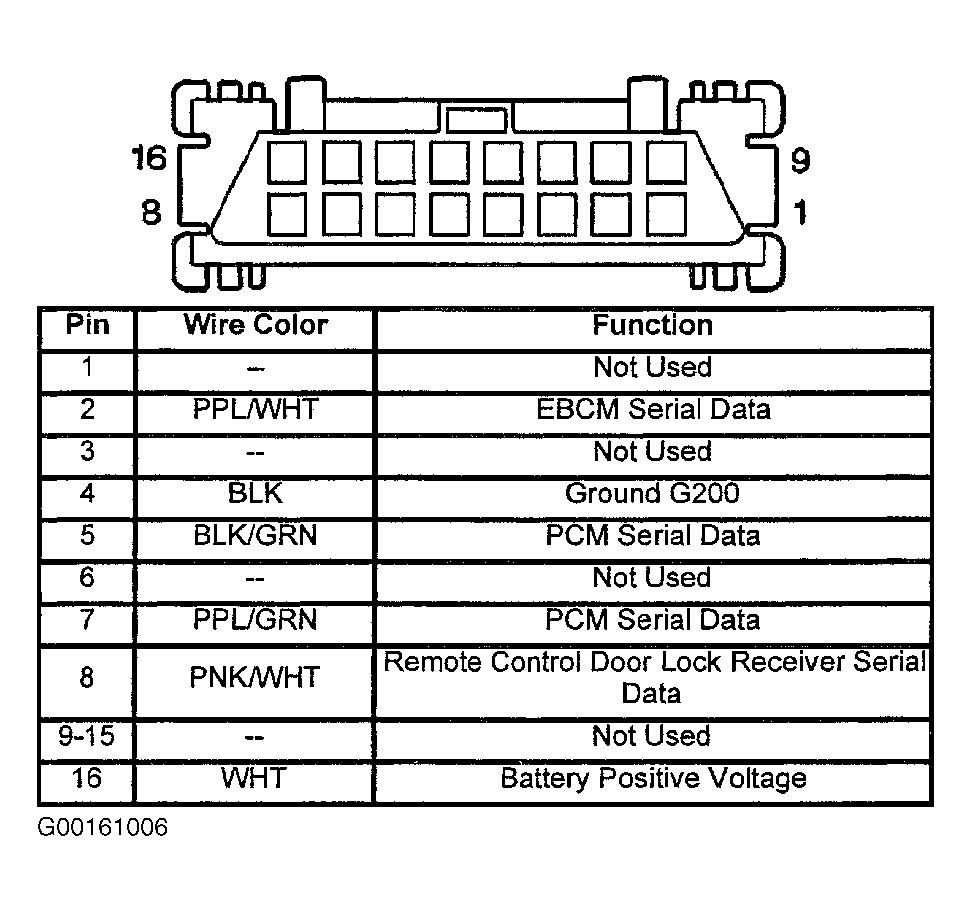

Fig 1: Identifying DLC Terminals
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
