Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra and 2002 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the battery tray.
    NOTE: Refer to Fastener Notices in CAUTIONS & NOTICES .
  2. Install the battery tray bolts to the following:
    • Fender inner panel
    • Battery tray reinforcement
    • Battery tray support

      Tighten

      Tighten the battery tray bolts to 9 N.m (80 lb in).

  3. Install the battery. Refer to Battery Replacement  .

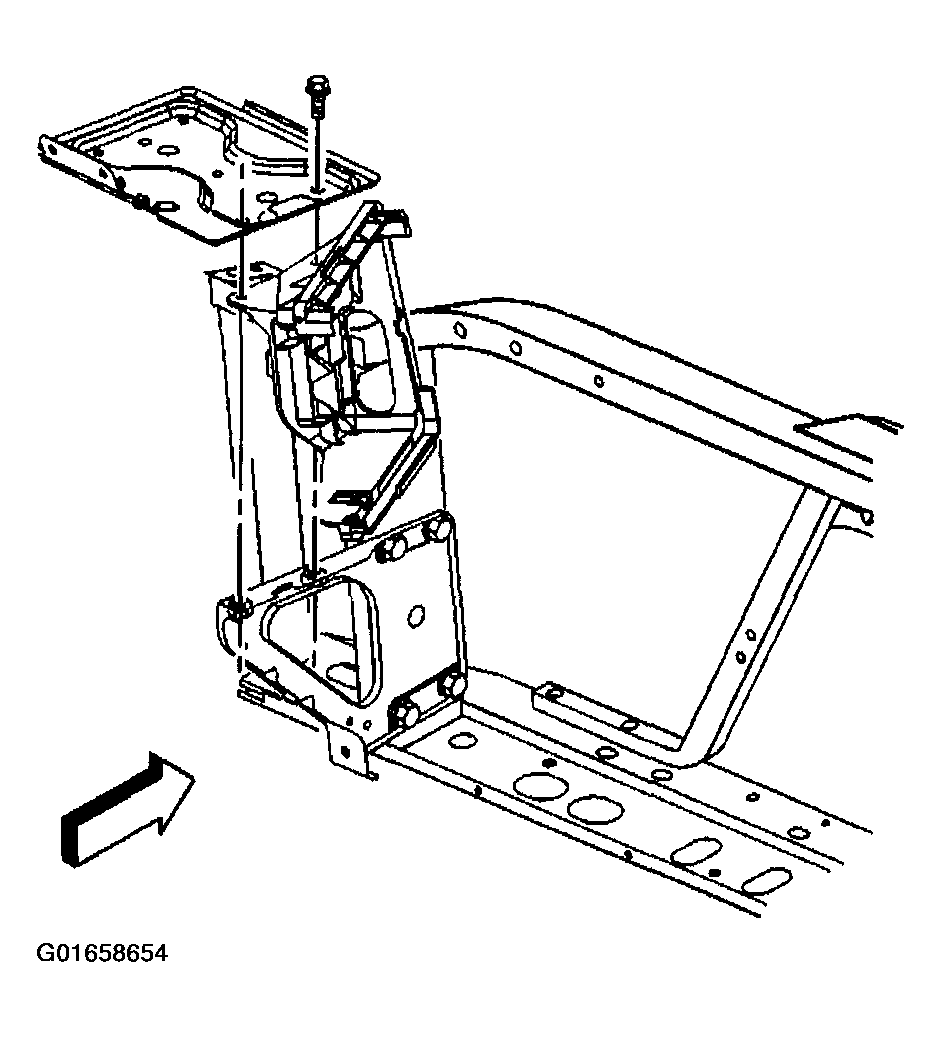

    Fig 1: Battery Tray Replacement
    G01658654Courtesy of GENERAL MOTORS CORP.
