Temperature Control Cable

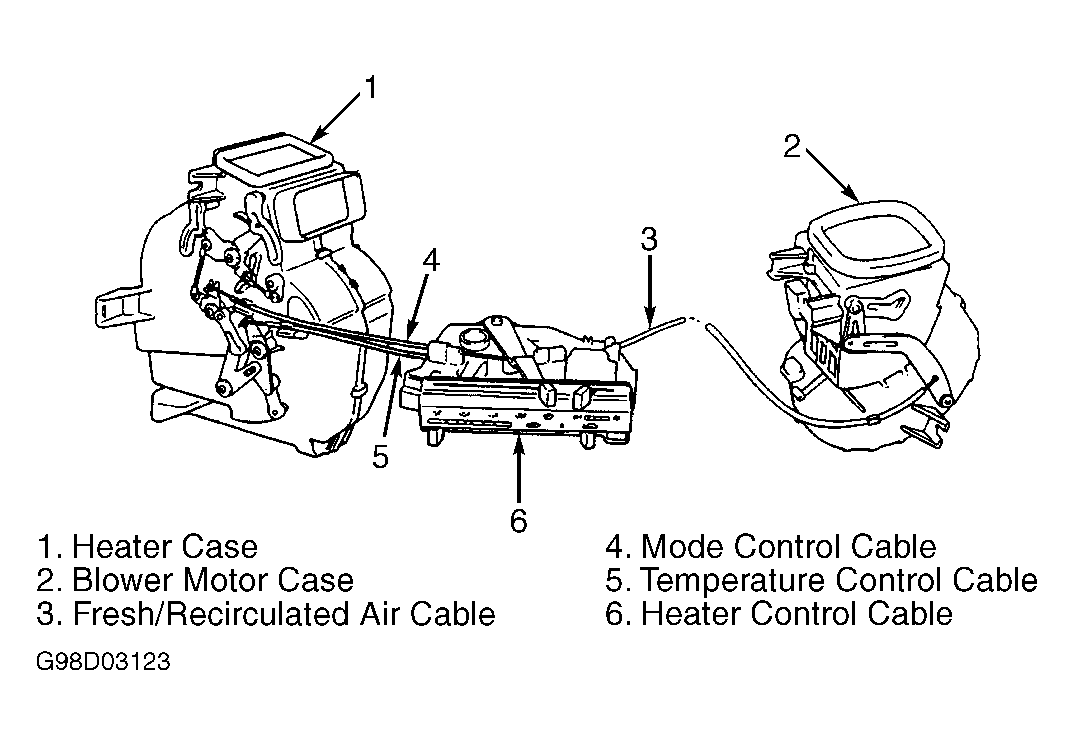

Disconnect temperature control cable from clip and door at heater case. Set temperature lever to full cold position. At heater case, push door lever fully forward (counterclockwise) and attach cable with cable clip. See Figure. Check temperature lever for smooth operation and ensure that it stops in correct spots.
