Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the wiper motor cover to the wiper motor.
    NOTE: Refer to FASTENER NOTICE
  2. Install the wiper motor cover screws.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  3. Install the wiper drive system module. Refer to Wiper Drive System Module Replacement
  4. Install the air inlet grille panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT
  5. Operate the windshield wipers and inspect for proper operation.

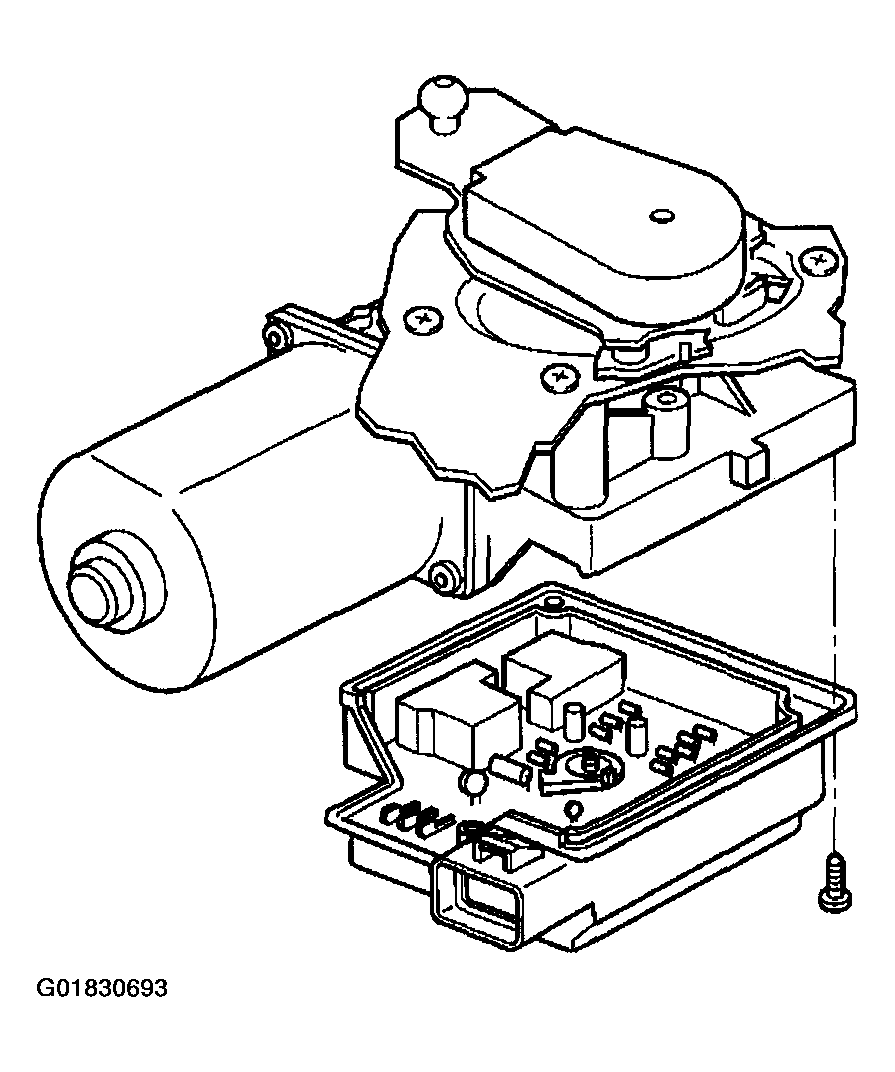

    Fig 1: Installing Wiper Motor Cover & Wiper Motor Cover Screws
    G01830693Courtesy of GENERAL MOTORS CORP.
