Diagnostic Procedures

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

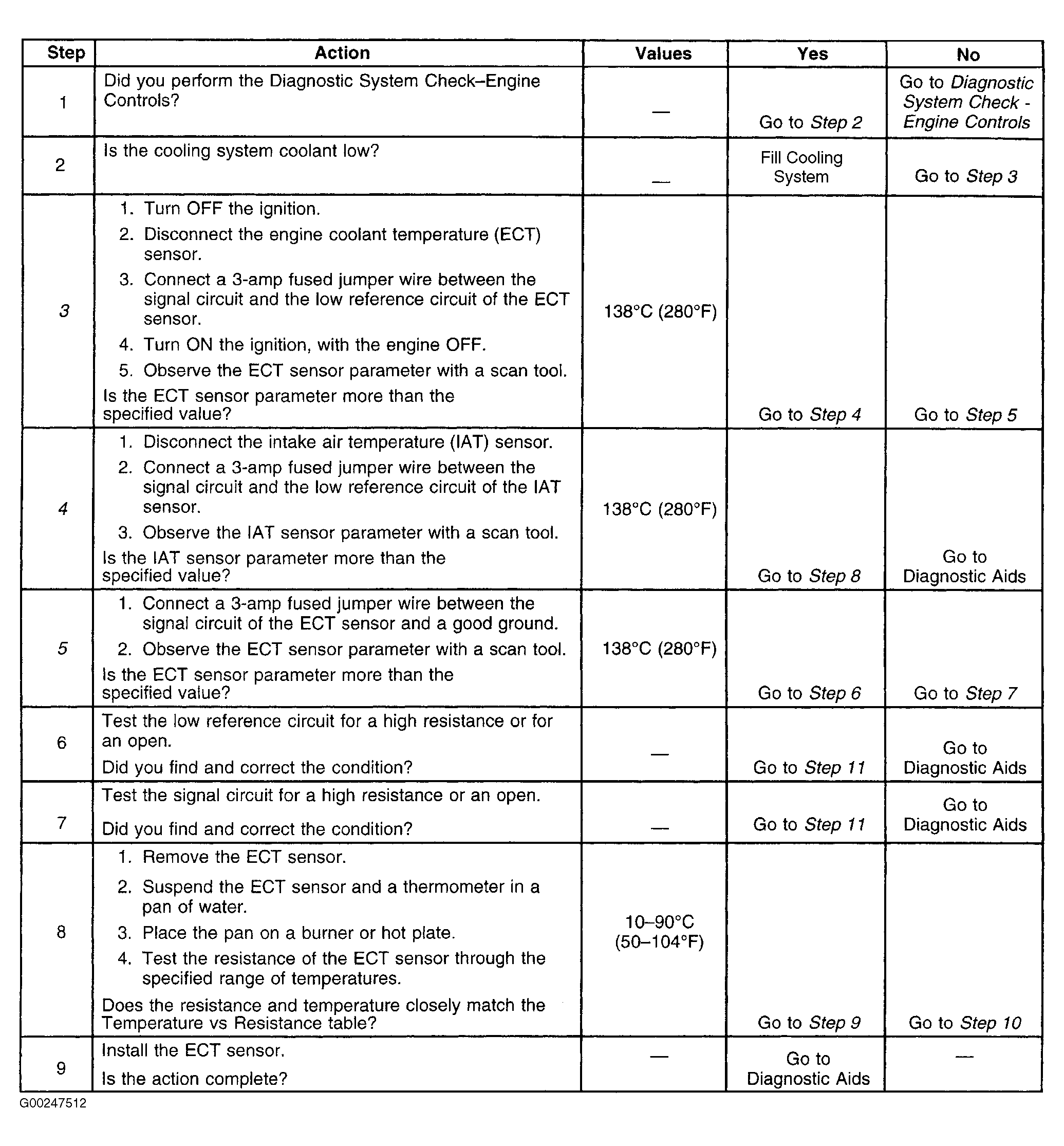

Fig 1: DTC P0116: Engine Coolant Temperature Sensor Circuit Performance (Steps 1-9)
G00247512Courtesy of GENERAL MOTORS CORP.

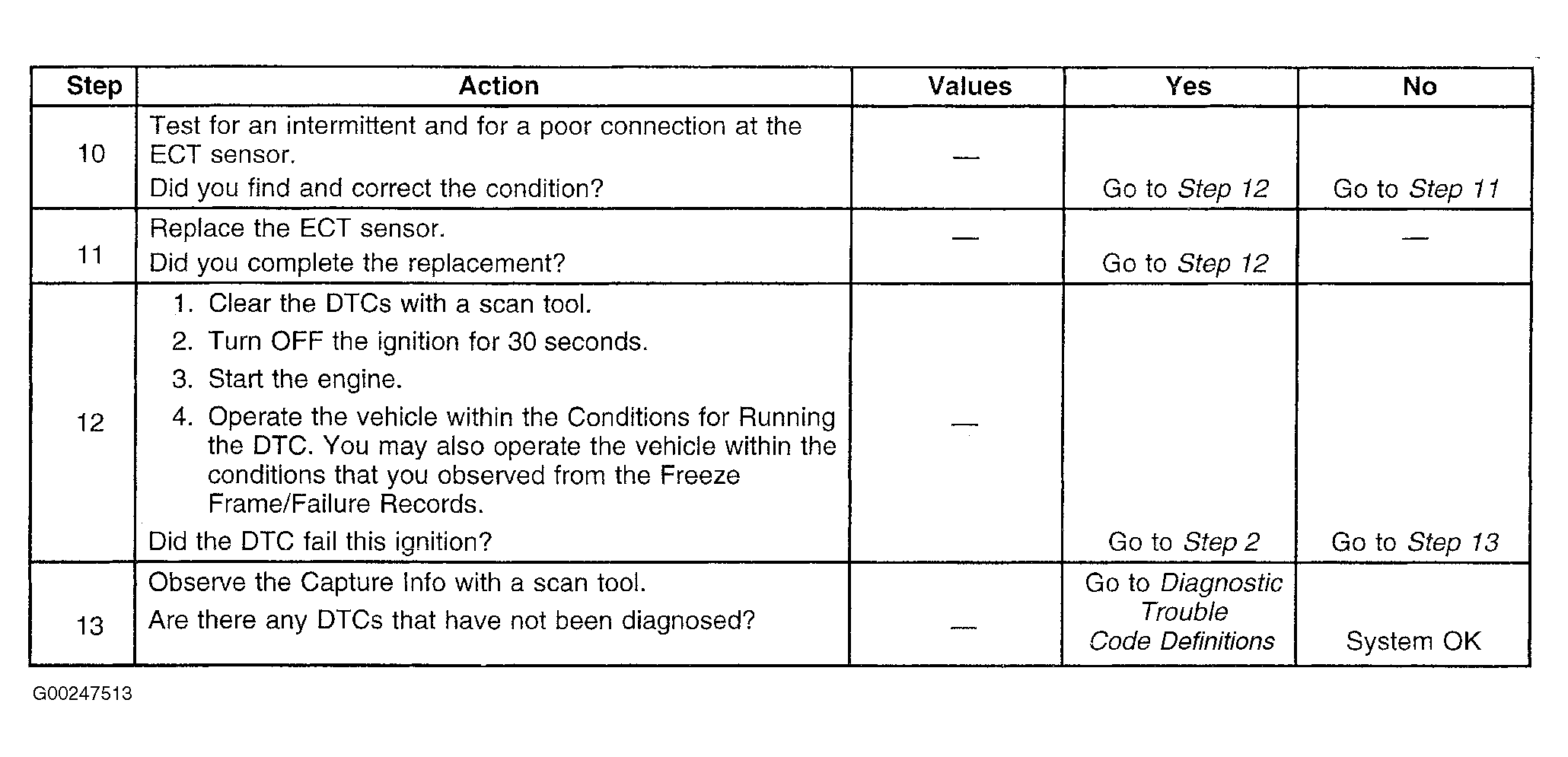

Fig 2: DTC P0116: Engine Coolant Temperature Sensor Circuit Performance (Steps 10-13)
G00247513Courtesy of GENERAL MOTORS CORP.
